Brake Pressure Modulator Valve Bracket Replacement

Brake Pressure Modulator Valve Bracket Replacement

Removal Procedure

1. Place the ignition switch in the OFF position.
2. Remove the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement (Accessory Wiring Junction Block Replacement).




3. Remove the brake pressure modulator valve (BPMV) bolt (1).





Note: Do not pry on the accumulator caps on the underside of the BPMV.

4. Without disconnecting the brake pipe fittings, carefully lift the BPMV assembly (1) upward to release the mounting pins from the BPMV bracket insulators.
5. Position the BPMV assembly aside and secure with heavy mechanics wire or equivalent.

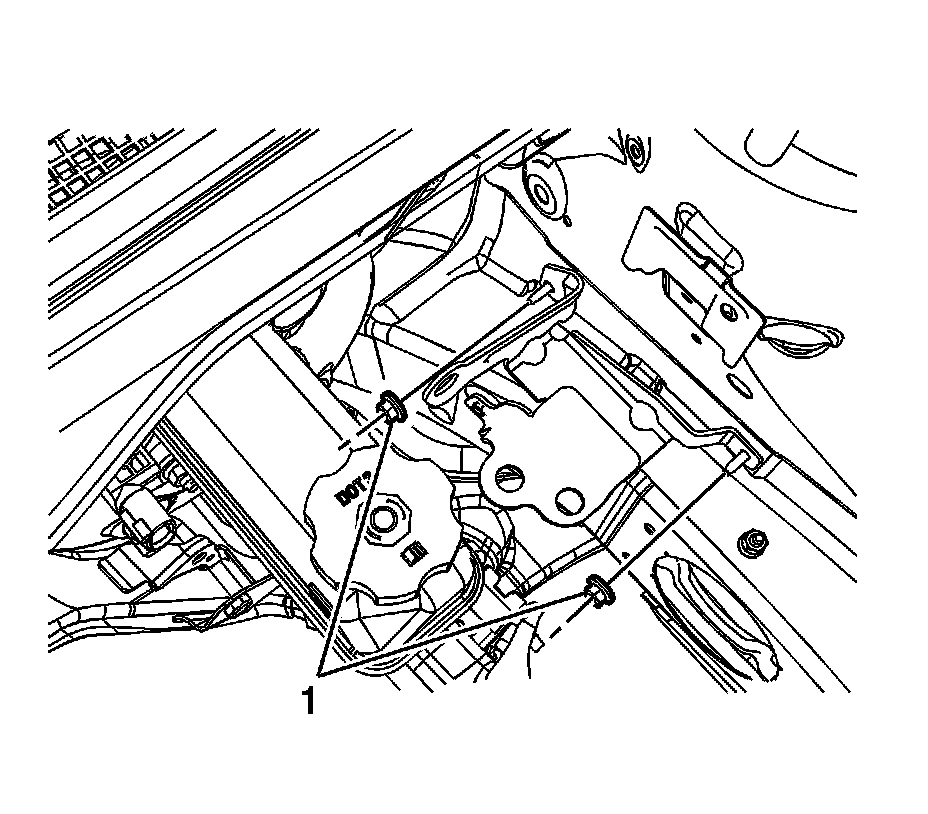

6. Remove the 2 BPMV bracket nuts (1).

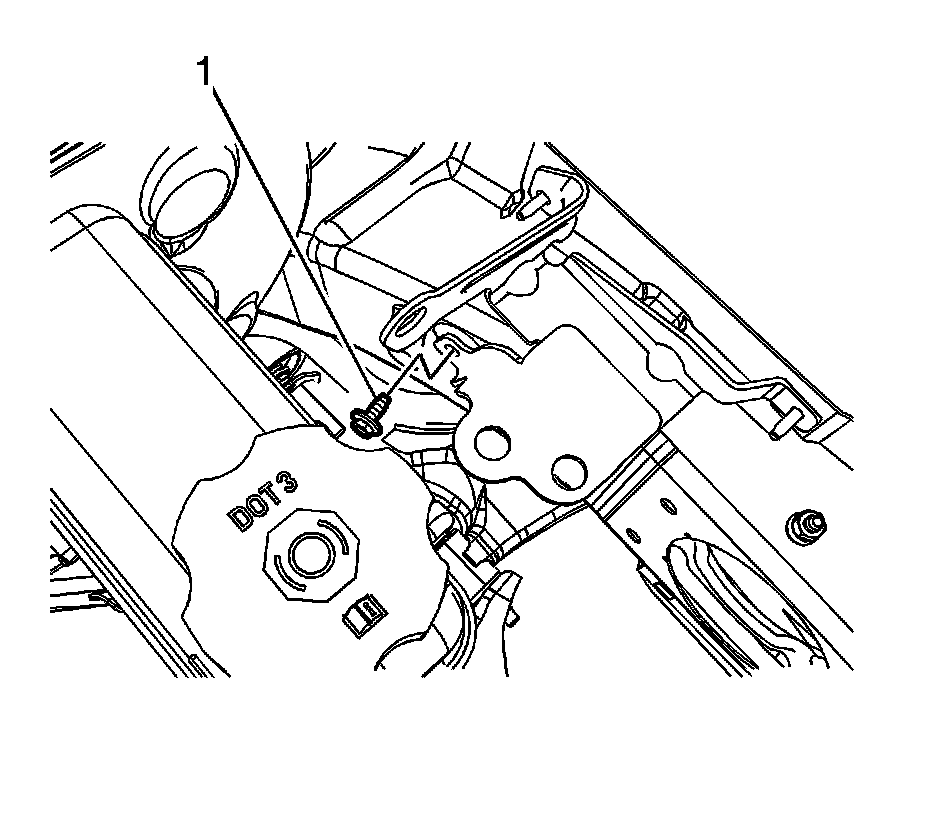

7. Remove the BPMV bracket bolt (1).

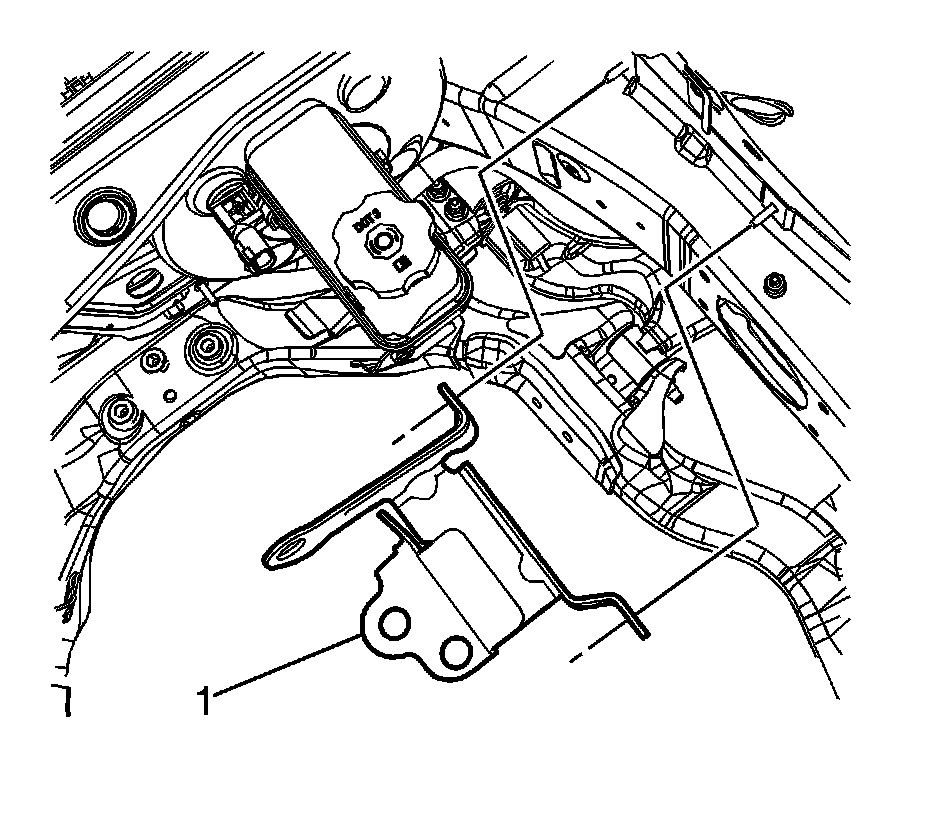

8. Remove the BPMV bracket (1).
9. Inspect the insulators for damage and replace, if necessary.

Installation Procedure




1. Install the BPMV bracket (1).





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the BPMV bracket bolt (1) and tighten to 10 Nm (89 lb in).




3. Install the BPMV bracket nuts (1) and tighten to 10 Nm (89 lb in).




4. Carefully position the BPMV assembly (1) to the BPMV bracket insulators.




5. Install the BPMV bolt (1) and tighten to 10 Nm (89 lb in).
6. Install the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement (Accessory Wiring Junction Block Replacement).
