Components

Power Sliding Door Control Unit - This unit receives inputs from the switches and sensors in the sliding door system. It outputs to the slide motor, release motor, and closer motor to control the movement of the doors. It also controls the sliding door indicator and beeper.

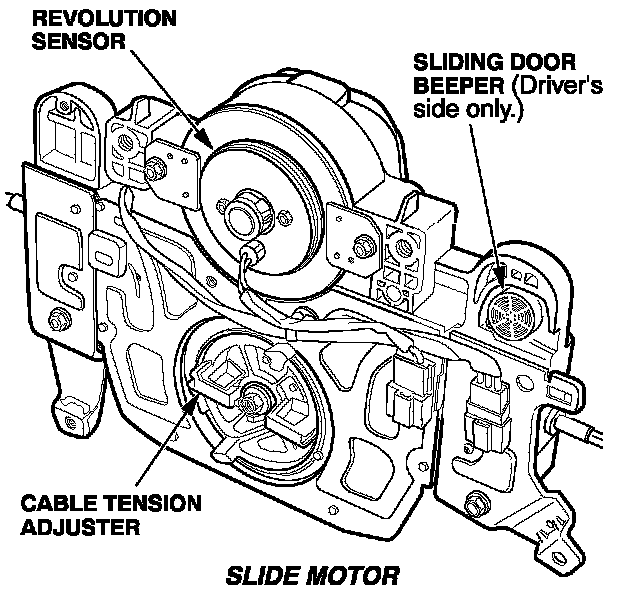

Slide Motor - This motor moves the door in both directions. It includes a revolution sensor and a cable tension adjuster.





Revolution Sensor - As the slide motor moves the door, the revolution sensor generates pulses that are sent to the power sliding door control unit. The unit uses these pulses to determine the speed and position of the door as it moves.

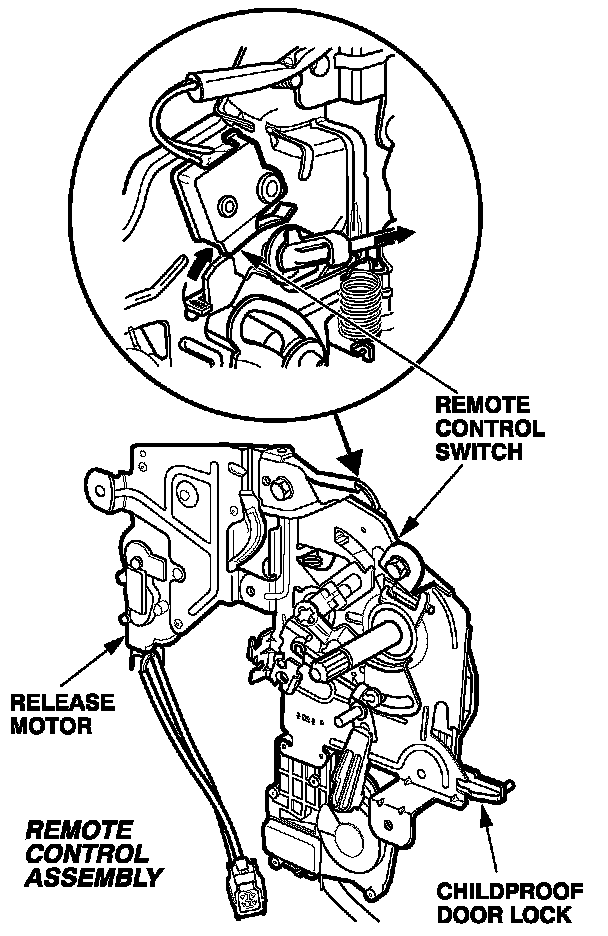

Remote Control Assembly - This assembly operates cables that release the door latch and activate the fail-safe lever. The assembly includes the release motor, the remote control switch, the lock actuator, the door lock, the child-proof lock, and the linkage to the inside and outside door handles.

^ Release Motor - When the dashboard switch, the remote transmitter, or either the inside or outside door handle is used to open the door, this motor pulls on the release cable to release the door latch, allowing the door to open.





^ Remote Control Switch - This switch signals the power sliding door control unit that someone is trying to open the door with the inside or outside door handle.

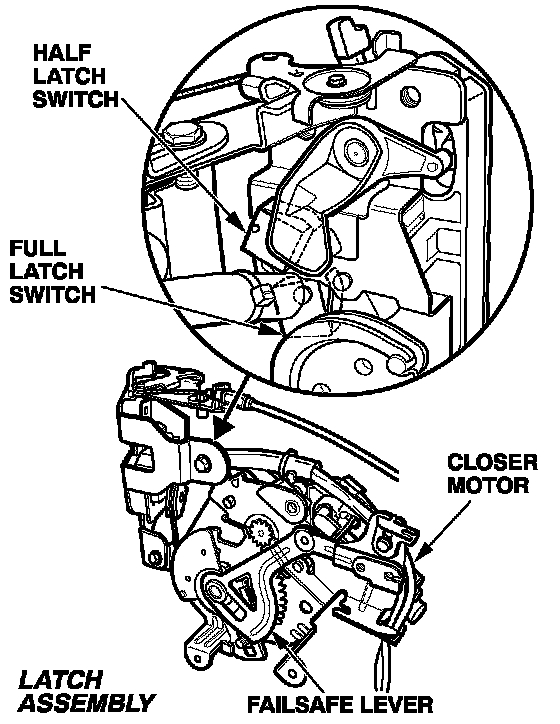

^ Latch Assembly - This assembly mechanically latches the door in the closed position. It contains the closer motor, the half-latch switch, the full-latch switch, and the fail-safe lever.

^ Closer Motor - This motor moves the latch from the half-latched to the fully latched position to complete closing the door.





^ Half-Latch Switch - This switch signals the power sliding door control unit that the door has reached the half-latched position.





^ Full-Latch Switch - This switch signals the power sliding door control unit that the door has reached the fully latched position the door is completely closed.





^ Fail-safe Lever - This lever mechanically disconnects the closer motor from the door latch. See Fail-safe Emergency Stop Operation in this service bulletin.

Lower Roller Lever - This lever is moved by the lower roller lever cable. The lever contacts the sliding door handle switch.

Sliding Door Handle Switch - This switch works only when the door is fully open. It is activated by the lower roller lever, and signals the power sliding door control unit that someone has moved either the inside or outside door handle to close the door.

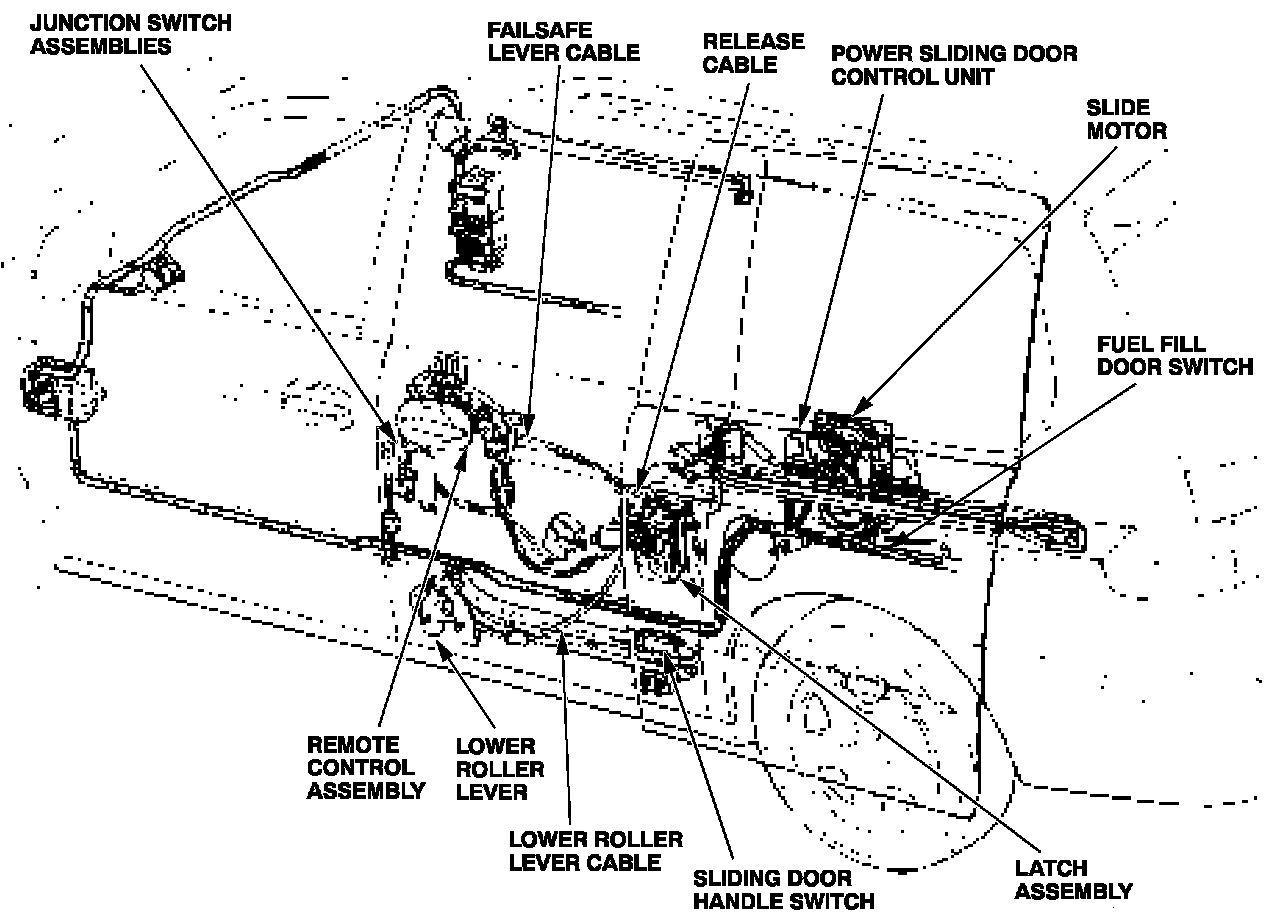

Junction Switch Assemblies - These are located in the front of each door and in the B pillars. They are the only electrical connection between the components in the door and the power sliding door control unit when the door is closed. There is no electrical connection when the door is open.

Keyless Receiver Unit - This unit is to the right of the glove box. It receives the door lock/unlock and sliding door activation signals from the remote transmitters. When either the left sliding door or right sliding door button is pushed on the remote transmitter, the receiver unit sends a signal to the appropriate power sliding door control unit.

NOTE:
The doors will not operate with the remote transmitter when the key is in the ignition switch.
