Air Conditioning Switch: Service and Repair
Rear Heater-A/C Main Switch Removal and Installation 1.
Remove the center panel with the rear heater-A/C main switch.
2.

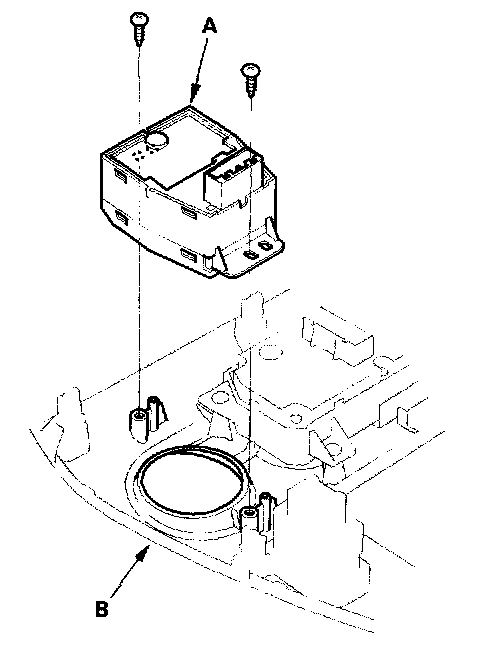

Remove the self-tapping screws and the rear heater-A/C main switch (A) from the center panel (B).
3.
Install the main switch in the reverse order of removal. After installation, operate the main switch controls to see whether it works properly.
