Access Cover: Service and Repair
ENGINE ROOM COVER REMOVAL CAUTION: Do not damage or scratch cover when installing or removing.
^

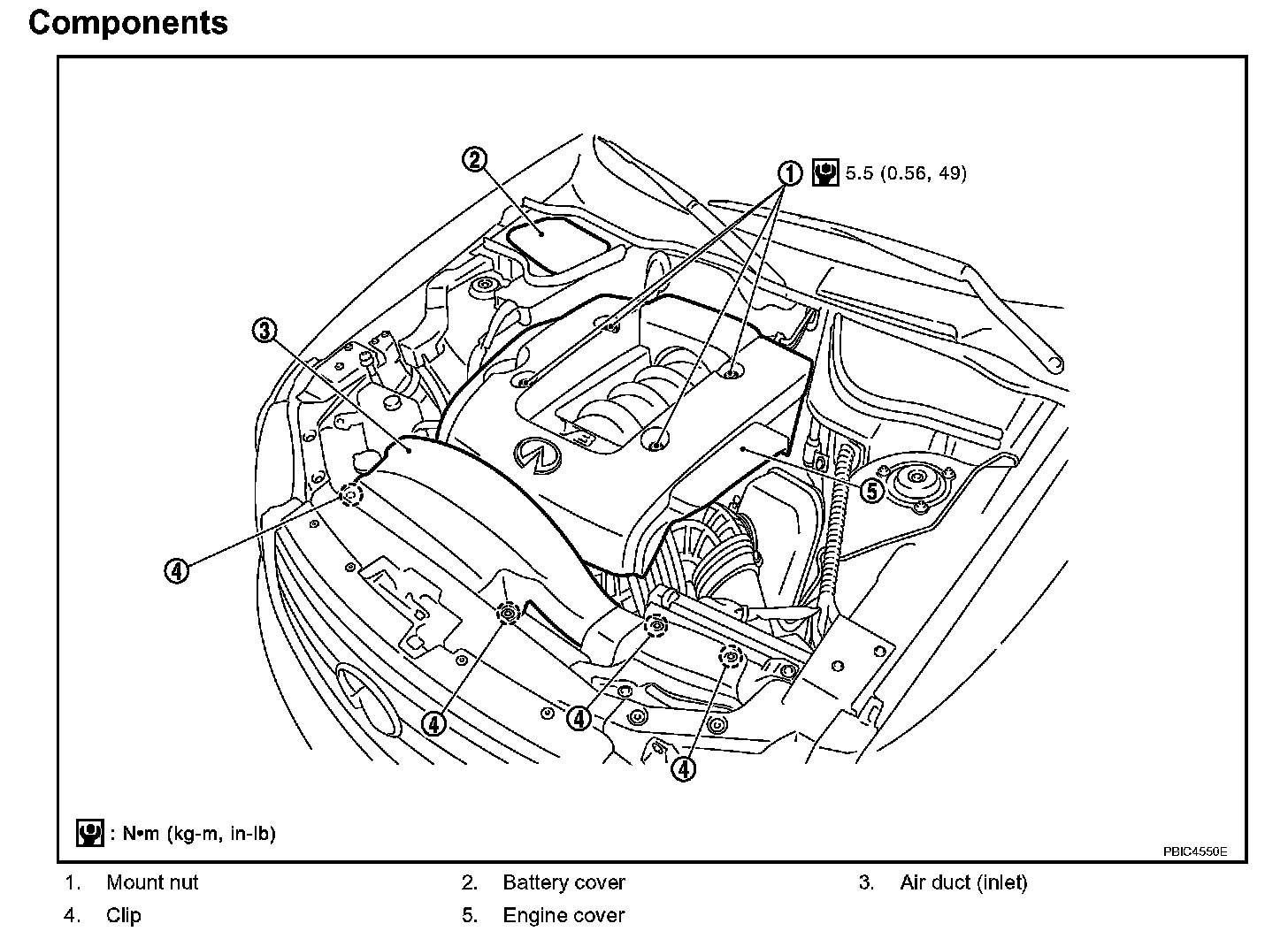

Major parts and inspection points under each cover are as follows; (numbered as in the figure)
1: Upper side of engine assembly and power steering reservoir tank
2: Relay and battery
3: Engine assembly front side,
drive belts and cooling fan
INSTALLATION Install in the reverse order of removal.
