Data Monitor

Data Monitor
OPERATION PROCEDURE
1. After turning ignition switch OFF, perform CONSULT-II Starting Procedure. Refer to GI-38, CONSULT-II Start Procedure. Reading and Clearing Diagnostic Trouble Codes
2. Turn ignition switch ON.
3. Touch ABS, DATA MONITOR in order on the CONSULT-III screen.

CAUTION: When START (NISSAN BASED VHCL) is touched immediately after starting engine or turning on ignition switch, ABS might not be displayed in the SYSTEM SELECTION screen. In this case, repeat the operation from step 1.

4. Return to the Monitor Item Selection screen, and touch ECU INPUT SIGNALS, MAIN SIGNALS or SELECTION FROM MENU. Refer to the following information.
5. When START is touched, the data monitor screen is displayed.

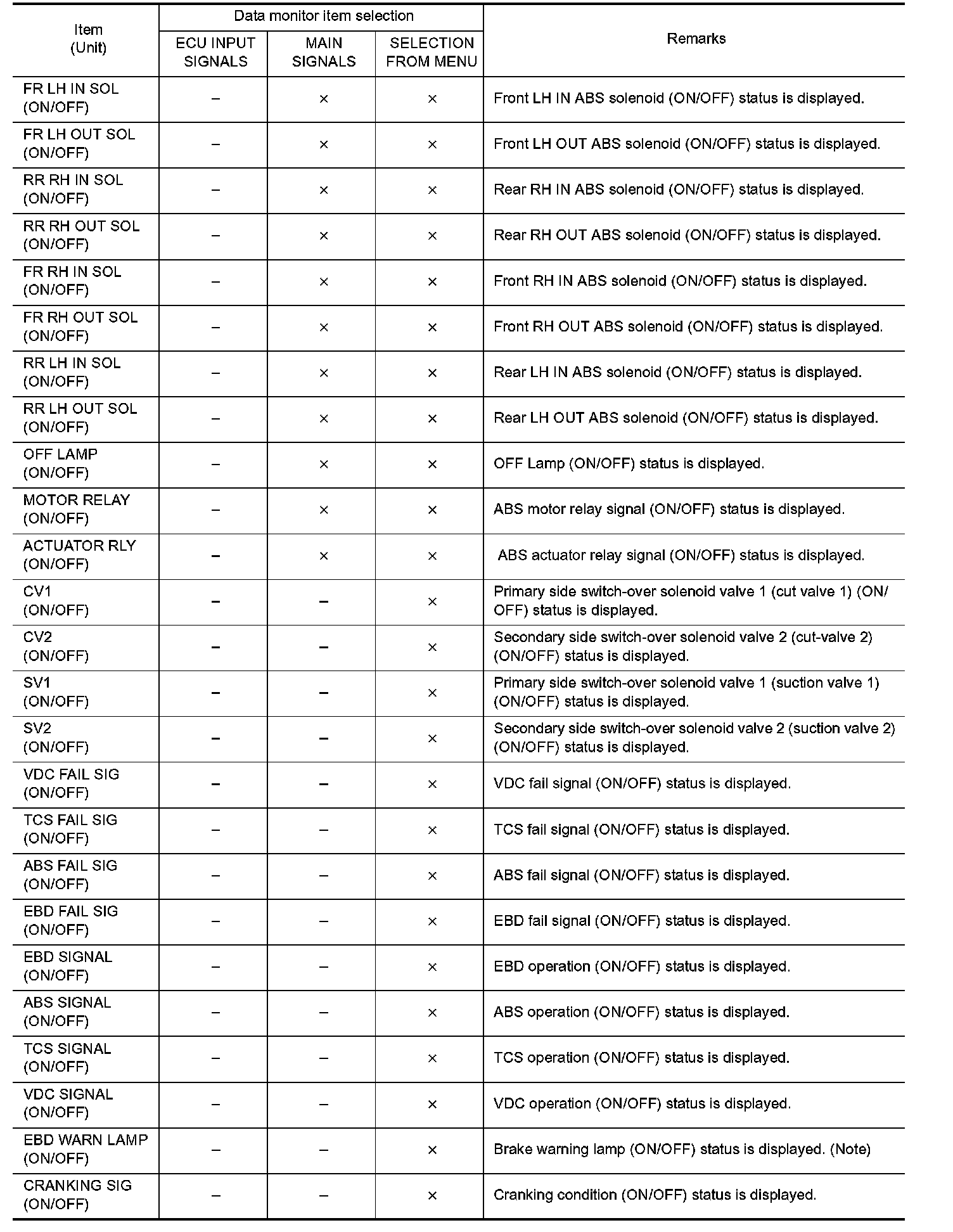

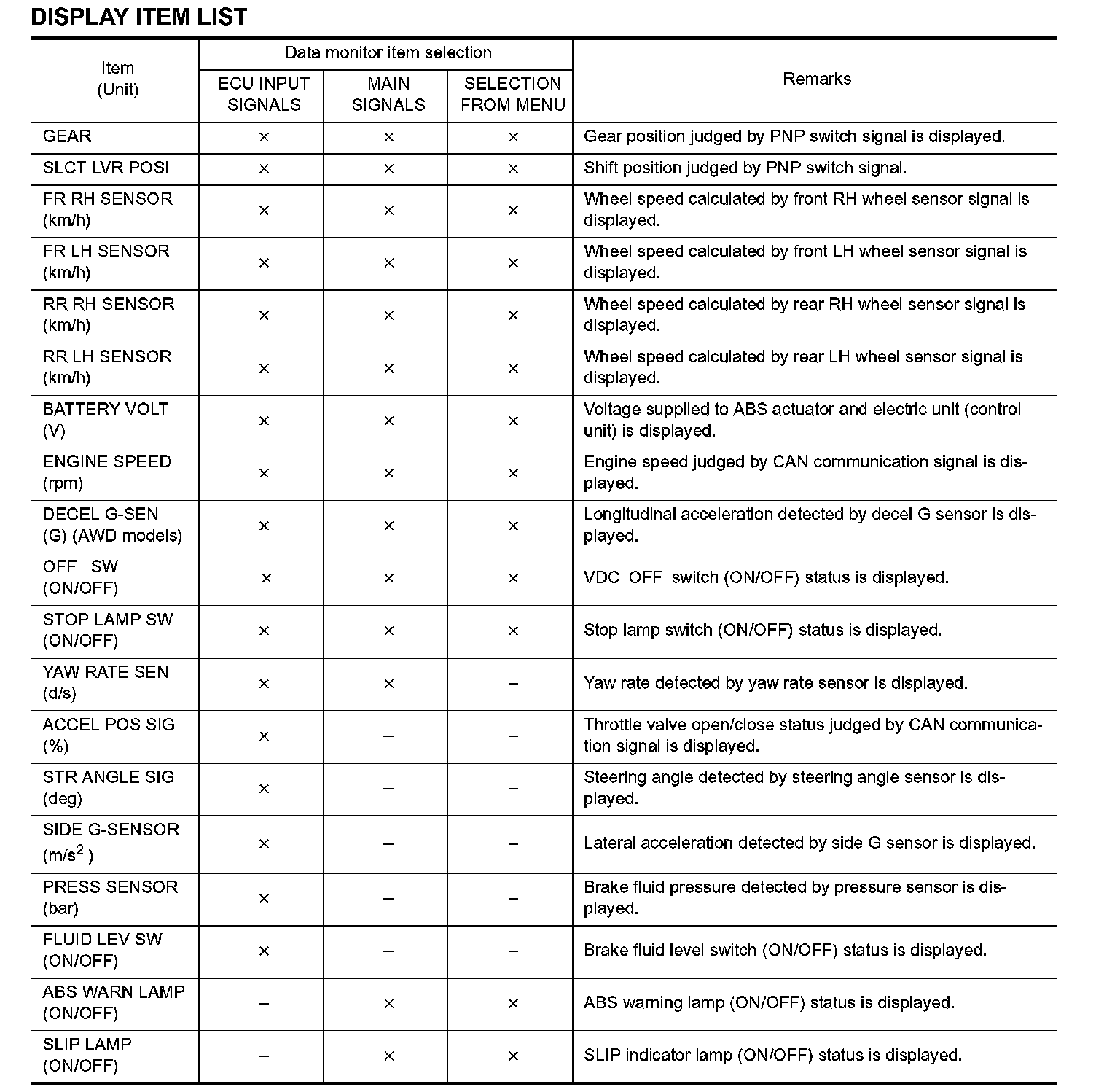

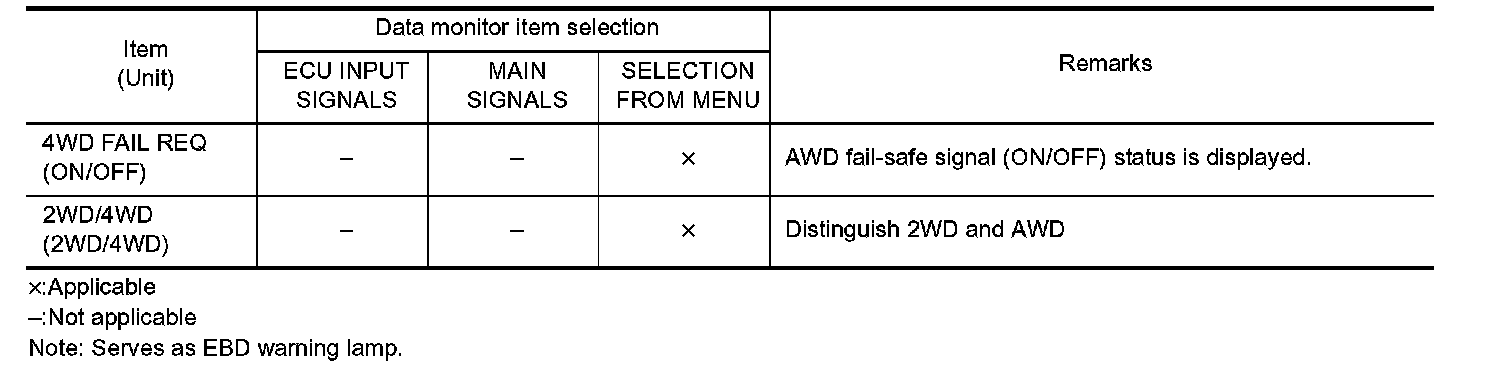

DISPLAY ITEM LIST:
