Windows: Service and Repair

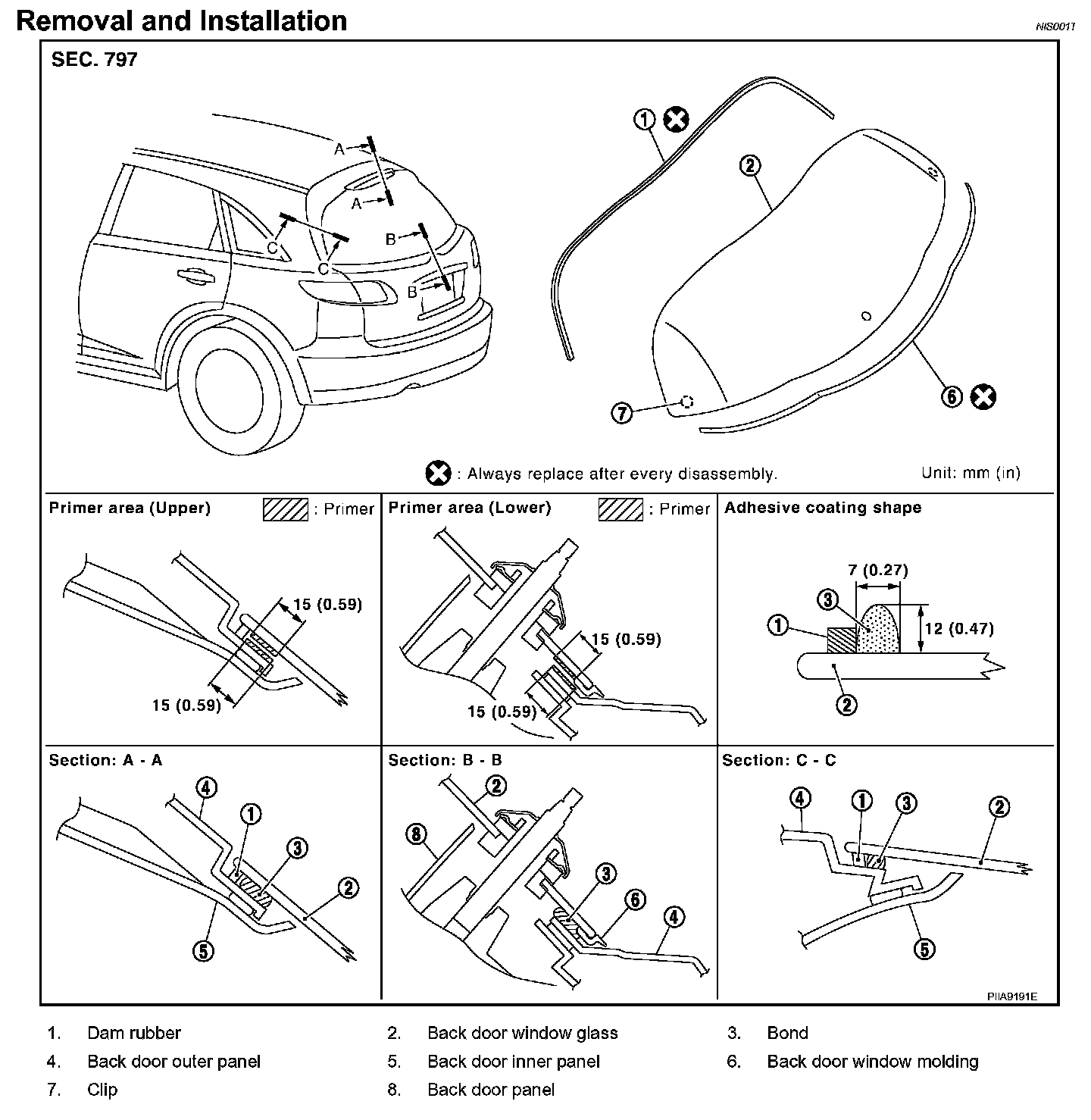

BACK DOOR WINDOW MOLDING




Removal and Installation

REMOVAL
Remove back door window molding.

NOTE: Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface from being damaged.

INSTALLATION
Install back door window molding.

NOTE:
- Clean adhesive portion of back door window glass and around circumference with white gasoline.
- Apply dam rubber to upper and side surfaces of glass.
- Attach back door window molding to side face of glass.
- Back door window molding should not overlap on the surface of back door window glass.
