Drive Belt: Service and Repair
Accessory Drive Belt 2.5L/3.0L Removal 1.
Disconnect the battery ground cable.
2.
Remove the air deflector.
3.
Remove the accessory drive belt.
1.

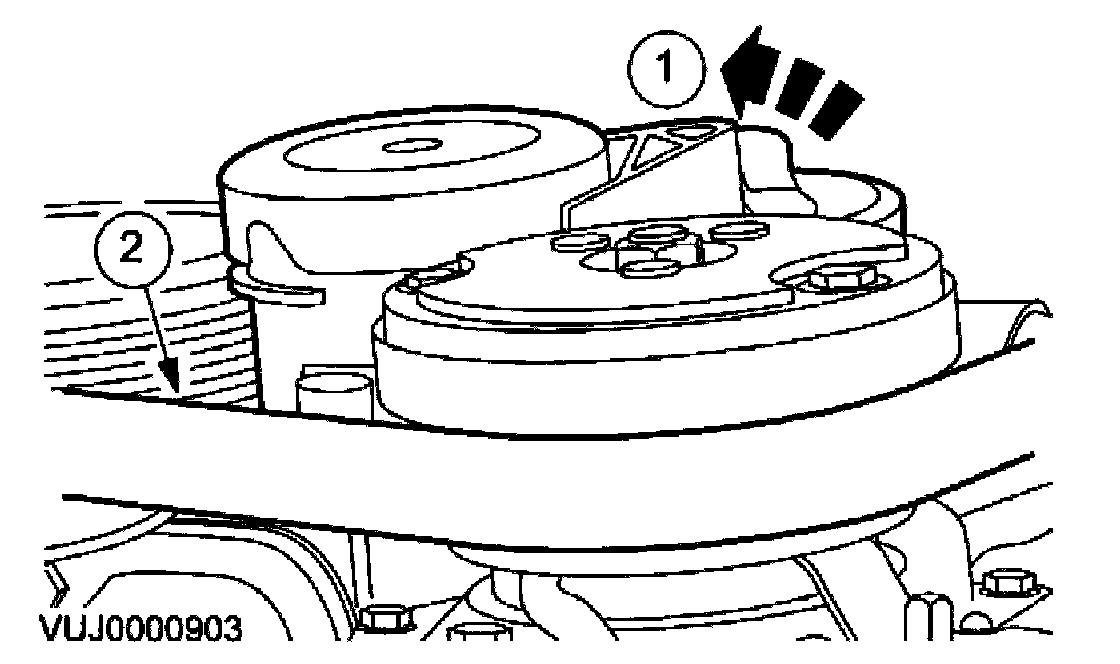

Rotate the accessory drive belt tensioner counter-clockwise.
^
Use a 3/8 inch square drive bar to rotate the accessory drive belt tensioner.
2.
Remove the accessory drive belt.
Installation 1.
To install, reverse the removal procedure.
