Reassembly

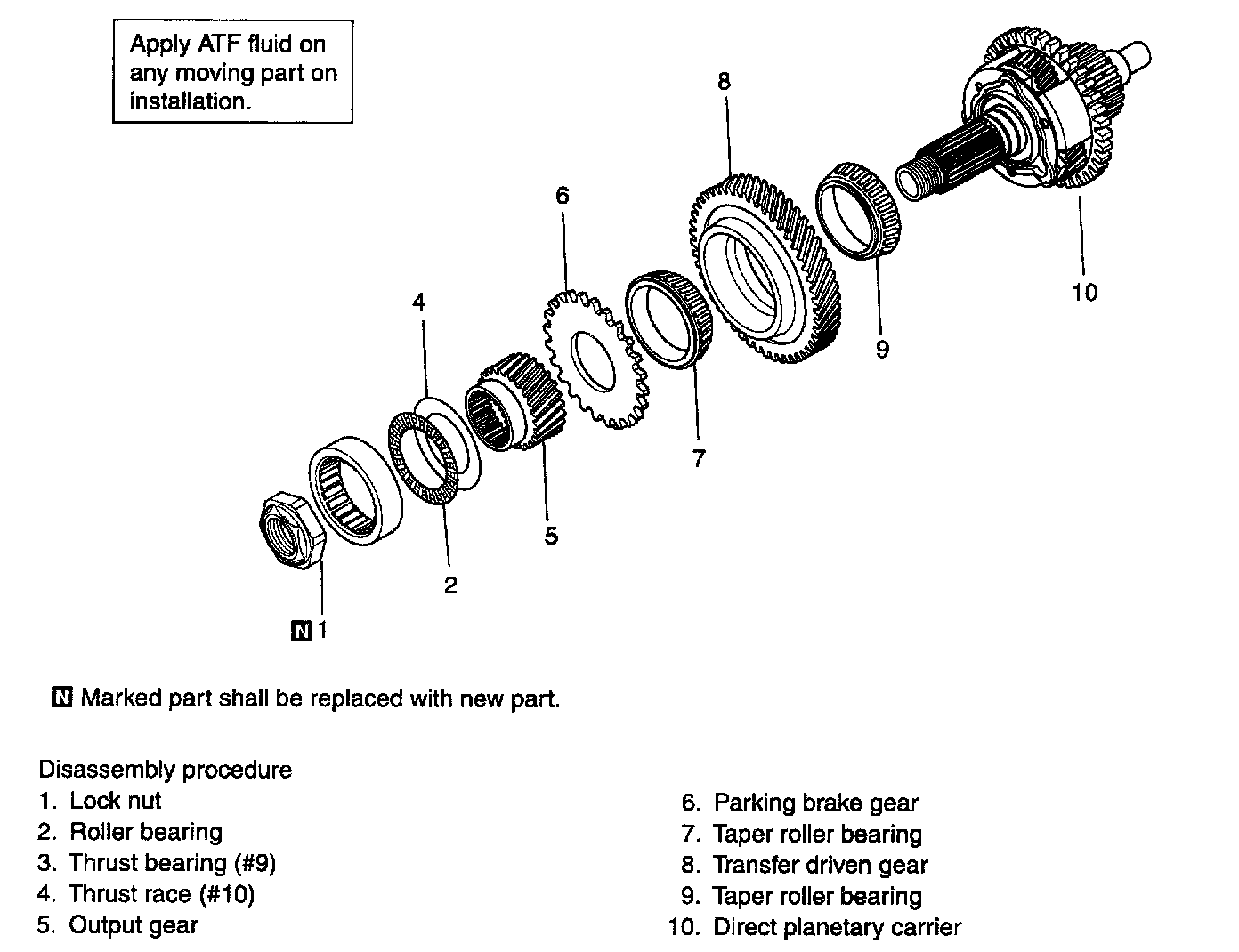

PLANETARY GEAR SETCOMPONENTSREASSEMBLY 1.
Install the inner taper roller bearing using the special tool (09455-33200).
2.
Install the transfer driven gear and the taper roller bearing.
3.
Install the parking brake gear and the output gear.
4.
Install the roller bearing and tighten the lock nut with tightening torque.
5.
Cock the lock nut (two points) not to move.
