Oil Pan, Engine

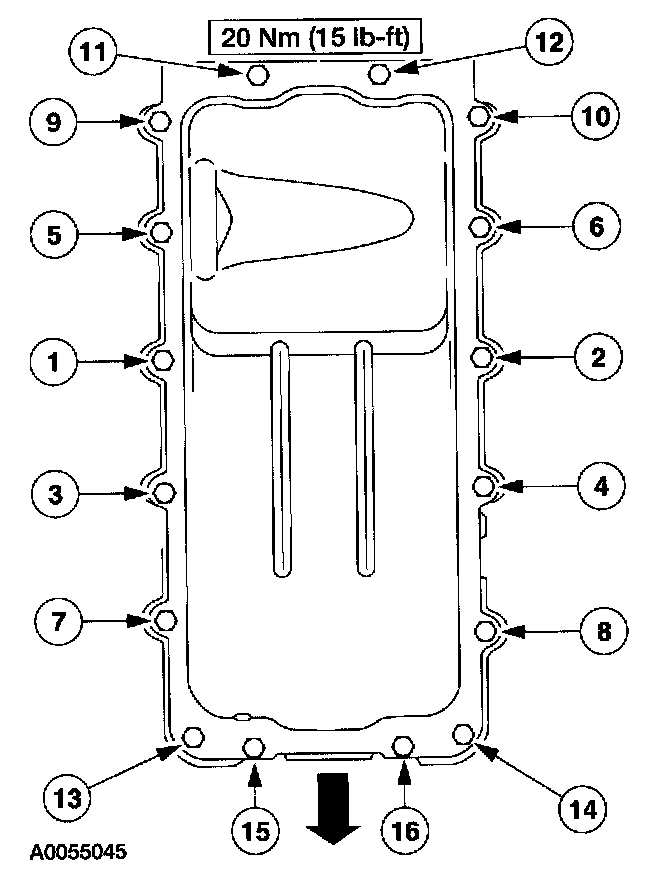

Tighten the bolts in three stages, in the sequence shown.
- Stage 1: Tighten to 2 Nm (18 inch lbs.).
- Stage 2: Tighten to 20 Nm (15 ft. lbs.).
- Stage 3: Rotate an additional 60 degrees.
