System Specifications

GENERAL/DIMENSIONAL SPECIFICATIONS

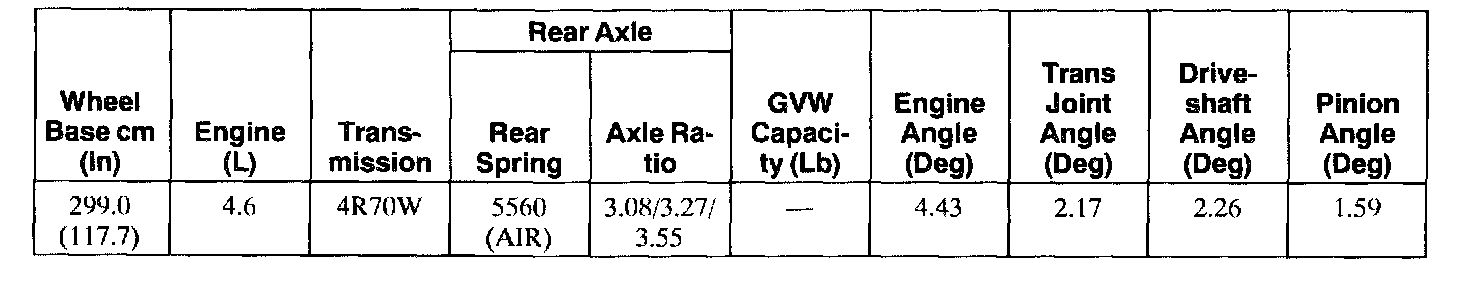

Rear Driveline Angles @ Curb Specifications





Rear Drive Axle Differential

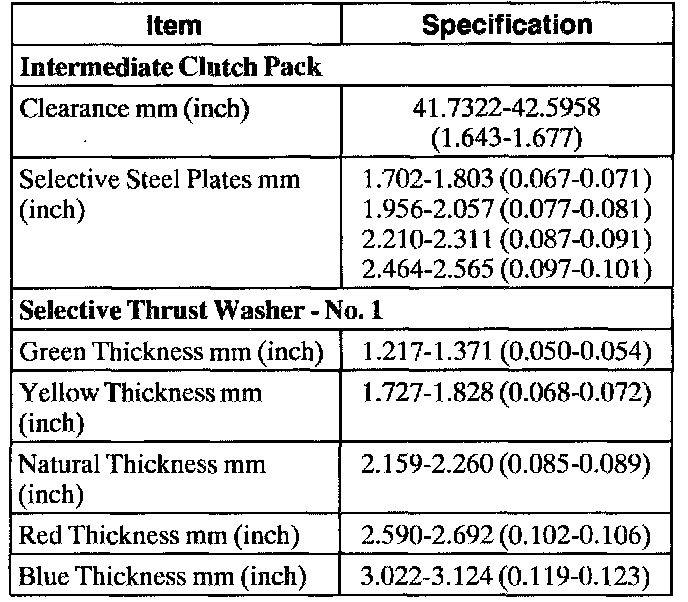

Transmission (Part 1 of 2)





Transmission (Part 2 of 2)

TIGHTENING SPECIFICATIONS

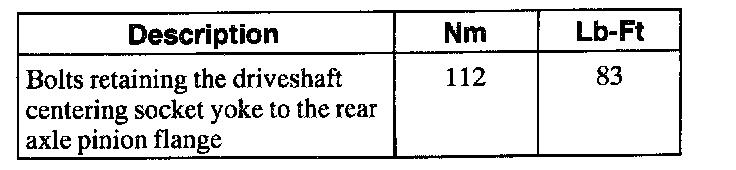

Driveshaft

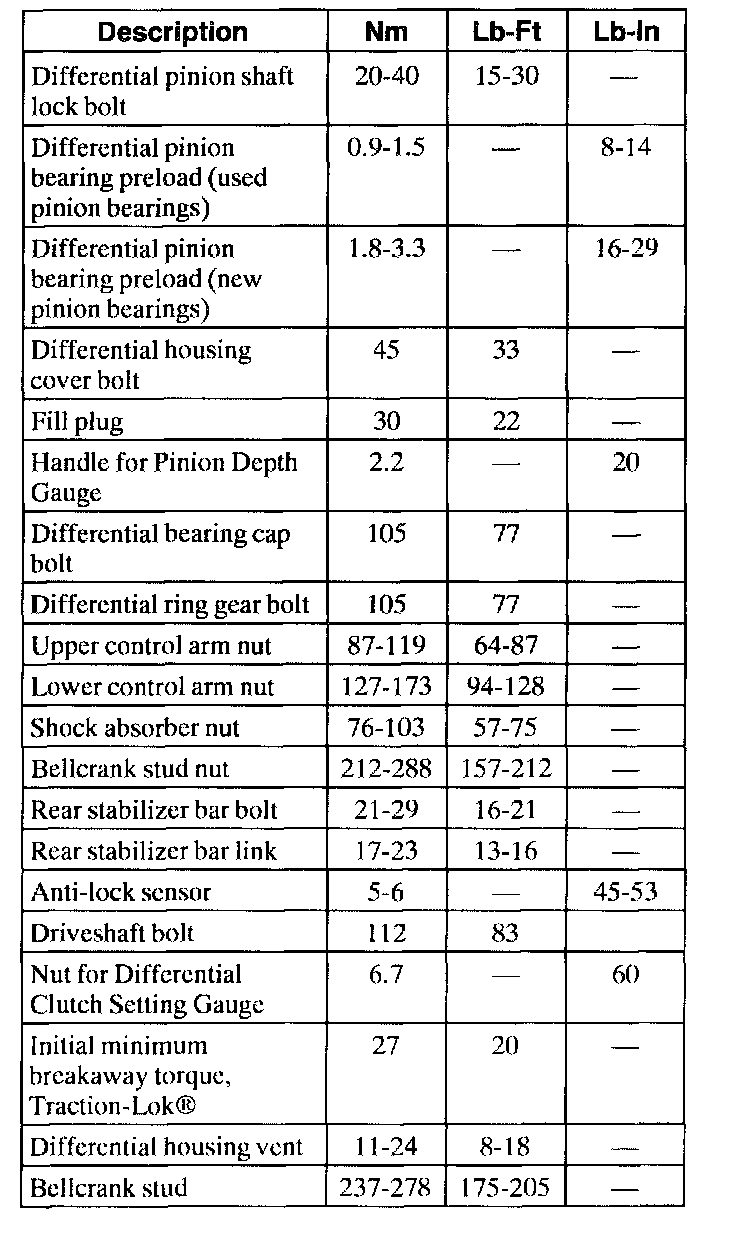

Rear Drive Axle Differential

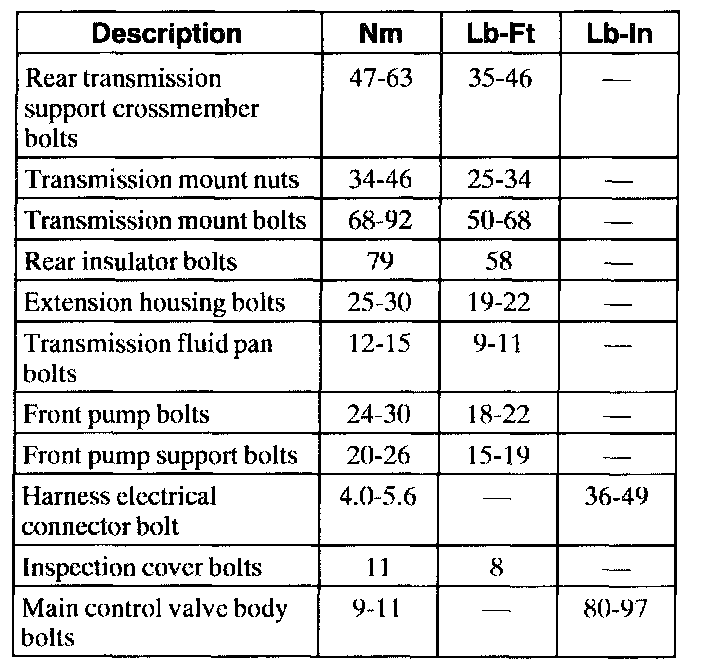

Transmission (Part 1 of 3)

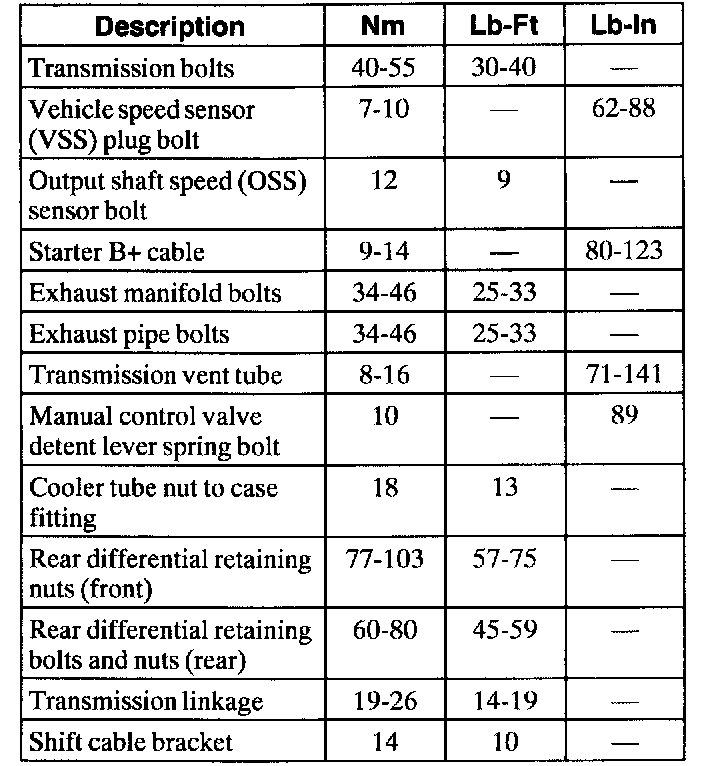

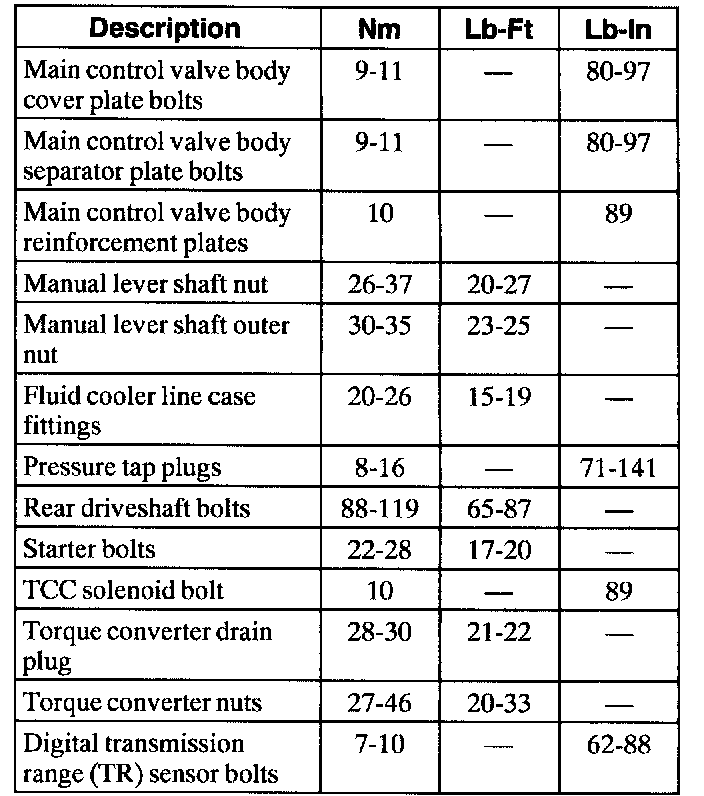

Transmission (Part 2 of 3)

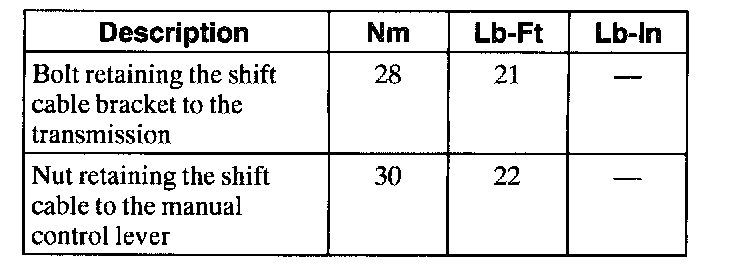

Transmission (Part 3 of 3)

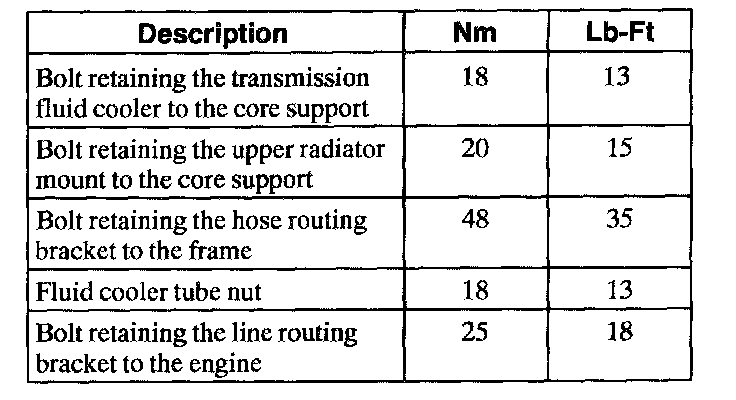

Transaxle/Transmission Cooling

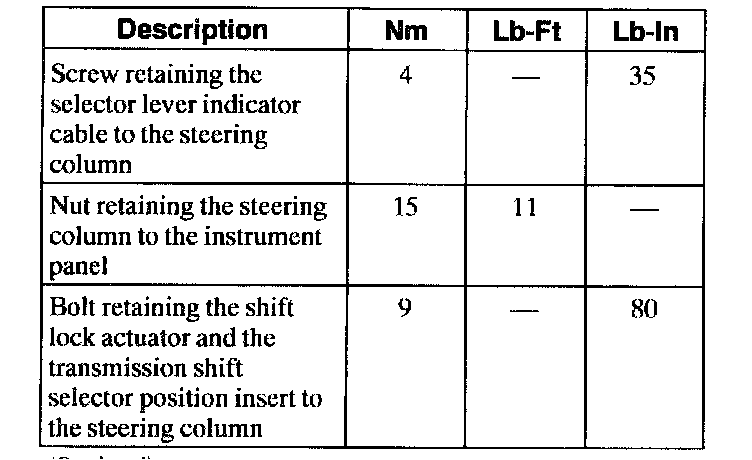

Automatic Transaxle/Transmission External Controls (Part 1 of 2)





Automatic Transaxle/Transmission External Controls (Part 2 of 2)
