ABS Control Module Diagnostic Trouble Code (DTC) Index

Anti-lock Brake System (ABS)/Traction Control and ABS/Traction Control with Advance Trac/IVD Diagnostic Trouble Code (DTC) Index

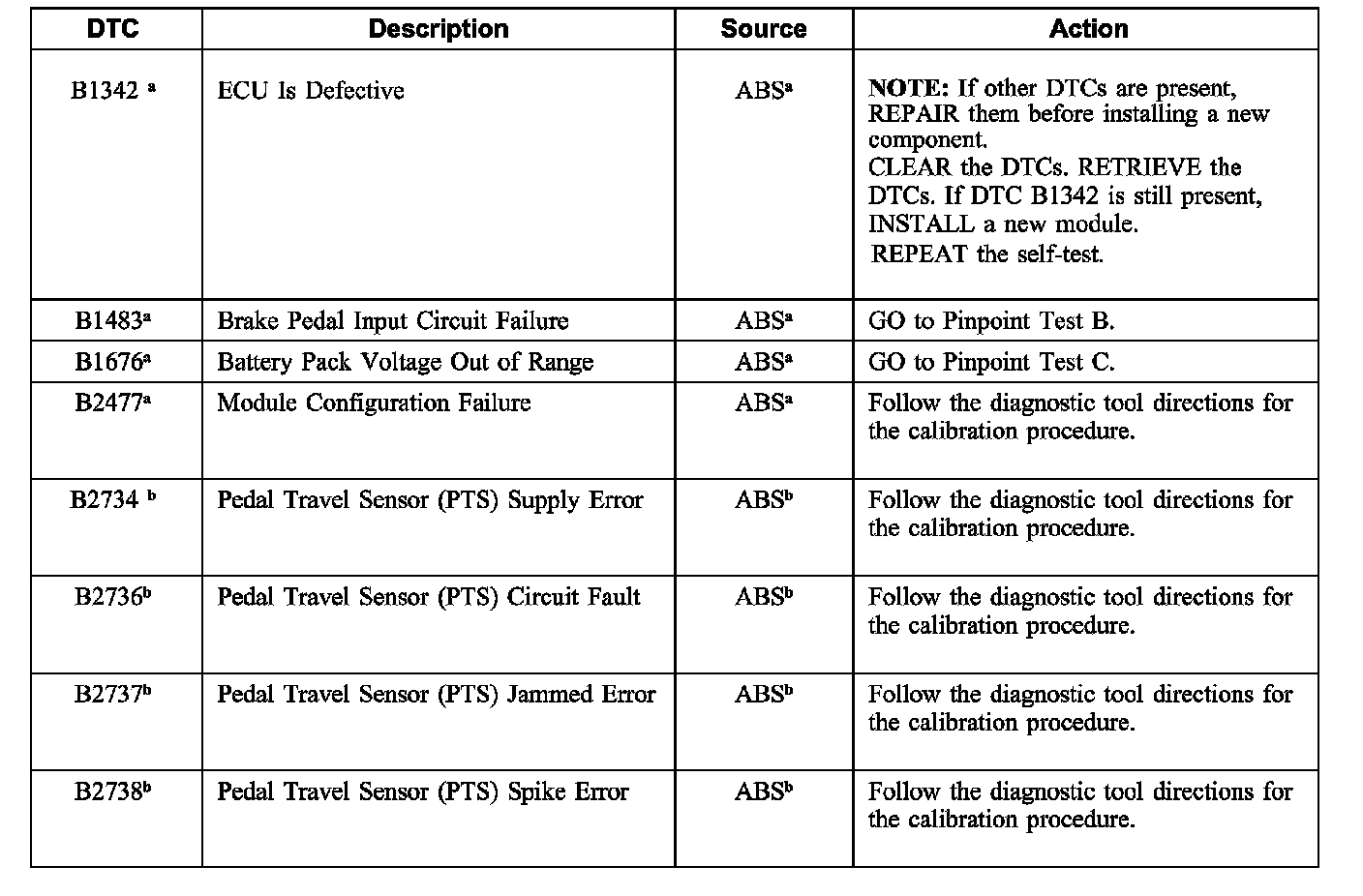

B1342-B2738:

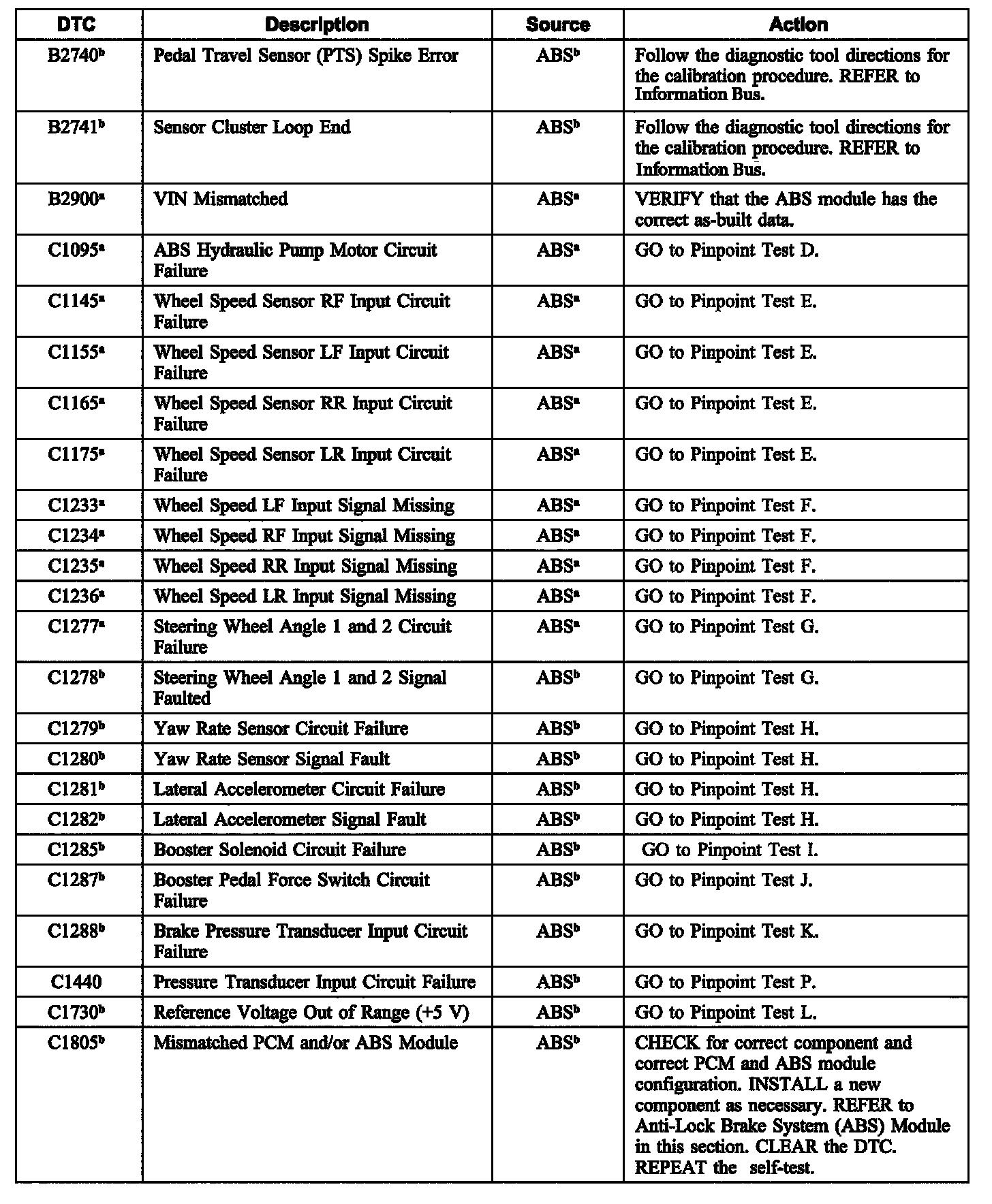

B2740-B2900 / C1095-C1805:

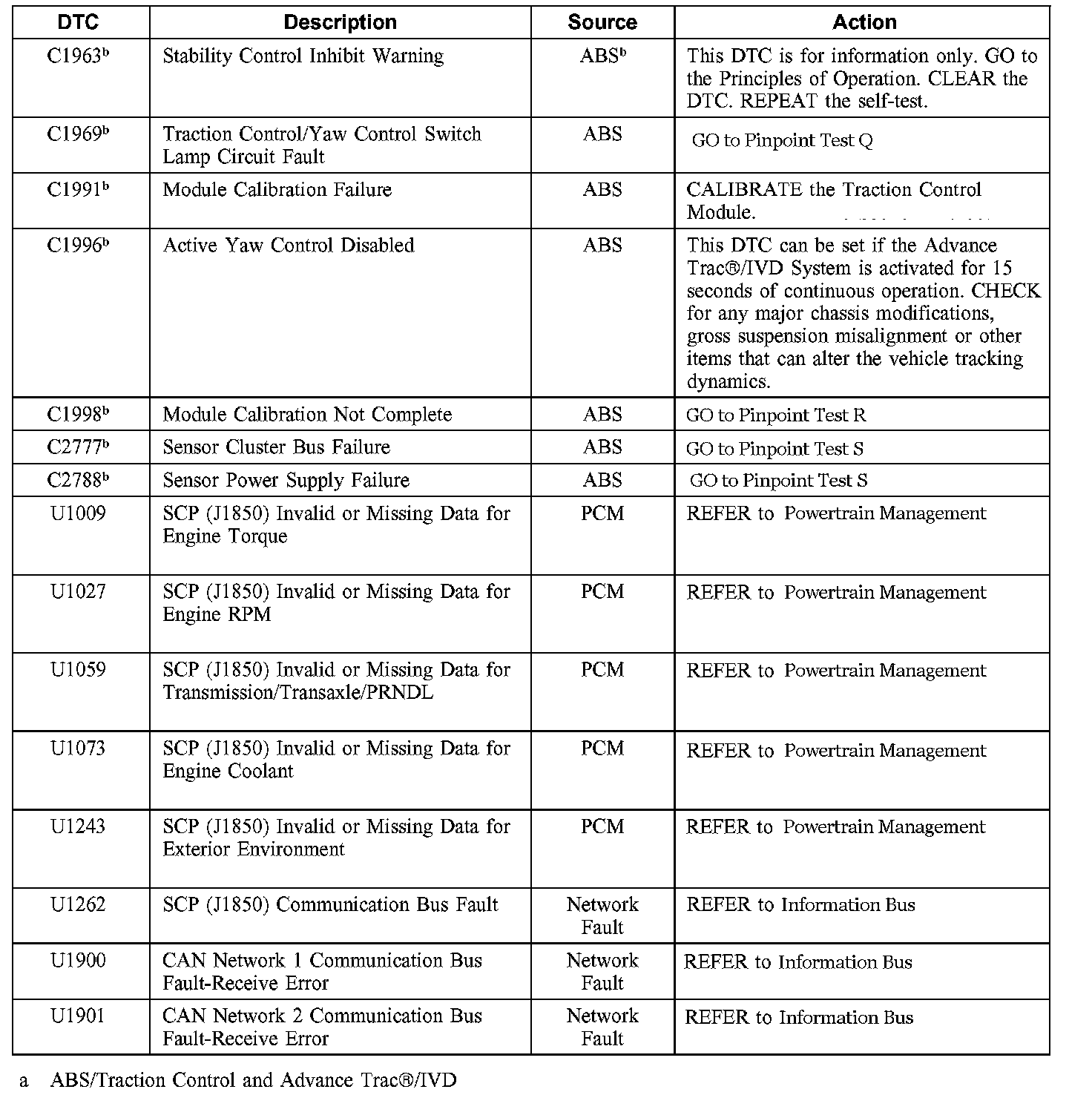

C1963-C2788 / U1009-U1901:

NOTE: The need to recalibrate the module is indicated by the active/fail lamp flashing. There are other service actions that can require recalibration when there is no flashing lamp. The lamp will flash after clearing the DTCs that are indicated in the module calibration list.

NOTE: Always retrieve the continuous DTCs after running the self-test.

NOTE: DTC C1730 (Reference Voltage Out Of Range) must be repaired before DTC C1279 C1280, C1281, C1282, C1288, C1289.
