ABS Diode
Fig. 46 ABS Diode Terminal Identification.:
Fig. 47 ABS Diode Continuity Specification.:

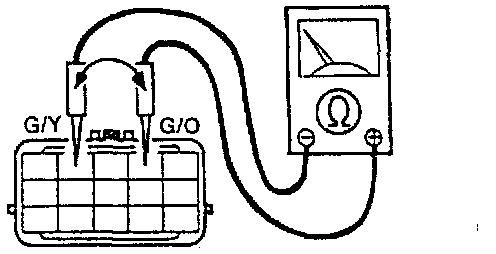

Fig. 51, Checking ABS Diode Continuity:
1.
Check meter fuse, bulb and wiring harness.
2.
Check wiring harness between warning light and
control unit or hydraulic unit.
3.
Disconnect hydraulic unit 12 pin connector on 1990-91 models or 0-02 connector on 1993 models, then check continuity of terminals in
Figs. 49 through 51.
