Boost Solenoid: Service and Repair
Solenoid Valves Replacement:

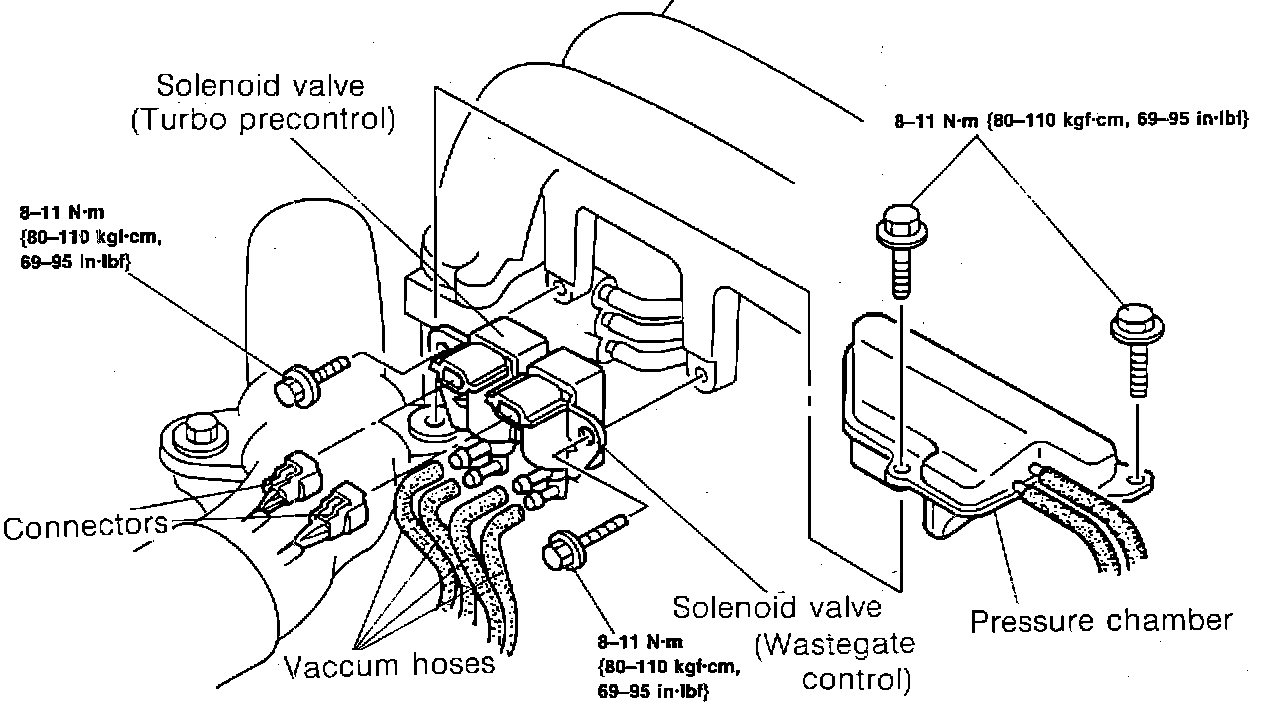

Solenoid Valve Replacement:
1.
Remove components in order shown.
2.
Install in reverse order.
COMPONENTS 1.
Battery cable
2.
Pressure chamber
3.
Accelerator cable
4.
Water hose
5.
Vacuum hoses
6.
Connector
7.
Extension manifold
8.
Solenoid valves
