Air Injection Pump: Adjustments

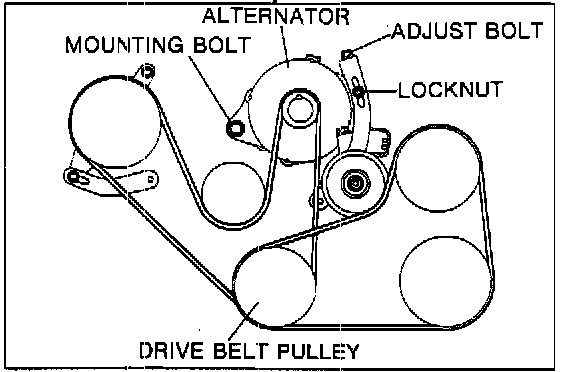

Air Pump Belt Adjustment:

1. Loosen alternator mount bolt and locknut.
2. Move alternator to obtain proper tension.
3. Tighten bolts and recheck tension.

DEFLECTION: 0.28 - 0.29 in (7.0 - 7.5 mm)
