EGR Valve: Service and Repair

EGR Valve Replacement:






1. Remove intake air system components as needed. Refer to Fuel Delivery and Air Induction.

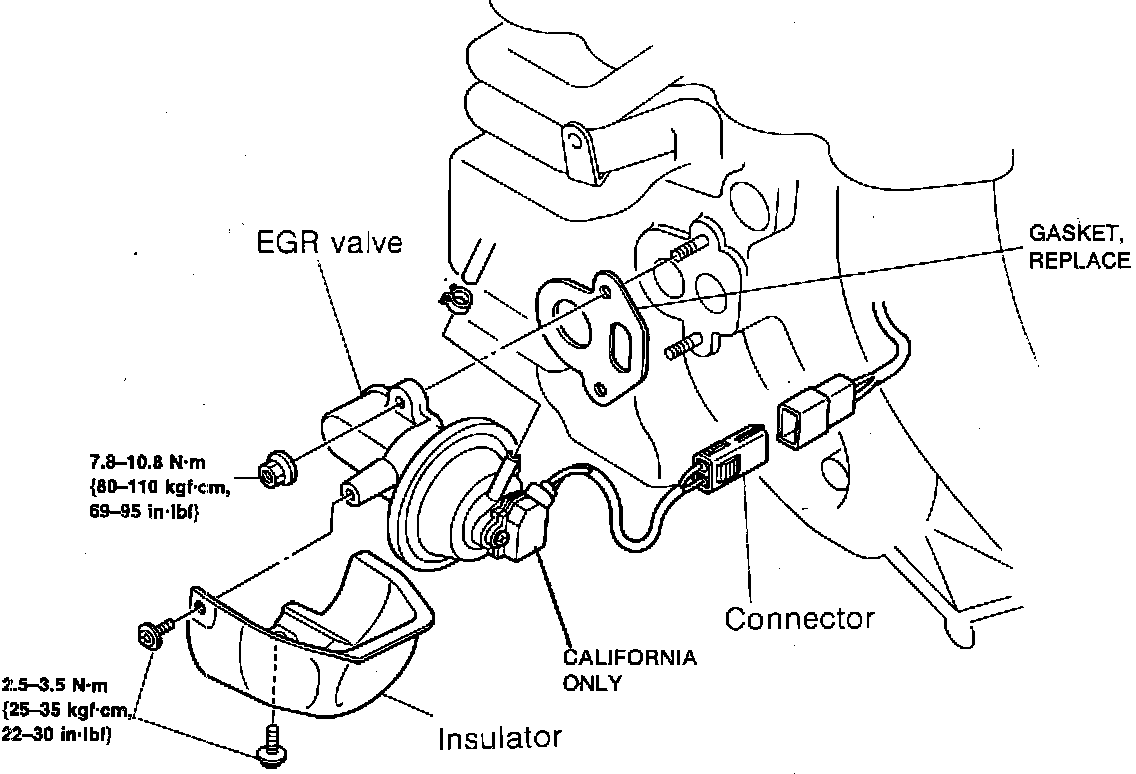

2. Remove EGR valve in order shown.
3. Install in reverse order of removal.
