Fuel Temperature Sensor: Service and Repair

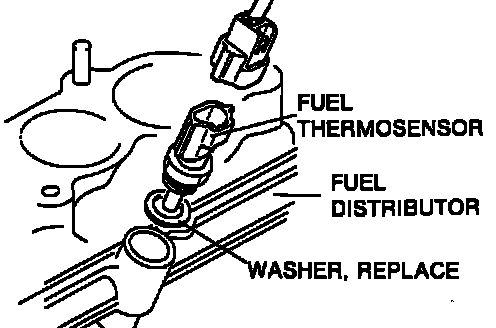

Fuel Thermosensor:
WARNING: Before removing sensor, relieve fuel system pressure.
1.
Remove intake system components as required.
2.
Unplug connector and remove sensor.
3.
Install in reverse order and torque to 174 - 217 in lb (19.6 - 24.5 Nm).
