Crankshaft Position Sensor: Service and Repair
Crank Angle Sensor R&R:

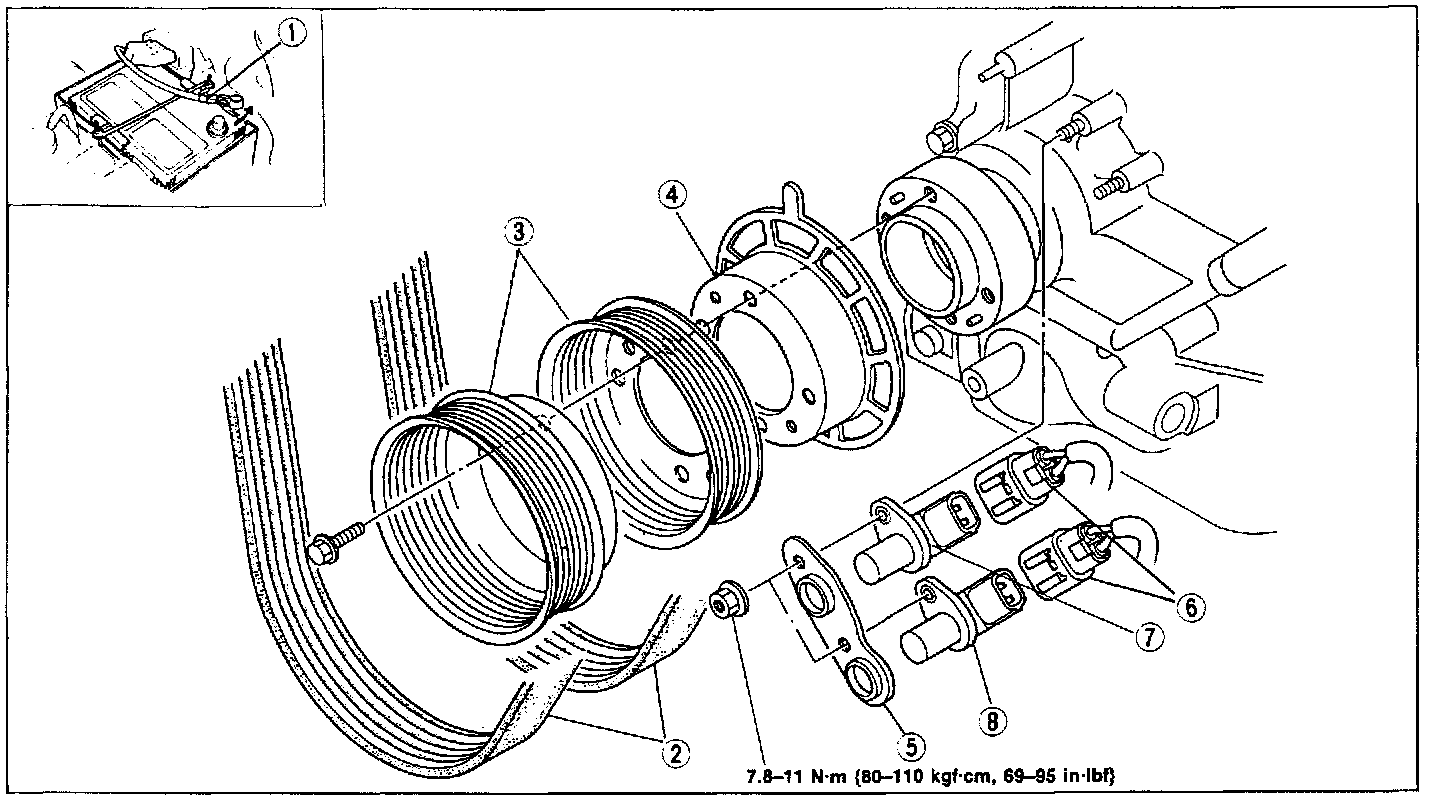

COMPONENTS 1.
Battery cable
2.
Drive belt
3.
Eccentric shaft pulley
4.
Crank angle sensor plate
5.
Bracket
6.
Connectors
7.
Crank angle sensor (NE-signal)
8.
Crank angle sensor (G-signal)
1.
Remove in order shown.
2.
Install in reverse order. Ensure that clearance between sensor and sensor plate is
0.039 - 0.078 in (1.0 - 2.0 mm).
