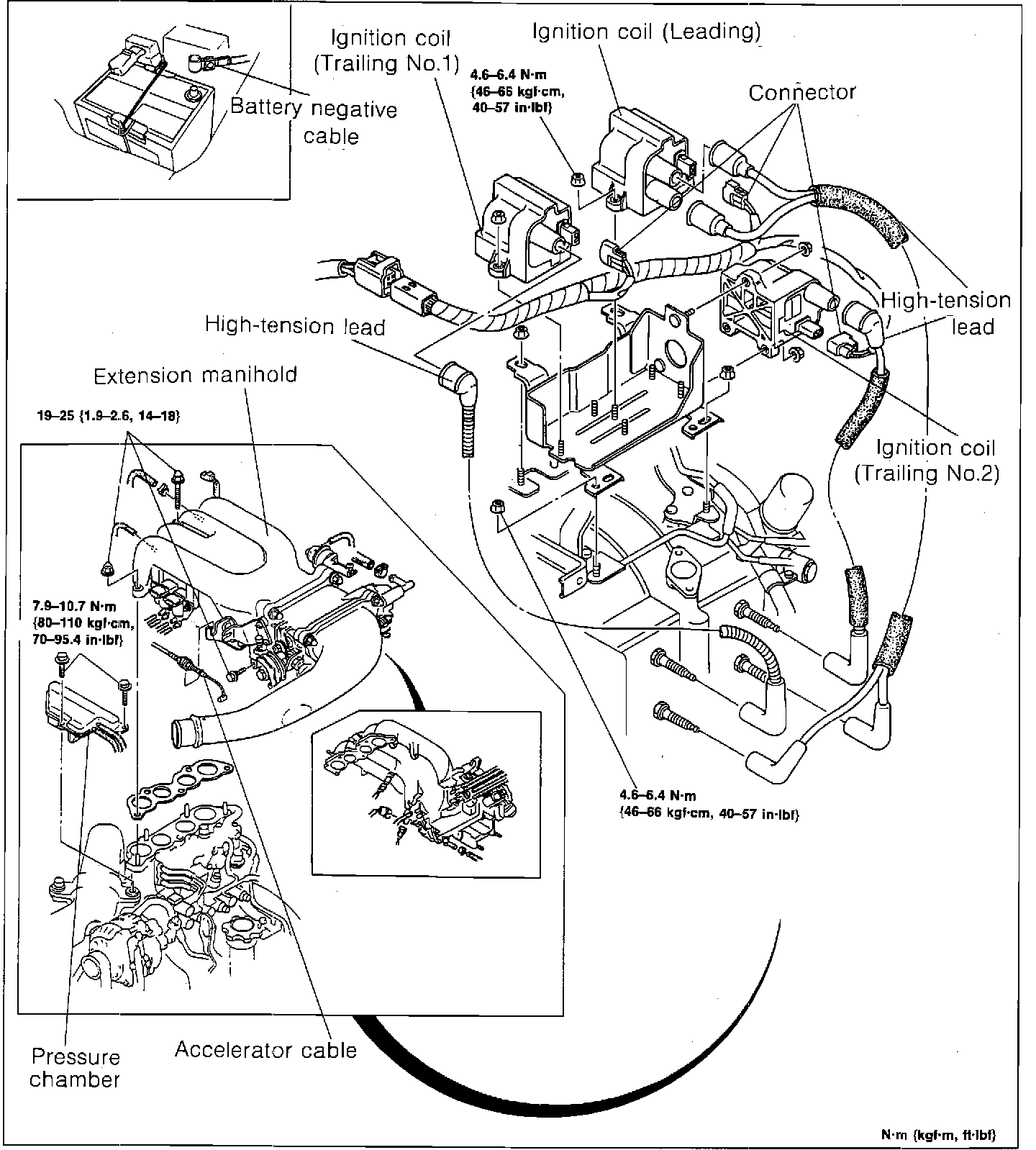

Ignition Coil: Service and Repair
Ignition Coils:
Remove
ignition coils in the following order. Reverse procedure to install:
1.
Negative battery cable
2.
Pressure chamber
3.
Accelerator cable
4.
Extension manifold
5.
High tension lead
6.
Connector
7.
Coil bracket
8.
Coil (trailing #1)
9.
Coil (leading)
10.
Coil (trailing #2)
