Ignition Control Module: Description and Operation

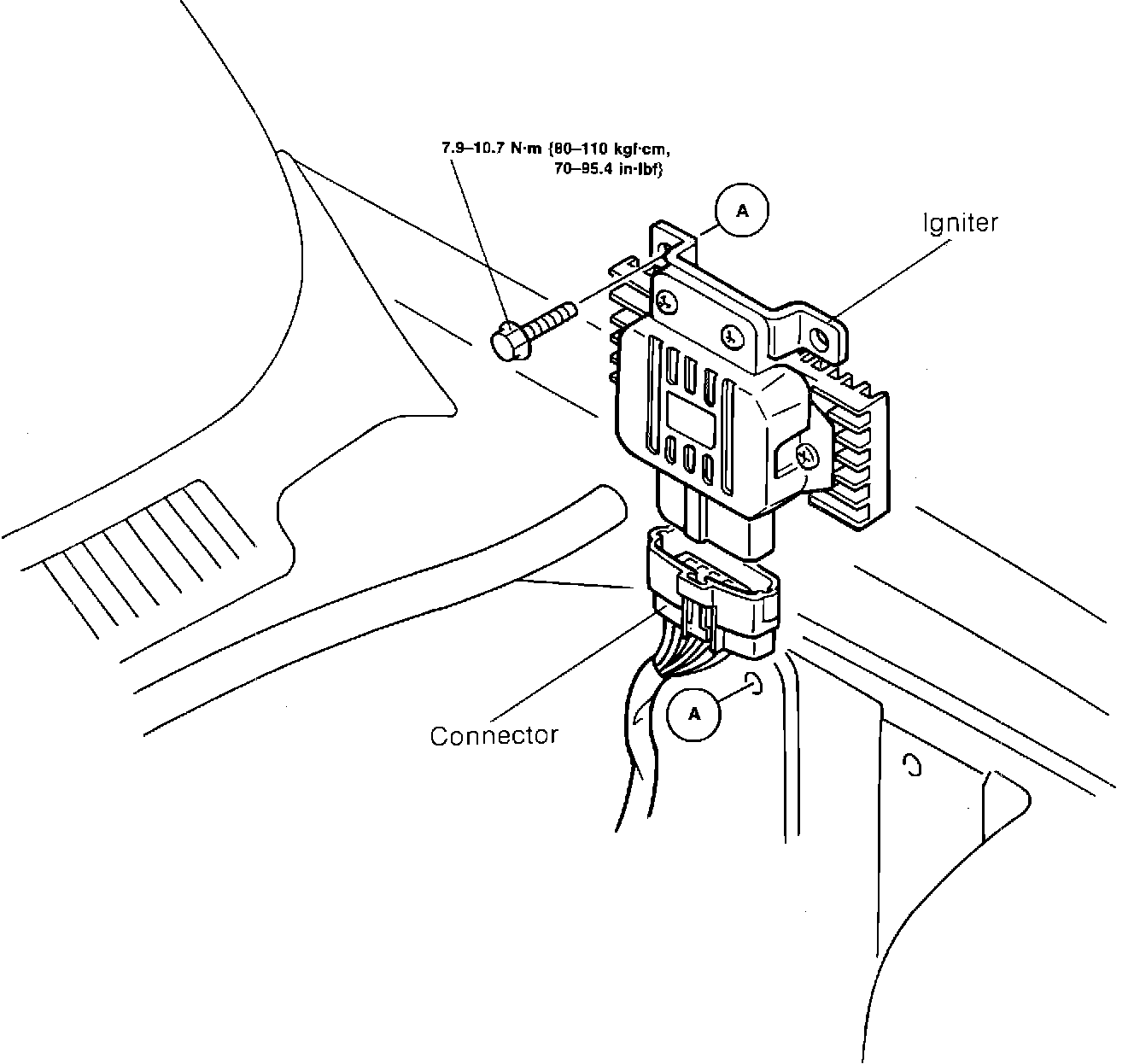

Igniter R&R:
PURPOSE The
igniter is the ECU controlled switch regulating current flow through coil primary circuits.
LOCATION Left rear corner engine compartment, bolted to inner fender.
OPERATION Each time current flow is interrupted, high voltage is induced to fire the spark plugs. Timing is ECU controlled with no provision for adjustment.
