Fuel System, M/T - Manual Revisions
Bulletin No. 028/92Issued 7/23/92
Revised
Category
W
Applicable Model/s
1986-'88 & '93
RX-7
Subject:
WORKSHOP MANUAL CORRECTION
DESCRIPTION
Included are pages for the 1986-'88 RX-7 Workshop Manuals which provide clear fuel system inspection procedures.
Please replace the current pages with the replacement pages provided.
^ 1986 RX-7

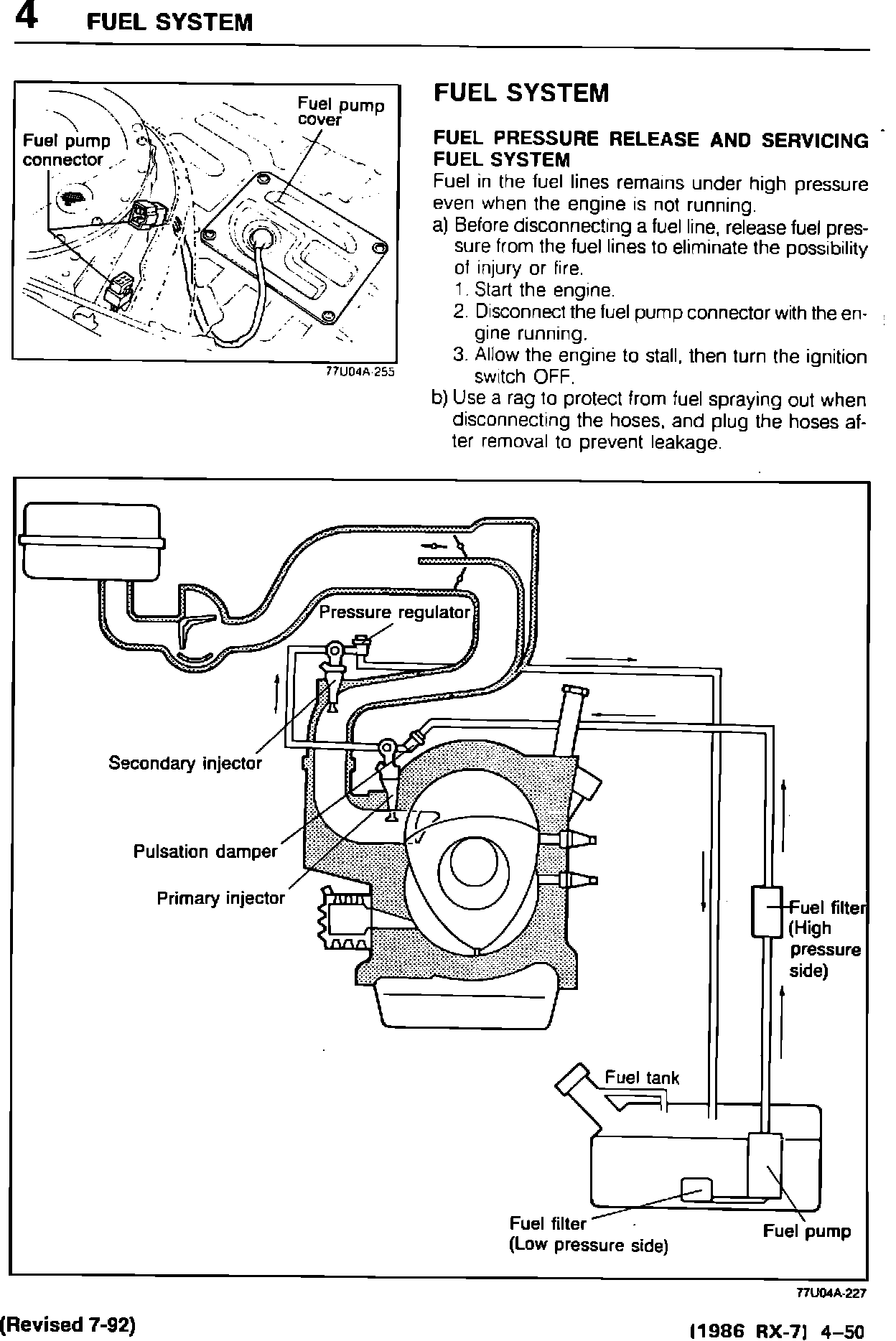

1986 Page 4-50 Fuel System

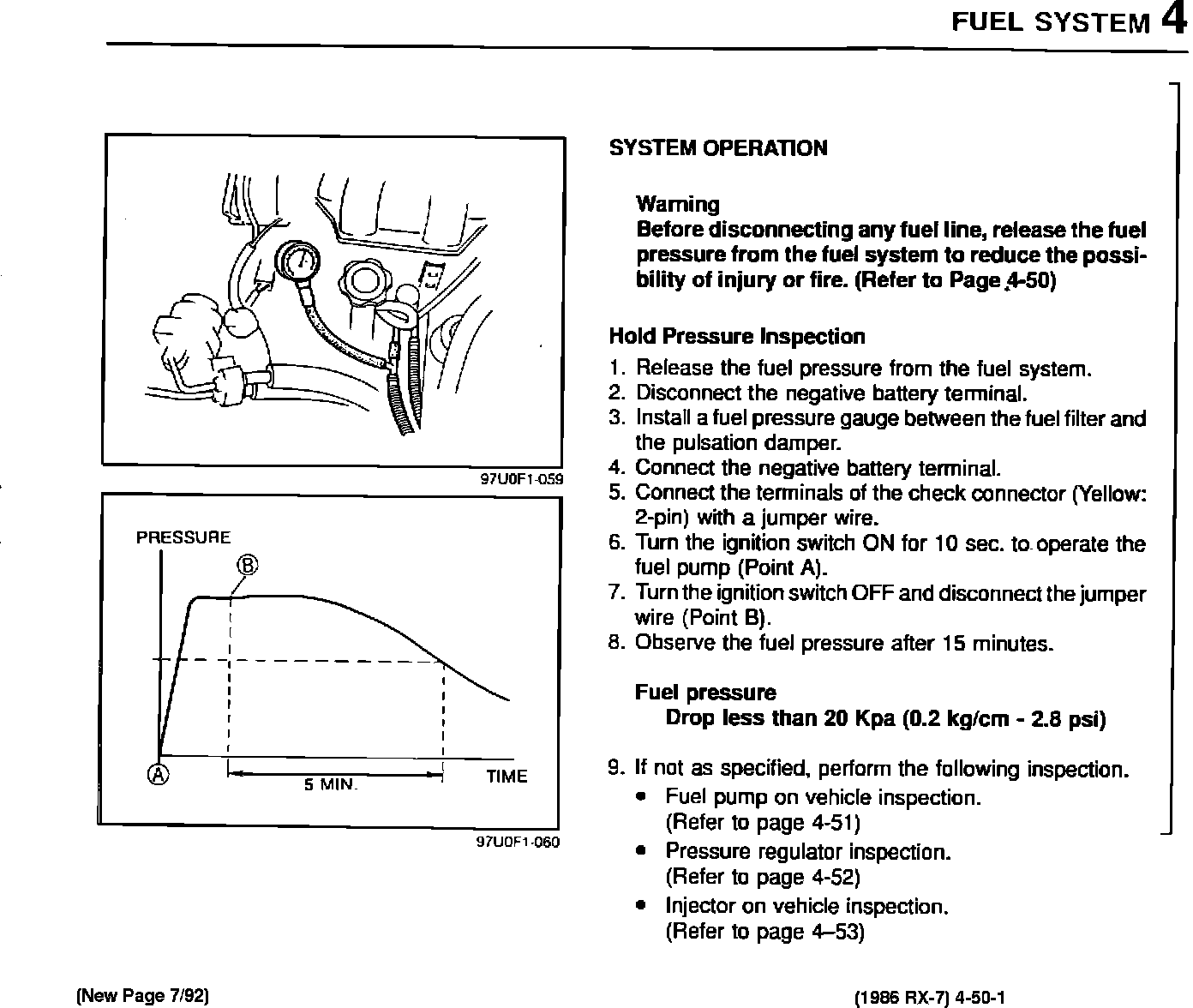

1986 Page 4-50-1 System Operation
^ 1987 RX-7

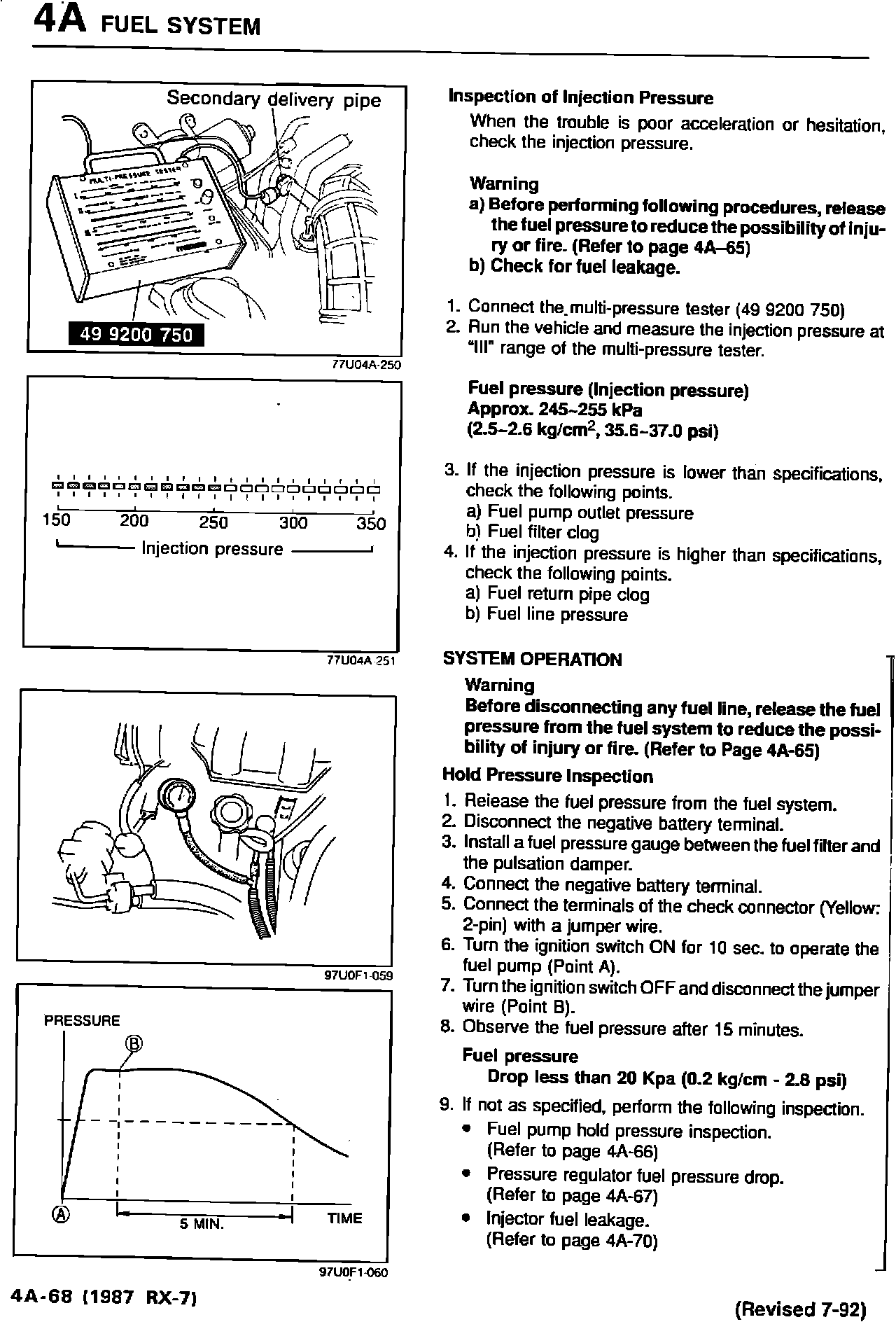

1987 Page 4A-68 Injection Pressure and System Operation
^ 1988 RX-7

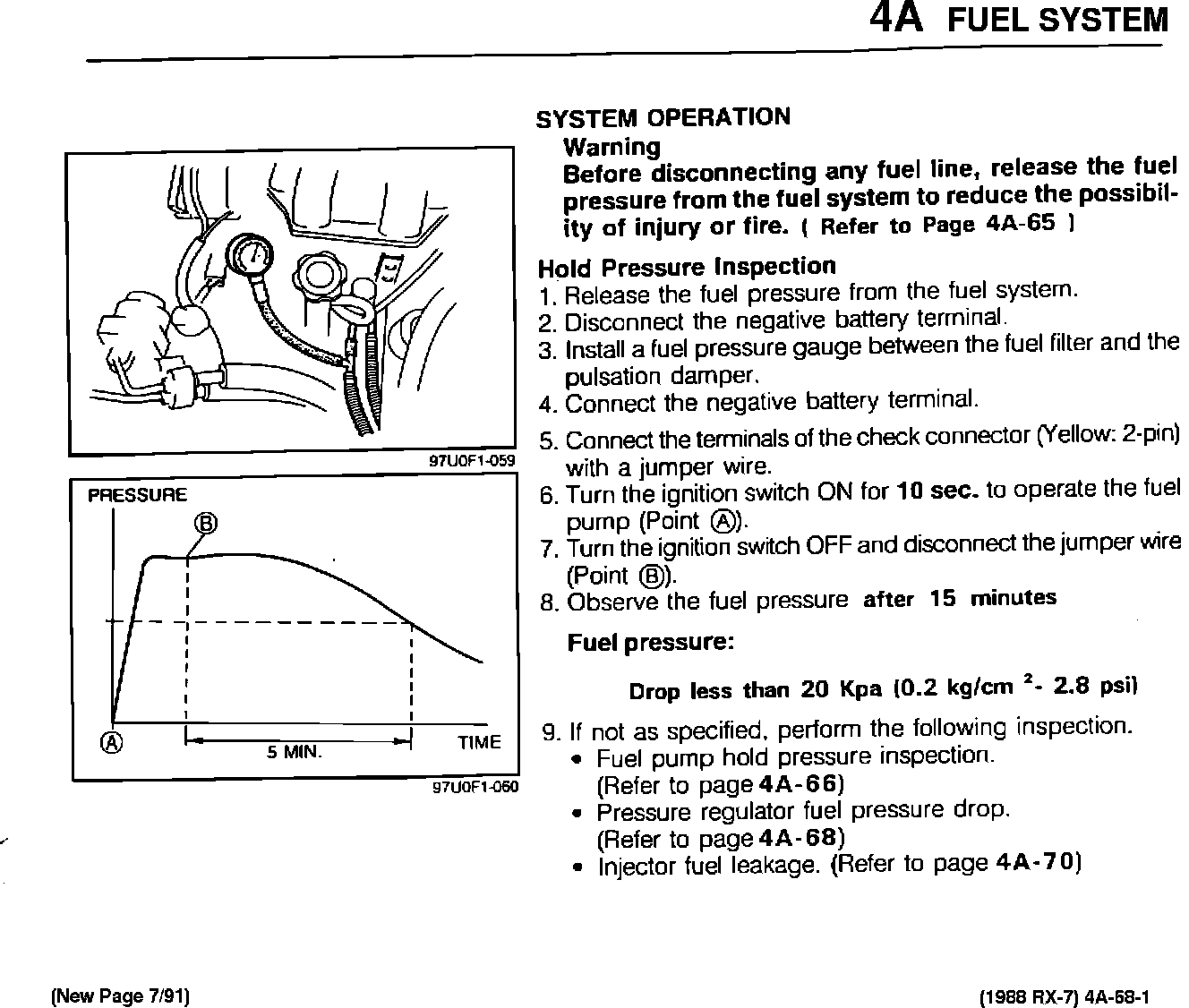

1988 Page 4A-68-1 System Operation New Page
Also, the pages for the 1993 RX-7 Workshop Manual which required corrections for the reasons are listed.
Please replace the current pages with the replacements provided.
^ 1993 RX-7

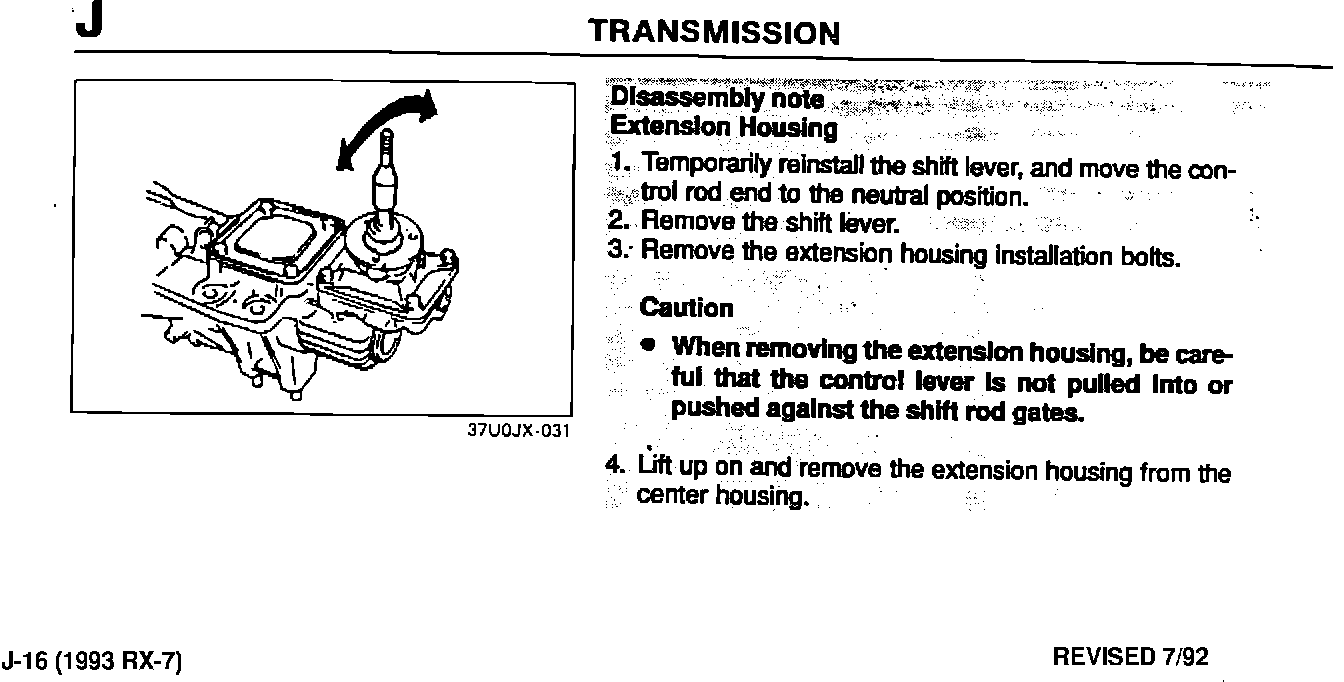

1993 Page J-16 - New extension housing disassembly instructions.

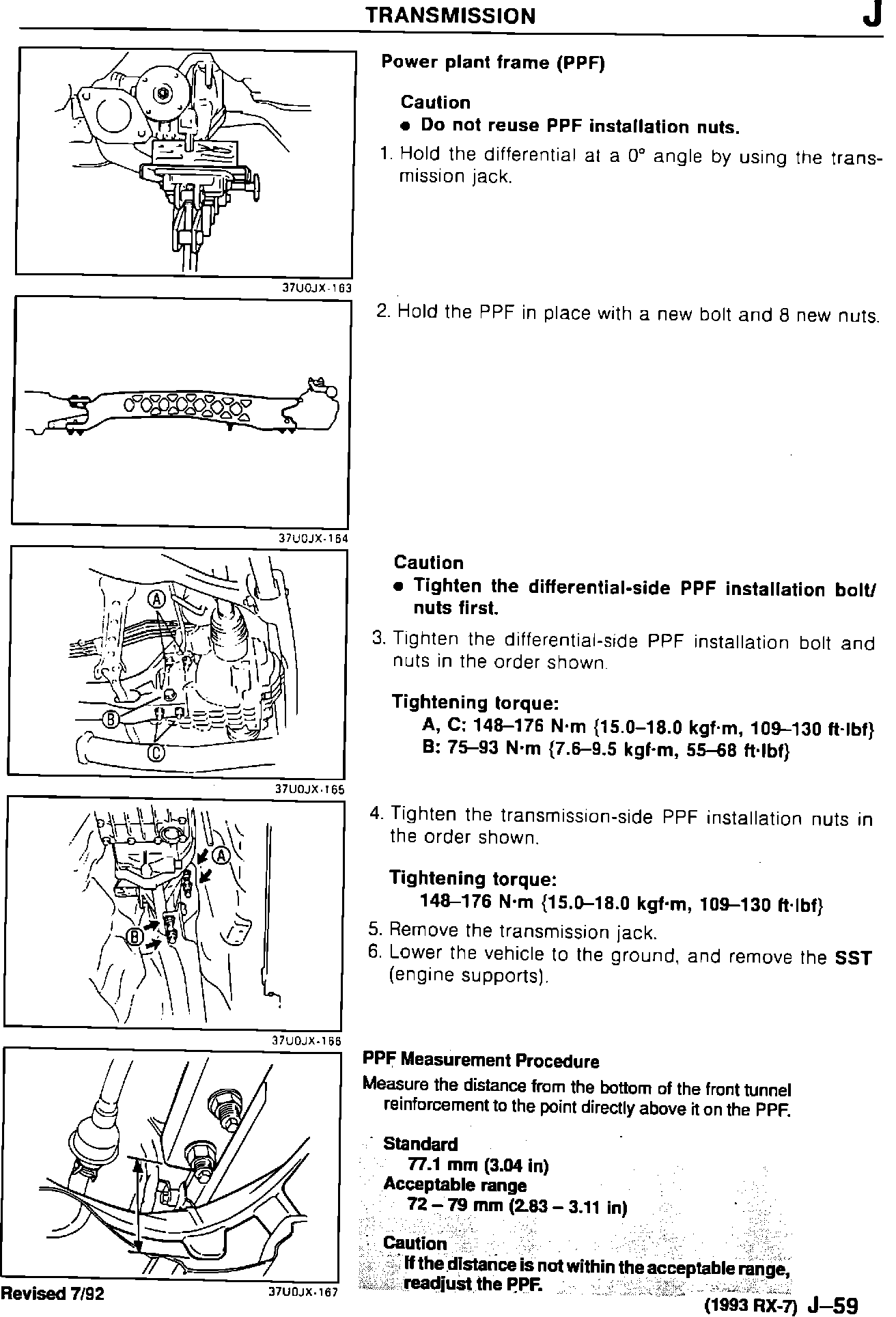

1993 Page J-59 - PPF inspection dimensions provided.
