FUEL SYSTEM LOCATION INDEX [F2]

id011494800100

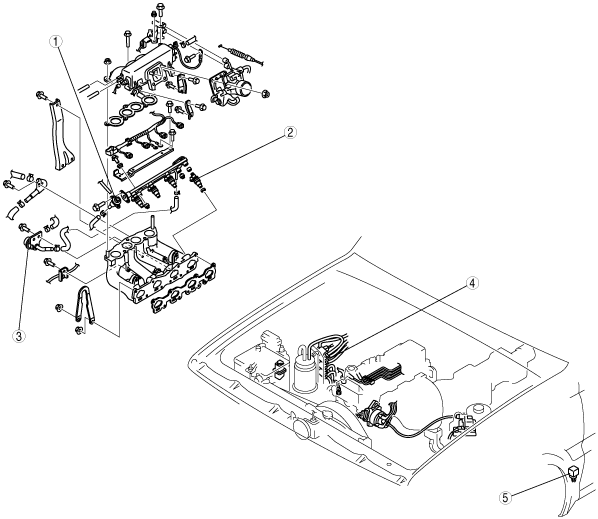

Engine Compartment Side

absggw00001871

1	Pressure regulator (See PRESSURE REGULATOR REMOVAL/INSTALLATION [F2].) (See PRESSURE REGULATOR INSPECTION [F2].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [F2].) (See FUEL INJECTOR INSPECTION [F2].)
3	Pulsation damper (See PULSATION DAMPER REMOVAL/INSTALLATION [F2].) (See PULSATION DAMPER INSPECTION [F2].)
4	PRC solenoid valve (See PRESSURE REGULATOR CONTROL (PRC) SOLENOID VALVE INSPECTION [F2].)
5	Fuel pump relay (See FUEL PUMP RELAY INSPECTION [F2].)

Fuel Tank Side

arnffw00000503

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [F2].)
2	Nonreturn valve (See NONRETURN VALVE INSPECTION [F2].)
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [F2].) (See FUEL PUMP UNIT INSPECTION [F2].)
4	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [F2].)
