FUEL SYSTEM LOCATION INDEX [G6]

id011495800100

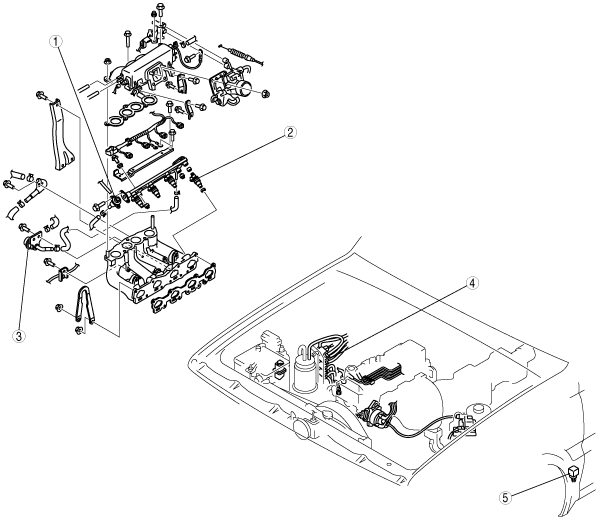

Engine Compartment Side

absggw00001892

1	Pressure regulator (See PRESSURE REGULATOR REMOVAL/INSTALLATION [G6].) (See PRESSURE REGULATOR INSPECTION [G6].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [G6].) (See FUEL INJECTOR INSPECTION [G6].)
3	Pulsation damper (See PULSATION DAMPER REMOVAL/INSTALLATION [G6].) (See PULSATION DAMPER INSPECTION [G6].)
4	PRC solenoid valve (See PRESSURE REGULATOR CONTROL (PRC) SOLENOID VALVE INSPECTION [G6].)
5	Fuel pump relay (See FUEL PUMP RELAY INSPECTION [G6].)

Fuel Tank Side

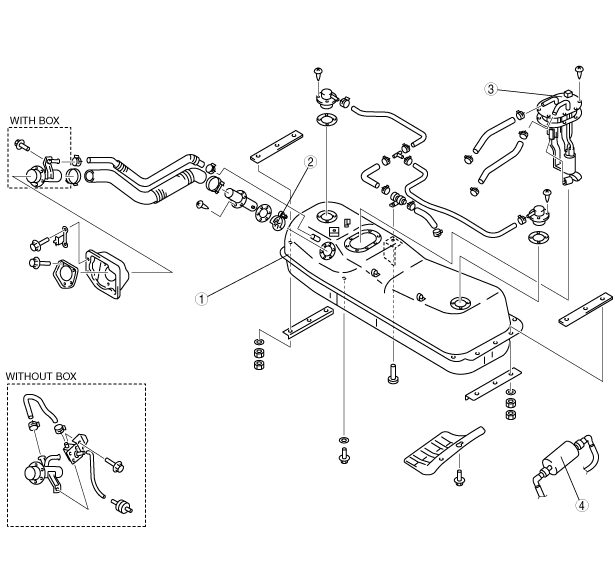

Freestyle 4×2, double cab 4×2

absggw00000801

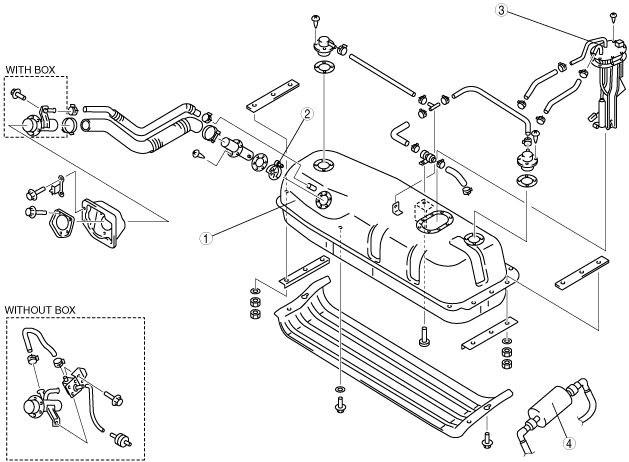

Freestyle 4×4, double cab 4×4, regular cab

absggw00000288

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [G6].)
2	Nonreturn valve (See NONRETURN VALVE INSPECTION [G6].)
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [G6].) (See FUEL PUMP UNIT INSPECTION [G6].)
4	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [G6].)
