FUEL SYSTEM LOCATION INDEX [WL-C, WE-C]

id0114b6800100

Engine Room Side

absggw00000461

1	Fuel filter (See FUEL FILTER REMOVAL/INSTALLATION [WL-C, WE-C].) (See SEDIMENTOR WATER DRAINING [WL-C, WE-C].)
2	Sedimentor switch (See SEDIMENTOR SWITCH INSPECTION [WL-C, WE-C].)
3	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION [WL-C, WE-C].) (See SUPPLY PUMP INSPECTION [WL-C, WE-C].)
4	Fuel metering valve (See FUEL METERING VALVE INSPECTION [WL-C, WE-C].)
5	Fuel-inlet filter (See FUEL-INLET FILTER REMOVAL/INSTALLATION [WL-C, WE-C].)
6	Common rail (See COMMON RAIL INSPECTION [WL-C, WE-C].)
7	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [WL-C, WE-C].) (See FUEL INJECTOR INSPECTION [WL-C, WE-C].)
8	Check valve
9	Fuel warmer (European (L.H.D.) specs.) (See FUEL FILTER REMOVAL/INSTALLATION [WL-C, WE-C].) (See FUEL WARMER INSPECTION (European (L.H.D.) specs.) [WL-C, WE-C].)

Fuel Tank Side

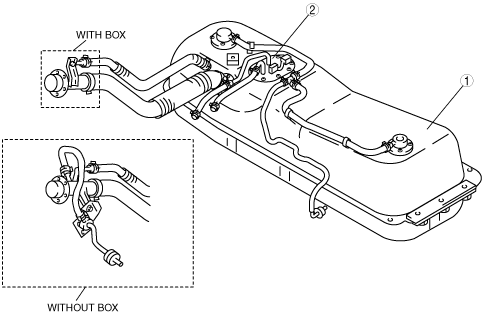

Double cab 4x2 (Except High clearance model), Freestyle cab 4x2 (Except High clearance model)

absggw00000462

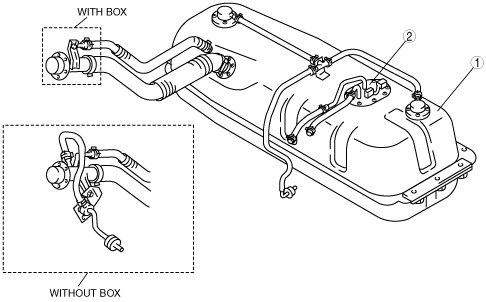

Regular cab, Double cab 4x4, Freestyle cab 4x4, High clearance model

absggw00000463

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [WL-C, WE-C].) (See FUEL TANK INSPECTION [WL-C, WE-C].)
2	Fuel gauge sender unit
