DTC B1317, B1318

id040200800300

DTC

B1317, B1318

Power supply system

DETECTION CONDITION

•  B1317

―  The voltage at ABS HU/CM terminal J 16.8 V or more.

•  B1318

―  The vehicle speed exceeds 6 km/h {3.7 mph}and the voltage at ABS HU/CM terminal J is less than 9.6 V.

POSSIBLE CAUSE

•  ENGINE 15 A fuse malfunction

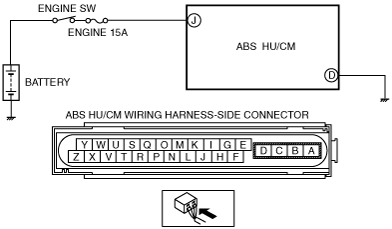

•  Open circuit or short to ground in the wiring harness between the ABS HU/CM terminal J and the battery

•  Open circuit or faulty ground in the wiring harness between the ABS HU/CM terminal D and the body ground

•  Battery deterioration

•  Generator malfunction

•  Poor connection at connectors (female terminal)

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT BATTERY VOLTAGE • Is the battery terminal voltage normal?	Yes	Make sure that battery terminal connection is normal. Go to the next step.
1		No	Charge or replace the battery, then go to Step 6. (See BATTERY RECHARGING [G6].) (See BATTERY RECHARGING [WLT-1, WLT-2, WL-3, WL-C, WE-C].) (See BATTERY REMOVAL/INSTALLATION [G6].) (See BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)
2	INSPECT BATTERY GRAVITY • Is battery specific gravity as specified?	Yes	Go to the next step.
2		No	Replace the battery, then go to Step 6. (See BATTERY REMOVAL/INSTALLATION [G6].) (See BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)
3	INSPECT CHARGING SYSTEM • Are the generator and drive belt tensions normal?	Yes	Go to the next step.
3		No	Inspect generator and/or drive belt as necessary, then go to Step 6. (See DRIVE BELT INSPECTION [G6].) (See DRIVE BELT INSPECTION [WLT-1, WLT-2].) (See DRIVE BELT INSPECTION [WL-3].) (See DRIVE BELT INSPECTION [WL-C, WE-C].) (See GENERATOR INSPECTION [G6].) (See GENERATOR INSPECTION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)
4	INSPECT ABS HU/CM POWER SUPPLY FOR OPEN CIRCUIT • Start the engine. • Measure the voltage between ABS HU/CM terminal J and ground. • Is the voltage approx. 10 V?	Yes	Go to the next step.
4		No	Repair or replace the wiring harness for open circuit between the ABS HU/CM and ground, then go to Step 6.
5	INSPECT ABS HU/CM GROUND FOR POOR GROUND OR OPEN CIRCUIT • Turn the ignition switch or engine switch off. • Measure the resistance between ground and ABS HU/CM terminal D. • Is the resistance within 0—1 ohm?	Yes	Go to the next step.
5		No	If there is no continuity: • Repair or replace the wiring harness for open circuit between the ABS HU/CM and ground, then go to the next step. If the resistance is not within 0—1 ohm: • Repair or replace harness for poor ground, then go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Clear the DTC from the memory. (See ON-BOARD DIAGNOSIS.) • Start the engine and drive the vehicle at 6 km/h {3.5 mph} or more. • Is the same DTC present?	Yes	Replace the ABS HU/CM, then go to the next step. (See ABS HU/CM REMOVAL/INSTALLATION.)
6		No	Go to the next step.
7	VERIFY AFTER REPAIR PROCEDURE • Are any other DTCs present?	Yes	Go to the applicable DTC inspection. (See ON-BOARD DIAGNOSIS.)
7		No	DTC troubleshooting completed.

DTC	B1317, B1318		Power supply system
DETECTION CONDITION		• B1317 ― The voltage at ABS HU/CM terminal J 16.8 V or more. • B1318 ― The vehicle speed exceeds 6 km/h {3.7 mph}and the voltage at ABS HU/CM terminal J is less than 9.6 V.
POSSIBLE CAUSE		• ENGINE 15 A fuse malfunction • Open circuit or short to ground in the wiring harness between the ABS HU/CM terminal J and the battery • Open circuit or faulty ground in the wiring harness between the ABS HU/CM terminal D and the body ground • Battery deterioration • Generator malfunction • Poor connection at connectors (female terminal)
