CLUTCH PEDAL REMOVAL/INSTALLATION
id051000801200
L.H.D.
1. Disconnect the negative battery cable.
2. Remove the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, adjust the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT.)

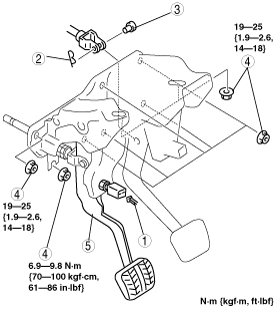

arnffw00001597
|
|
1
|
Clutch switch connector
|
|
2
|
Spring pin
|
|
3
|
Clevis pin
|
|
4
|
Nut
|
|
5
|
Clutch pedal component
|
R.H.D.
1. The clutch pedal is mounted on the bracket integrated with the brake pedal and accelerator pedal. Refer to section 01, INTAKE AIR SYSTEM, ACCELERATOR PEDAL REMOVAL/INSTALLATION for the brake pedal removal/installation. (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-3].) (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-C, WE-C].)
