HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

absggw00001146

absggw00001147

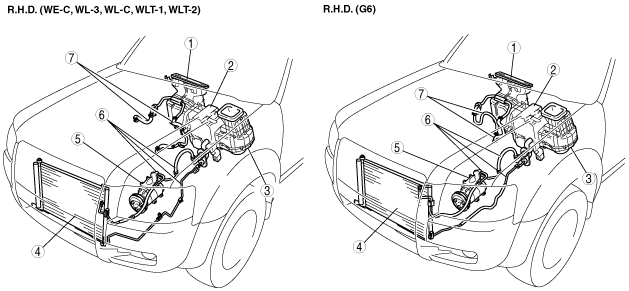

1	Heater unit (See HEATER UNIT REMOVAL/INSTALLATION.) (See HEATER UNIT DISASSEMBLY/ASSEMBLY.) (See HEATER CORE INSPECTION.)
2	Cooling unit (See COOLING UNIT REMOVAL/INSTALLATION.) (See COOLING UNIT DISASSEMBLY/ASSEMBLY.)
3	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
4	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
5	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
6	Refrigerant line (See REFRIGERANT LINES REMOVAL/INSTALLATION.)
7	Heater hose
