DTC P02CA:00 [PCM (SKYACTIV-D 2.2)]

id0102j5212200

Engine Type

Item

Reference

Fuel injector (2 pin type)

(See Fuel Injector (2 pin type).)

Fuel injector (6 pin type), without SCR System

(See Fuel Injector (6 pin type), Without SCR System.)

Fuel injector (6 pin type), with SCR System

(See Fuel Injector (6 pin type), With SCR System.)

Item	Reference
Fuel injector (2 pin type)	(See Fuel Injector (2 pin type).)
Fuel injector (6 pin type), without SCR System	(See Fuel Injector (6 pin type), Without SCR System.)
Fuel injector (6 pin type), with SCR System	(See Fuel Injector (6 pin type), With SCR System.)

Note

• To determine the malfunctioning part, proceed with the diagnostics from “Function Inspection Using M-MDS”.

Fuel Injector (2 pin type)

Details On DTCs

DESCRIPTION

Large-type turbocharger overboost condition

DETECTION CONDITION

Determination conditions

•  As the result of comparing the actual air charging pressure with the target air charging pressure, the actual air charging pressure exceeds the specified value higher than the target air charging pressure for a continuous 7 s.

Preconditions

•  2 s have elapsed with all of the following conditions met when diesel particulate filter regeneration control is stopped during boost control feedback:

―  Fuel injection amount: 25 mm³/stoke or more

―  Engine speed: 2,000—5,000 rpm

―  Battery voltage: 8 V or more

―  Time from engine start: 15 s or more

Drive cycle

•  2

Self test type

•  CMDTC self test

Sensor used

•  MAP sensor No.2

FAIL-SAFE FUNCTION

•  Not applicable

VEHICLE STATUS WHEN DTCs ARE OUTPUT

•  Check engine light is illuminated

POSSIBLE CAUSE

•  Erratic signal to PCM

―  MAP sensor No.2 signal malfunction

―  Input signal part connector or terminals malfunction

―  Input signal part related circuit malfunction

•  Wastegate solenoid valve malfunction

•  Compressor bypass solenoid valve malfunction

•  Vacuum piping or positive pressure piping of wastegate valve malfunction

•  Vacuum piping or positive pressure piping of compressor bypass valve malfunction

•  PCM malfunction

DESCRIPTION	Large-type turbocharger overboost condition
DETECTION CONDITION	Determination conditions	• As the result of comparing the actual air charging pressure with the target air charging pressure, the actual air charging pressure exceeds the specified value higher than the target air charging pressure for a continuous 7 s.
Preconditions	• 2 s have elapsed with all of the following conditions met when diesel particulate filter regeneration control is stopped during boost control feedback: ― Fuel injection amount: 25 mm³/stoke or more ― Engine speed: 2,000—5,000 rpm ― Battery voltage: 8 V or more ― Time from engine start: 15 s or more
Drive cycle	• 2
Self test type	• CMDTC self test
Sensor used	• MAP sensor No.2
FAIL-SAFE FUNCTION	• Not applicable
VEHICLE STATUS WHEN DTCs ARE OUTPUT	• Check engine light is illuminated
POSSIBLE CAUSE	• Erratic signal to PCM ― MAP sensor No.2 signal malfunction ― Input signal part connector or terminals malfunction ― Input signal part related circuit malfunction • Wastegate solenoid valve malfunction • Compressor bypass solenoid valve malfunction • Vacuum piping or positive pressure piping of wastegate valve malfunction • Vacuum piping or positive pressure piping of compressor bypass valve malfunction • PCM malfunction

System Wiring Diagram

• Not applicable

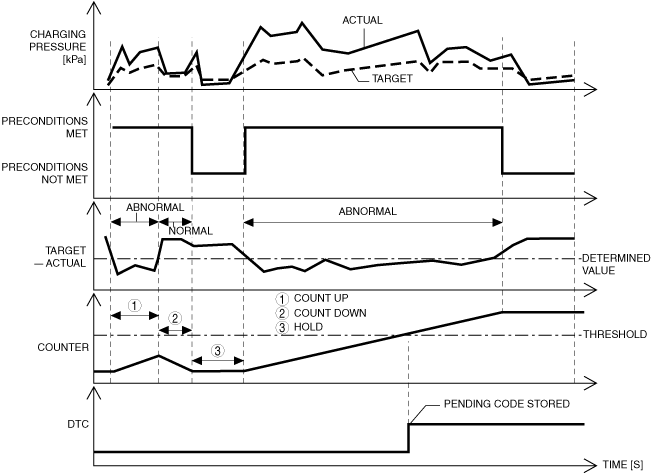

Function Explanation (DTC Detection Outline)

• The PCM diagnoses the large-type turbo system performance by comparing the target air charging pressure with the actual.

• The PCM uses the manifold absolute pressure sensor to monitor the intake manifold pressure during boost control as the actual air charging pressure.

• When the monitoring conditions are met during boost control, the PCM compares the target air charging pressure with the actual. If the actual air charging pressure is higher than the specification for the target air charging pressure, the PCM determines an excess air charging malfunction.

• The PCM performs diagnosis when each of the preconditions during drive cycle is met. If a malfunction is detected, the malfunction detection counter begins counting up. The value of the malfunction detection counter is maintained while the preconditions are not being met. If the cumulative value of the malfunction detection counter exceeds the threshold during the first drive cycle, a malfunction is determined and a pending code is stored.

• If the PCM determines that the malfunction recurs from the next drive cycle and thereafter, it stores a DTC and turns on the check engine light.

am6zzw00014396

Repeatability Verification Procedure

Caution

• When the M-MDS is used to observe monitor system status while driving, be sure to have another technician with you, or record the data in the M-MDS using the PID/DATA MONITOR AND RECORD capturing function and inspect later.

• While performing this step, always operate the vehicle in a safe and lawful manner.

1. Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

― MAP_DSD

― MAP

― REGVP_DSD

2. Start the engine and warm it up completely.

3. Accelerate for 20 s with all of the following conditions met:

― Gear position: 2nd

― Engine speed: 2,000—4,500 rpm

4. Verify the difference between the target air charging pressure and the actual air charging pressure while the target value (PID: REGVP_DSD) of the regulating valve position is less than 5 mm {0.2 in}, and verify that the pressure difference of 30 kPa {0.31 kgf/cm², 4.4 psi} or more does not continue for 3 s.

PID Item/Simulation Item Used In Diagnosis

PID/DATA monitor item table

Item	Definition	Unit	Condition/Specification
MAP_DSD	Manifold absolute pressure desired value	KPa {MPa}, mBar {Bar}, psi, in H20	• Displays the boost air pressure desired value
MAP	Manifold absolute pressure	KPa {MPa}, mBar {Bar}, psi, in H20	• Switch ignition ON (engine off): Approx. 100 kPa {1 bar, 14.5 psi} • Idle: Approx. 80 kPa {0.8 bar, 12 psi}
REGVP_DSD	Regulating valve position desired value	mm {in}	• Displays the distance since last diesel particulate filter regeneration.

Function Inspection Using M-MDS

STEP

INSPECTION

ACTION

1

PURPOSE: VERIFY RELATED SERVICE INFORMATION AVAILABILITY

•  Verify related Service Information availability.

•  Is any related Service Information available?

Yes

Perform repair or diagnosis according to the available Service Information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

2

PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA

•  Is the DTC P02CA:00 on FREEZE FRAME DATA?

Yes

Go to the next step.

No

Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

3

PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the FREEZE FRAME DATA/snapshot data on the repair order.

—

Go to the next step.

4

PURPOSE: VERIFY IF DIAGNOSTIC RESULT IS AFFECTED BY OTHER RELATED DTCs OCCURRING

•  Switch the ignition off, then ON (engine off).

•  Perform the Pending Trouble Code Access Procedure and DTC Reading Procedure.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Is the other PENDING CODE/DTC also present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

Go to the next step.

5

PURPOSE: VERIFY IF THERE IS PID ITEM CAUSING DRASTIC CHANGES OF ACCELERATION FLUCTUATION BY INPUT SIGNAL TO PCM

•  Access the following PIDs using the M-MDS:
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

―  MAP_DSD

―  MAP

•  Is there any signal that is far out of specification?

Yes

Go to the next step.

No

Go to the troubleshooting procedure to perform the procedure from Step 1.

6

PURPOSE: VERIFY CONNECTOR CONNECTIONS

•  Access the following PIDs using the M-MDS:
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

―  MAP_DSD

―  MAP

•  When the following parts are shaken, does the PID value include a PID item which has changed?

―  MAP sensor No.2

―  PCM

Yes

Inspect the related wiring harness and connector.

•  Repair or replace the malfunctioning part.

Go to the troubleshooting procedure to perform the procedure from Step 5.

No

Go to the troubleshooting procedure to perform the procedure from Step 1.

STEP	INSPECTION	ACTION
1	PURPOSE: VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
No	Go to the next step.
2	PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA • Is the DTC P02CA:00 on FREEZE FRAME DATA?	Yes	Go to the next step.
No	Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
3	PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the FREEZE FRAME DATA/snapshot data on the repair order.	—	Go to the next step.
4	PURPOSE: VERIFY IF DIAGNOSTIC RESULT IS AFFECTED BY OTHER RELATED DTCs OCCURRING • Switch the ignition off, then ON (engine off). • Perform the Pending Trouble Code Access Procedure and DTC Reading Procedure. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) • Is the other PENDING CODE/DTC also present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
No	Go to the next step.
5	PURPOSE: VERIFY IF THERE IS PID ITEM CAUSING DRASTIC CHANGES OF ACCELERATION FLUCTUATION BY INPUT SIGNAL TO PCM • Access the following PIDs using the M-MDS: (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) ― MAP_DSD ― MAP • Is there any signal that is far out of specification?	Yes	Go to the next step.
No	Go to the troubleshooting procedure to perform the procedure from Step 1.
6	PURPOSE: VERIFY CONNECTOR CONNECTIONS • Access the following PIDs using the M-MDS: (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) ― MAP_DSD ― MAP • When the following parts are shaken, does the PID value include a PID item which has changed? ― MAP sensor No.2 ― PCM	Yes	Inspect the related wiring harness and connector. • Repair or replace the malfunctioning part. Go to the troubleshooting procedure to perform the procedure from Step 5.
No	Go to the troubleshooting procedure to perform the procedure from Step 1.

Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure

• Step 1—2

― Perform inspection of each separate part.

• Step 3—4

― Perform inspection of piping and hoses.

• Step 5—6

― Verify that the primary malfunction is resolved and there are no other malfunctions.

STEP

INSPECTION

ACTION

1

PURPOSE: INSPECT WASTEGATE SOLENOID VALVE

•  Inspect the wastegate solenoid valve.
(See WASTEGATE SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].)

•  Is there any malfunction?

Yes

Replace the wastegate solenoid valve, then go to Step 5.

(See WASTEGATE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

2

PURPOSE: INSPECT COMPRESSOR BYPASS SOLENOID VALVE

•  Inspect the compressor bypass solenoid valve.
(See COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].)

•  Is there any malfunction?

Yes

Replace the compressor bypass solenoid valve, then go to Step 5.

(See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

3

PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF WASTEGATE VALVE

•  Inspect vacuum piping and positive pressure piping of wastegate valve.
(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

•  Is there hose leakage or damage in the vacuum piping and positive pressure piping?

Yes

Repair or replace the malfunctioning part according to the inspection results, then go to Step 5.

No

Go to the next step.

4

PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF COMPRESSOR BYPASS VALVE

•  Inspect vacuum piping and positive pressure piping of compressor bypass valve.
(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

•  Is there hose leakage or damage in the vacuum piping and positive pressure piping?

Yes

Repair or replace the malfunctioning part according to the inspection results, then go to the next step.

No

Go to the next step.

5

PURPOSE: PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING PART IS PCM

•  Always reconnect all disconnected connectors.

•  Clear the DTC from the PCM memory using the M-MDS.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

•  Implement the repeatability verification procedure.
(See Repeatability Verification Procedure.)

•  Perform the Pending Trouble Code Access Procedure.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Is the PENDING CODE for this DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

Go to the next step.

No

Go to the next step.

6

PURPOSE: VERIFY AFTER REPAIR PROCEDURE

•  Perform the “AFTER REPAIR PROCEDURE”.
(See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-D 2.2)].)

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

DTC troubleshooting completed.

STEP	INSPECTION	ACTION
1	PURPOSE: INSPECT WASTEGATE SOLENOID VALVE • Inspect the wastegate solenoid valve. (See WASTEGATE SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].) • Is there any malfunction?	Yes	Replace the wastegate solenoid valve, then go to Step 5. (See WASTEGATE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
No	Go to the next step.
2	PURPOSE: INSPECT COMPRESSOR BYPASS SOLENOID VALVE • Inspect the compressor bypass solenoid valve. (See COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].) • Is there any malfunction?	Yes	Replace the compressor bypass solenoid valve, then go to Step 5. (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
No	Go to the next step.
3	PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF WASTEGATE VALVE • Inspect vacuum piping and positive pressure piping of wastegate valve. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) • Is there hose leakage or damage in the vacuum piping and positive pressure piping?	Yes	Repair or replace the malfunctioning part according to the inspection results, then go to Step 5.
No	Go to the next step.
4	PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF COMPRESSOR BYPASS VALVE • Inspect vacuum piping and positive pressure piping of compressor bypass valve. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) • Is there hose leakage or damage in the vacuum piping and positive pressure piping?	Yes	Repair or replace the malfunctioning part according to the inspection results, then go to the next step.
No	Go to the next step.
5	PURPOSE: PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING PART IS PCM • Always reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)].) • Implement the repeatability verification procedure. (See Repeatability Verification Procedure.) • Perform the Pending Trouble Code Access Procedure. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) • Is the PENDING CODE for this DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) Go to the next step.
No	Go to the next step.
6	PURPOSE: VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-D 2.2)].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
No	DTC troubleshooting completed.

Fuel Injector (6 pin type), Without SCR System

Details on DTCs

System malfunction location

Large-type turbocharger area control system: Overboost

Detection condition

Determination condition

•  As the result of comparing the actual boost pressure with the target boost pressure, the actual boost pressure exceeds the specification higher than the target boost pressure for a continuous 7 s.

Preconditions

•  All of the following conditions are met when diesel particulate filter regeneration control is stopped during boost control feedback

―  Fuel injection amount: 20 mm³/st or more

―  Engine speed: 2,000—6,000 rpm or more

―  Battery positive voltage: 11 V or more

―  Engine torque down request by G-vectoring control (GVC): Less than 25 N·m {2.5 kgf·m, 18 ft·lbf}

―  G-vectoring control (GVC) operation duration time: Less than 3 s

―  Barometric pressure: 70—200 kPa {0.72—2.03 kgf/cm², 11.0—29.0 psi}

―  Ambient temperature: -10—100 °C {14—212 °F}

―  Engine coolant temperature: -10—120 °C {14—248 °F}

―  Not during deceleration

―  The following DTCs are not detected

•  ECT sensor: P0117:00, P0118:00

•  IAT sensor No.1: P0112:00, P0113:00

•  MAP sensor No.2: P0106:00, P0107:00, P0108:00

•  BARO sensor: P2228:00, P2229:00

•  MAF sensor: P0102:00, P0103:00

•  Exhaust gas temperature sensor No.3: P242C:00, P242D:00

•  Exhaust gas pressure sensor No.2: P2454:00, P2455:00

•  CKP sensor: P0336:00, P0337:00

•  Intake shutter valve position sensor: P0122:00, P0123:00

•  Intake shutter valve control system: P1589:00, P2101:00, P2118:00

•  Regulating valve actuator: P0045:00, P0046:00, P16A5:00

•  Regulating valve actuator position sensor: P2564:00, P2565:00

•  MAP sensor No.1: P0236:00, P0237:00, P0238:00

•  Exhaust gas pressure sensor No.1: P0471:00, P0472:00, P0473:00

•  Exhaust gas temperature sensor No.1: P0545:00, P0546:00

•  Compressor bypass solenoid valve control system: P0034:00, P0035:00

•  Constant voltage power supply control system: P0642:00, P0643:00

•  MAP sensor No.2/BARO sensor: P0105:00

•  Exhaust gas pressure sensor No.1: P0470:00

•  Small-type turbocharger area control system: P0235:00

•  Variable turbine geometry turbocharger actuator position sensor: P2588:00, P2589:00

•  Turbocharger with variable turbine geometry: P004A:00, P004B:00, P16A6:00

Drive cycle

•  2

Self-test type

•  CMDTC self test

Sensor/unit used

•  MAP sensor

Fail-safe

•  Not applicable

Vehicle status when DTCs are output

•  Not applicable

Possible cause

•  PCM input signal error

―  MAP sensor signal

―  Input signal part connector or terminal malfunction

―  Input signal part-related wiring harness malfunction

•  Malfunction in vacuum piping and positive pressure piping of compressor bypass solenoid valve

•  Regulating valve actuator malfunction

•  Variable turbine geometry turbocharger actuator malfunction

•  Compressor bypass solenoid valve malfunction

•  Regulating valve actuator position sensor malfunction

•  Variable turbine geometry turbocharger actuator position sensor malfunction

•  PCM malfunction

System malfunction location	Large-type turbocharger area control system: Overboost
Detection condition	Determination condition	• As the result of comparing the actual boost pressure with the target boost pressure, the actual boost pressure exceeds the specification higher than the target boost pressure for a continuous 7 s.
Preconditions	• All of the following conditions are met when diesel particulate filter regeneration control is stopped during boost control feedback ― Fuel injection amount: 20 mm³/st or more ― Engine speed: 2,000—6,000 rpm or more ― Battery positive voltage: 11 V or more ― Engine torque down request by G-vectoring control (GVC): Less than 25 N·m {2.5 kgf·m, 18 ft·lbf} ― G-vectoring control (GVC) operation duration time: Less than 3 s ― Barometric pressure: 70—200 kPa {0.72—2.03 kgf/cm², 11.0—29.0 psi} ― Ambient temperature: -10—100 °C {14—212 °F} ― Engine coolant temperature: -10—120 °C {14—248 °F} ― Not during deceleration ― The following DTCs are not detected • ECT sensor: P0117:00, P0118:00 • IAT sensor No.1: P0112:00, P0113:00 • MAP sensor No.2: P0106:00, P0107:00, P0108:00 • BARO sensor: P2228:00, P2229:00 • MAF sensor: P0102:00, P0103:00 • Exhaust gas temperature sensor No.3: P242C:00, P242D:00 • Exhaust gas pressure sensor No.2: P2454:00, P2455:00 • CKP sensor: P0336:00, P0337:00 • Intake shutter valve position sensor: P0122:00, P0123:00 • Intake shutter valve control system: P1589:00, P2101:00, P2118:00 • Regulating valve actuator: P0045:00, P0046:00, P16A5:00 • Regulating valve actuator position sensor: P2564:00, P2565:00 • MAP sensor No.1: P0236:00, P0237:00, P0238:00 • Exhaust gas pressure sensor No.1: P0471:00, P0472:00, P0473:00 • Exhaust gas temperature sensor No.1: P0545:00, P0546:00 • Compressor bypass solenoid valve control system: P0034:00, P0035:00 • Constant voltage power supply control system: P0642:00, P0643:00 • MAP sensor No.2/BARO sensor: P0105:00 • Exhaust gas pressure sensor No.1: P0470:00 • Small-type turbocharger area control system: P0235:00 • Variable turbine geometry turbocharger actuator position sensor: P2588:00, P2589:00 • Turbocharger with variable turbine geometry: P004A:00, P004B:00, P16A6:00
Drive cycle	• 2
Self-test type	• CMDTC self test
Sensor/unit used	• MAP sensor
Fail-safe	• Not applicable
Vehicle status when DTCs are output	• Not applicable
Possible cause	• PCM input signal error ― MAP sensor signal ― Input signal part connector or terminal malfunction ― Input signal part-related wiring harness malfunction • Malfunction in vacuum piping and positive pressure piping of compressor bypass solenoid valve • Regulating valve actuator malfunction • Variable turbine geometry turbocharger actuator malfunction • Compressor bypass solenoid valve malfunction • Regulating valve actuator position sensor malfunction • Variable turbine geometry turbocharger actuator position sensor malfunction • PCM malfunction

System Wiring Diagram

• Not applicable

Function Explanation (DTC Detection Outline)

• The PCM diagnoses the large-type turbo system performance by comparing the target boost pressure with the actual.

• The PCM uses the manifold absolute pressure sensor to monitor the intake manifold pressure during boost control as the actual boost pressure.

• When the monitoring conditions are met during boost control, the PCM compares the target boost pressure with the actual. If the actual boost pressure is higher than the specification for the target boost pressure, the PCM determines an excess boost malfunction.

• The PCM performs diagnosis when each of the preconditions during drive cycle is met. If a malfunction is detected, the malfunction detection counter begins counting up. If it is normal, the counter begins counting down.

The value of the malfunction detection counter is maintained while the preconditions are not being met. If the cumulative value of the malfunction detection counter exceeds the threshold during the first drive cycle, a malfunction is determined and a pending code is stored.

• If the PCM determines that the malfunction recurs from the next drive cycle and thereafter, it stores a DTC.

ac5wzw00012276

Repeatability Verification Procedure

Warning

• To prevent an accident, work with another person when the vehicle is being driven (one person drives vehicle, other person operates M-MDS).

• Observe legal speed limits when driving the vehicle and perform the procedure in a location where safety can be assured.

1. Display PID MAP_DSD, INTK_MAPA, and REGVP using the M-MDS.

2. Start the engine and warm it up.

3. Accelerate in 2nd gear from 2,000 rpm to 4,500 rpm taking approx. 20 s.

4. Verify that the difference of more than 30 kPa {0.31 kgf/cm², 4.4 psi} does not continue for 3 s or more between the MAP_DSD and INTK_MAPA while accelerating with less than 5 mm of REGVP.

PID Item/Simulation Item Used in Diagnosis

PID

Item name	Outline	Unit	Display/condition
INTK_MAPA	Manifold absolute pressure (No.2)	kPa	• Displays the manifold absolute pressure (No.2).
MAP_DSD	Manifold absolute pressure (No.2) desired value	kPa	• Displays the manifold absolute pressure (No.2) desired value.
REGVP	Regulating valve actuator position	mm	• Displays the regulating valve actuator position.
REGVP_DSD	Target value for regulating valve actuator position sensor	mm	• Displays the target value for the regulating valve actuator position.
VGTURB_ACT	Variable turbine geometry turbocharger actuator position	%	• Displays the variable turbine geometry turbocharger actuator position.

Simulation item

Item name	Outline	Unit	Display/condition
VGTURB_DSD	Variable turbine geometry turbocharger actuator position	%	• Changes % and forcibly drives/stops the variable turbine geometry turbocharger actuator.

Function Inspection Using M-MDS

Step

Inspection

Results

Action

1

PURPOSE: VERIFY DTC CAUSING FREEZE FRAME DATA

•  Is DTC P02CA:00 causing the freeze frame data?

Yes

Go to the next step.

No

Inspect the DTC causing the freeze frame data.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

2

PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

―

Go to the next step.

3

PURPOSE: VERIFY OTHER RELATED DTCs

•  Switch the ignition OFF, and then switch it ON (engine off).

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Has any DTC other than P02CA:00 been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

Go to the next step.

4

PURPOSE: VERIFY MAP SENSOR INPUT SIGNAL

•  Start the engine and warm it up.

•  Display the following PIDs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

―  MAP_DSD

―  INTK_MAPA

•  Are the monitoring values normal?

Yes

Go to the troubleshooting procedure to perform the procedure from Step 1.

No

Go to the next step.

5

PURPOSE: INSPECT WIRING HARNESSES AND CONNECTORS FOR RELATED-SENSOR

•  Display the following PIDs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

―  MAP_DSD

―  INTK_MAPA

•  When the PCM and MAP sensor connector are shaken, does the PID value include a PID item which has changed?

Yes

Inspect the related wiring harnesses and connectors.

•  Repair or replace the malfunctioning location.

Go to the troubleshooting procedure to perform the procedure from Step 5.

No

Go to the troubleshooting procedure to perform the procedure from Step 1.

6

PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY REGULATING VALVE ACTUATOR POSITION SENSOR MALFUNCTION

•  Inspect the regulating valve actuator position sensor.
(See REGULATING VALVE ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the regulating valve actuator position sensor normal?

Yes

Go to the troubleshooting procedure to perform the procedure from Step 1.

No

Inspect the related wiring harnesses and connectors.

•  Repair or replace the malfunctioning location.

Go to the troubleshooting procedure to perform the procedure from Step 5.

7

PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR MALFUNCTION

•  Inspect the variable turbine geometry turbocharger actuator position sensor.
(See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the variable turbine geometry turbocharger actuator position sensor normal?

Yes

Go to the troubleshooting procedure to perform the procedure from Step 1.

No

Inspect the related wiring harnesses and connectors.

•  Repair or replace the malfunctioning location.

Go to the troubleshooting procedure to perform the procedure from Step 5.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY DTC CAUSING FREEZE FRAME DATA • Is DTC P02CA:00 causing the freeze frame data?	Yes	Go to the next step.
No	Inspect the DTC causing the freeze frame data. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
2	PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the freeze frame data/snap shot data.	―	Go to the next step.
3	PURPOSE: VERIFY OTHER RELATED DTCs • Switch the ignition OFF, and then switch it ON (engine off). • Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) • Has any DTC other than P02CA:00 been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
No	Go to the next step.
4	PURPOSE: VERIFY MAP SENSOR INPUT SIGNAL • Start the engine and warm it up. • Display the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) ― MAP_DSD ― INTK_MAPA • Are the monitoring values normal?	Yes	Go to the troubleshooting procedure to perform the procedure from Step 1.
No	Go to the next step.
5	PURPOSE: INSPECT WIRING HARNESSES AND CONNECTORS FOR RELATED-SENSOR • Display the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) ― MAP_DSD ― INTK_MAPA • When the PCM and MAP sensor connector are shaken, does the PID value include a PID item which has changed?	Yes	Inspect the related wiring harnesses and connectors. • Repair or replace the malfunctioning location. Go to the troubleshooting procedure to perform the procedure from Step 5.
No	Go to the troubleshooting procedure to perform the procedure from Step 1.
6	PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY REGULATING VALVE ACTUATOR POSITION SENSOR MALFUNCTION • Inspect the regulating valve actuator position sensor. (See REGULATING VALVE ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].) • Is the regulating valve actuator position sensor normal?	Yes	Go to the troubleshooting procedure to perform the procedure from Step 1.
No	Inspect the related wiring harnesses and connectors. • Repair or replace the malfunctioning location. Go to the troubleshooting procedure to perform the procedure from Step 5.
7	PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR MALFUNCTION • Inspect the variable turbine geometry turbocharger actuator position sensor. (See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2].) • Is the variable turbine geometry turbocharger actuator position sensor normal?	Yes	Go to the troubleshooting procedure to perform the procedure from Step 1.
No	Inspect the related wiring harnesses and connectors. • Repair or replace the malfunctioning location. Go to the troubleshooting procedure to perform the procedure from Step 5.

Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure

• Step 1

― Perform the inspection of piping for the intake air system.

• Steps 2 to 4

― Perform inspection of each separate part.

• Steps 5 to 6

― Verify that the primary malfunction is resolved and there are no other malfunctions.

Step

Inspection

Results

Action

1

PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF COMPRESSOR BYPASS SOLENOID VALVE

•  Inspect the vacuum piping and positive pressure piping of the compressor bypass solenoid valve.
(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

•  Is there hose leakage or damage in the vacuum piping and positive pressure piping?

Yes

Repair or replace the malfunctioning location, then go to Step 5.

No

Go to the next step.

2

PURPOSE: INSPECT COMPRESSOR BYPASS SOLENOID VALVE

•  Inspect the compressor bypass solenoid valve.
(See COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].)

•  Is the compressor bypass solenoid valve normal?

Yes

Go to the next step.

No

Replace the compressor bypass solenoid valve, then go to Step 5.

(See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3

PURPOSE: INSPECT REGULATING VALVE ACTUATOR

•  Inspect the regulating valve actuator.
(See REGULATING VALVE ACTUATOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the regulating valve actuator normal?

Yes

Go to the next step.

No

Replace the regulating valve actuator, then go to Step 5.

(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4

PURPOSE: INSPECT VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR

•  Inspect the variable turbine geometry turbocharger actuator.
(See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the variable turbine geometry turbocharger actuator normal?

Yes

Go to the next step.

No

Replace the variable turbine geometry turbocharger actuator, then go to Step 5.

(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5

PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION

•  Reconnect all disconnected connectors and hoses.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

•  Implement the repeatability verification procedure.
(See Repeatability Verification Procedure.)

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Is DTC P02CA:00 displayed?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

6

PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF COMPRESSOR BYPASS SOLENOID VALVE • Inspect the vacuum piping and positive pressure piping of the compressor bypass solenoid valve. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) • Is there hose leakage or damage in the vacuum piping and positive pressure piping?	Yes	Repair or replace the malfunctioning location, then go to Step 5.
No	Go to the next step.
2	PURPOSE: INSPECT COMPRESSOR BYPASS SOLENOID VALVE • Inspect the compressor bypass solenoid valve. (See COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].) • Is the compressor bypass solenoid valve normal?	Yes	Go to the next step.
No	Replace the compressor bypass solenoid valve, then go to Step 5. (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
3	PURPOSE: INSPECT REGULATING VALVE ACTUATOR • Inspect the regulating valve actuator. (See REGULATING VALVE ACTUATOR INSPECTION [SKYACTIV-D 2.2].) • Is the regulating valve actuator normal?	Yes	Go to the next step.
No	Replace the regulating valve actuator, then go to Step 5. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4	PURPOSE: INSPECT VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR • Inspect the variable turbine geometry turbocharger actuator. (See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR INSPECTION [SKYACTIV-D 2.2].) • Is the variable turbine geometry turbocharger actuator normal?	Yes	Go to the next step.
No	Replace the variable turbine geometry turbocharger actuator, then go to Step 5. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5	PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION • Reconnect all disconnected connectors and hoses. • Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)].) • Implement the repeatability verification procedure. (See Repeatability Verification Procedure.) • Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) • Is DTC P02CA:00 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
No	Go to the next step.
6	PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION • Has any other DTC or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
No	DTC troubleshooting completed.

Fuel Injector (6 pin type), With SCR System

Details on DTCs

System malfunction location

Large-type turbocharger area control system: Overboost

Detection condition

Determination condition

•  As the result of comparing the actual boost pressure with the target boost pressure, the actual boost pressure exceeds the specification higher than the target boost pressure for a continuous 7 s.

Preconditions

•  All of the following conditions are met when diesel particulate filter regeneration control is stopped during boost control feedback

―  Fuel injection amount: 20 mm³/st or more

―  Engine speed: 1,750—6,000 rpm

―  Battery positive voltage: 11 V or more

―  Engine torque down request by G-vectoring control (GVC): Less than 25 N·m {2.5 kgf·m, 18 ft·lbf}

―  G-vectoring control (GVC) operation duration time: Less than 3 s

―  Barometric pressure: 70—200 kPa {0.72—2.03 kgf/cm², 11.0—29.0 psi}

―  Ambient temperature: -10—100 °C {14—212 °F}

―  Engine coolant temperature: -10—120 °C {14—248 °F}

―  Not during deceleration

―  The following DTCs are not detected

•  ECT sensor: P0117:00, P0118:00

•  IAT sensor No.1: P0112:00, P0113:00

•  MAP sensor No.2: P0106:00, P0107:00, P0108:00

•  BARO sensor: P2228:00, P2229:00

•  MAF sensor: P0102:00, P0103:00

•  Exhaust gas temperature sensor No.3: P242C:00, P242D:00

•  Exhaust gas pressure sensor No.2: P2454:00, P2455:00

•  CKP sensor: P0336:00, P0337:00

•  Intake shutter valve position sensor: P0122:00, P0123:00

•  Intake shutter valve control system: P1589:00, P2101:00, P2118:00

•  Regulating valve actuator: P0045:00, P0046:00, P16A5:00

•  Regulating valve actuator position sensor: P2564:00, P2565:00

•  MAP sensor No.1: P0236:00, P0237:00, P0238:00

•  Exhaust gas pressure sensor No.1: P0471:00, P0472:00, P0473:00

•  Exhaust gas temperature sensor No.1: P0545:00, P0546:00

•  Compressor bypass solenoid valve control system: P0034:00, P0035:00

•  Constant voltage power supply control system: P0642:00, P0643:00

•  MAP sensor No.2/BARO sensor: P0105:00

•  Exhaust gas pressure sensor No.1: P0470:00

•  Small-type turbocharger area control system: P0235:00

•  Variable turbine geometry turbocharger actuator position sensor: P2588:00, P2589:00

•  Turbocharger with variable turbine geometry: P004A:00, P004B:00, P16A6:00

Drive cycle

•  2

Self-test type

•  CMDTC self test

Sensor/unit used

•  MAP sensor

Fail-safe

•  Not applicable

Vehicle status when DTCs are output

•  Not applicable

Possible cause

•  PCM input signal error

―  MAP sensor signal

―  Input signal part connector or terminal malfunction

―  Input signal part-related wiring harness malfunction

•  Malfunction in vacuum piping and positive pressure piping of compressor bypass solenoid valve

•  Regulating valve actuator malfunction

•  Variable turbine geometry turbocharger actuator malfunction

•  Compressor bypass solenoid valve malfunction

•  Regulating valve actuator position sensor malfunction

•  Variable turbine geometry turbocharger actuator position sensor malfunction

•  PCM malfunction

System malfunction location	Large-type turbocharger area control system: Overboost
Detection condition	Determination condition	• As the result of comparing the actual boost pressure with the target boost pressure, the actual boost pressure exceeds the specification higher than the target boost pressure for a continuous 7 s.
Preconditions	• All of the following conditions are met when diesel particulate filter regeneration control is stopped during boost control feedback ― Fuel injection amount: 20 mm³/st or more ― Engine speed: 1,750—6,000 rpm ― Battery positive voltage: 11 V or more ― Engine torque down request by G-vectoring control (GVC): Less than 25 N·m {2.5 kgf·m, 18 ft·lbf} ― G-vectoring control (GVC) operation duration time: Less than 3 s ― Barometric pressure: 70—200 kPa {0.72—2.03 kgf/cm², 11.0—29.0 psi} ― Ambient temperature: -10—100 °C {14—212 °F} ― Engine coolant temperature: -10—120 °C {14—248 °F} ― Not during deceleration ― The following DTCs are not detected • ECT sensor: P0117:00, P0118:00 • IAT sensor No.1: P0112:00, P0113:00 • MAP sensor No.2: P0106:00, P0107:00, P0108:00 • BARO sensor: P2228:00, P2229:00 • MAF sensor: P0102:00, P0103:00 • Exhaust gas temperature sensor No.3: P242C:00, P242D:00 • Exhaust gas pressure sensor No.2: P2454:00, P2455:00 • CKP sensor: P0336:00, P0337:00 • Intake shutter valve position sensor: P0122:00, P0123:00 • Intake shutter valve control system: P1589:00, P2101:00, P2118:00 • Regulating valve actuator: P0045:00, P0046:00, P16A5:00 • Regulating valve actuator position sensor: P2564:00, P2565:00 • MAP sensor No.1: P0236:00, P0237:00, P0238:00 • Exhaust gas pressure sensor No.1: P0471:00, P0472:00, P0473:00 • Exhaust gas temperature sensor No.1: P0545:00, P0546:00 • Compressor bypass solenoid valve control system: P0034:00, P0035:00 • Constant voltage power supply control system: P0642:00, P0643:00 • MAP sensor No.2/BARO sensor: P0105:00 • Exhaust gas pressure sensor No.1: P0470:00 • Small-type turbocharger area control system: P0235:00 • Variable turbine geometry turbocharger actuator position sensor: P2588:00, P2589:00 • Turbocharger with variable turbine geometry: P004A:00, P004B:00, P16A6:00
Drive cycle	• 2
Self-test type	• CMDTC self test
Sensor/unit used	• MAP sensor
Fail-safe	• Not applicable
Vehicle status when DTCs are output	• Not applicable
Possible cause	• PCM input signal error ― MAP sensor signal ― Input signal part connector or terminal malfunction ― Input signal part-related wiring harness malfunction • Malfunction in vacuum piping and positive pressure piping of compressor bypass solenoid valve • Regulating valve actuator malfunction • Variable turbine geometry turbocharger actuator malfunction • Compressor bypass solenoid valve malfunction • Regulating valve actuator position sensor malfunction • Variable turbine geometry turbocharger actuator position sensor malfunction • PCM malfunction

System Wiring Diagram

• Not applicable

Function Explanation (DTC Detection Outline)

• The PCM diagnoses the large-type turbo system performance by comparing the target boost pressure with the actual.

• The PCM uses the manifold absolute pressure sensor to monitor the intake manifold pressure during boost control as the actual boost pressure.

• If the PCM determines that the malfunction recurs from the next drive cycle and thereafter, it stores a DTC.

am6zzw00014396

Repeatability Verification Procedure

Warning

• To prevent an accident, work with another person when the vehicle is being driven (one person drives vehicle, other person operates M-MDS).

• Observe legal speed limits when driving the vehicle and perform the procedure in a location where safety can be assured.

1. Display PID MAP_DSD, INTK_MAPA, and REGVP using the M-MDS.

2. Start the engine and warm it up.

3. Accelerate in 2nd gear from 2,000 rpm to 4,500 rpm taking approx. 20 s.

4. Verify that the difference of more than 30 kPa {0.31 kgf/cm², 4.4 psi} does not continue for 3 s or more between the MAP_DSD and INTK_MAPA while accelerating with less than 5 mm of REGVP.

PID Item/Simulation Item Used in Diagnosis

PID

Item name	Outline	Unit	Display/condition
INTK_MAPA	Manifold absolute pressure (No.2)	kPa	• Displays the manifold absolute pressure (No.2).
MAP_DSD	Manifold absolute pressure (No.2) desired value	kPa	• Displays the manifold absolute pressure (No.2) desired value.
REGVP	Regulating valve actuator position	mm	• Displays the regulating valve actuator position.
REGVP_DSD	Target value for regulating valve actuator position sensor	mm	• Displays the target value for the regulating valve actuator position.
VGTURB_ACT	Variable turbine geometry turbocharger actuator position	%	• Displays the variable turbine geometry turbocharger actuator position.

Simulation item

Item name	Outline	Unit	Display/condition
VGTURB_DSD	Variable turbine geometry turbocharger actuator position	%	• Changes % and forcibly drives/stops the variable turbine geometry turbocharger actuator.

Function Inspection Using M-MDS

Step

Inspection

Results

Action

1

PURPOSE: VERIFY DTC CAUSING FREEZE FRAME DATA

•  Is DTC P02CA:00 causing the freeze frame data?

Yes

Go to the next step.

No

Inspect the DTC causing the freeze frame data.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

2

PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

―

Go to the next step.

3

PURPOSE: VERIFY OTHER RELATED DTCs

•  Switch the ignition OFF, and then switch it ON (engine off).

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)])

•  Has any DTC other than P02CA:00 been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

Go to the next step.

4

PURPOSE: VERIFY MAP SENSOR INPUT SIGNAL

•  Start the engine and warm it up.

•  Display the following PIDs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)])

―  MAP_DSD

―  INTK_MAPA

•  Are the monitoring values normal?

Yes

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

No

Go to the next step.

5

PURPOSE: INSPECT WIRING HARNESSES AND CONNECTORS FOR RELATED-SENSOR

•  Display the following PIDs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)])

―  MAP_DSD

―  INTK_MAPA

•  When the PCM and MAP sensor connector are shaken, does the PID value include a PID item which has changed?

Yes

Inspect the related wiring harnesses and connectors.

•  Repair or replace the malfunctioning location.

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 5.

No

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

6

PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY REGULATING VALVE ACTUATOR POSITION SENSOR MALFUNCTION

•  Inspect the regulating valve actuator position sensor.
(See REGULATING VALVE ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2])

•  Is the regulating valve actuator position sensor normal?

Yes

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

No

Inspect the related wiring harnesses and connectors.

•  Repair or replace the malfunctioning location.

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 5.

7

PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR MALFUNCTION

•  Inspect the variable turbine geometry turbocharger actuator position sensor.
(See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2])

•  Is the variable turbine geometry turbocharger actuator position sensor normal?

Yes

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

No

Inspect the related wiring harnesses and connectors.

•  Repair or replace the malfunctioning location.

Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 5.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY DTC CAUSING FREEZE FRAME DATA • Is DTC P02CA:00 causing the freeze frame data?	Yes	Go to the next step.
No	Inspect the DTC causing the freeze frame data. (See DTC TABLE [PCM (SKYACTIV-D 2.2)])
2	PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the freeze frame data/snap shot data.	―	Go to the next step.
3	PURPOSE: VERIFY OTHER RELATED DTCs • Switch the ignition OFF, and then switch it ON (engine off). • Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)]) • Has any DTC other than P02CA:00 been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)])
No	Go to the next step.
4	PURPOSE: VERIFY MAP SENSOR INPUT SIGNAL • Start the engine and warm it up. • Display the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)]) ― MAP_DSD ― INTK_MAPA • Are the monitoring values normal?	Yes	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.
No	Go to the next step.
5	PURPOSE: INSPECT WIRING HARNESSES AND CONNECTORS FOR RELATED-SENSOR • Display the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)]) ― MAP_DSD ― INTK_MAPA • When the PCM and MAP sensor connector are shaken, does the PID value include a PID item which has changed?	Yes	Inspect the related wiring harnesses and connectors. • Repair or replace the malfunctioning location. Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 5.
No	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.
6	PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY REGULATING VALVE ACTUATOR POSITION SENSOR MALFUNCTION • Inspect the regulating valve actuator position sensor. (See REGULATING VALVE ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2]) • Is the regulating valve actuator position sensor normal?	Yes	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.
No	Inspect the related wiring harnesses and connectors. • Repair or replace the malfunctioning location. Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 5.
7	PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR MALFUNCTION • Inspect the variable turbine geometry turbocharger actuator position sensor. (See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2]) • Is the variable turbine geometry turbocharger actuator position sensor normal?	Yes	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.
No	Inspect the related wiring harnesses and connectors. • Repair or replace the malfunctioning location. Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 5.

Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure

• Step 1

― Perform the inspection of piping for the intake air system.

• Steps 2 to 4

― Perform inspection of each separate part.

• Steps 5 to 6

― Verify that the primary malfunction is resolved and there are no other malfunctions.

Step

Inspection

Results

Action

1

PURPOSE: INSPECT VACUUM PIPING AND POSITIVE PRESSURE PIPING OF COMPRESSOR BYPASS SOLENOID VALVE

•  Inspect the vacuum piping and positive pressure piping of the compressor bypass solenoid valve.
(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

•  Is there hose leakage or damage in the vacuum piping and positive pressure piping?

Yes

Repair or replace the malfunctioning location, then go to Step 5.

No

Go to the next step.

2

PURPOSE: INSPECT COMPRESSOR BYPASS SOLENOID VALVE

•  Inspect the compressor bypass solenoid valve.
(See COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2])

•  Is the compressor bypass solenoid valve normal?

Yes

Go to the next step.

No

Replace the compressor bypass solenoid valve, then go to Step 5.

(See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

3

PURPOSE: INSPECT REGULATING VALVE ACTUATOR

•  Inspect the regulating valve actuator.
(See REGULATING VALVE ACTUATOR INSPECTION [SKYACTIV-D 2.2])

•  Is the regulating valve actuator normal?

Yes

Go to the next step.

No

Replace the regulating valve actuator, then go to Step 5.

(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

4

PURPOSE: INSPECT VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR

•  Inspect the variable turbine geometry turbocharger actuator.
(See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR INSPECTION [SKYACTIV-D 2.2])

•  Is the variable turbine geometry turbocharger actuator normal?

Yes

Go to the next step.

No

Replace the variable turbine geometry turbocharger actuator, then go to Step 5.

(See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

5

PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION

•  Reconnect all disconnected connectors and hoses.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)])

•  Implement the repeatability verification procedure.
(See Repeatability Verification Procedure)

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)])

•  Is DTC P02CA:00 displayed?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

No

Go to the next step.

6

PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

DTC troubleshooting completed.
