FUEL TANK REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m2801600

Warning

• Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

― Fuel may cause irritation if it comes in contact with skin and eyes.

― If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

• A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.

Caution

• Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

2WD

1. Level the vehicle.

2. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3. Drain the fuel. (See FUEL DRAINING PROCEDURE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

4. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

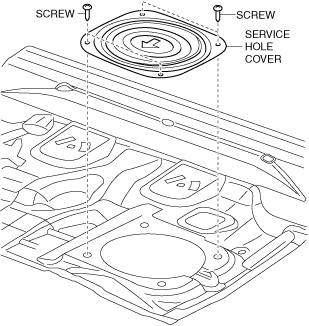

5. Remove the service hole cover.

ac5uuw00000394

6. Disconnect the following parts:

• Fuel pump unit connector

• Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

7. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

8. Disconnect the HO2S connector.

9. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

10. Remove in the order indicated in the table.

11. Install in the reverse order of removal.

12. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

ac5wzw00013590

1

Joint hose

(See Joint hose installation note (2WD).)

2

Fuel tank strap

3

Breather hose

(See Breather hose installation note (2WD).)

4

Evaporative hose

(See Evaporative hose installation note (2WD).)

5

Fuel pump unit

(See FUEL PUMP UNIT REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

6

Fuel tank

(See Fuel tank removal note (2WD).)

7

Fuel tank insulator

(See Fuel tank insulator removal note (2WD).)

Fuel tank insulator removal note (2WD)

Note

• The fuel tank insulator are installed using rivets.

1. Push out the mandrel using a hammer and punch (2—2.8 mm {0.08—0.11 in} diameter).

ac5wzw00002710

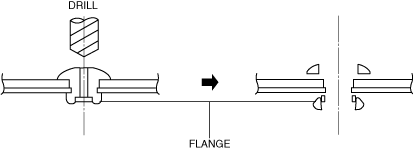

2. Remove the flange using a drill (5 mm {0.20 in} drill bit).

ar8uuw00001479

Fuel tank removal note (2WD)

1. Disconnect the breather hose from the fuel-filler pipe.

2. Disconnect the evaporative hose from the check valve.

3. Remove the following parts as single unit.

• Breather hose

• Evaporative hose

• Fuel pump unit

• Fuel tank

4. Remove the fuel tank.

Evaporative hose installation note (2WD)

1. Install the evaporative hose as shown in the figure.

ac5uuw00003208

Breather hose installation note (2WD)

1. Install the breather hose as shown in the figure.

Fuel tank side

ac5uuw00003206

Fuel-filler pipe side

ac5wzw00013704

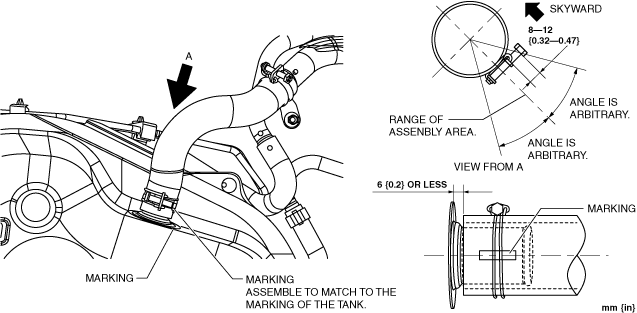

Joint hose installation note (2WD)

1. Install the joint hose as shown in the figure.

Fuel tank side

ac5uuw00000398

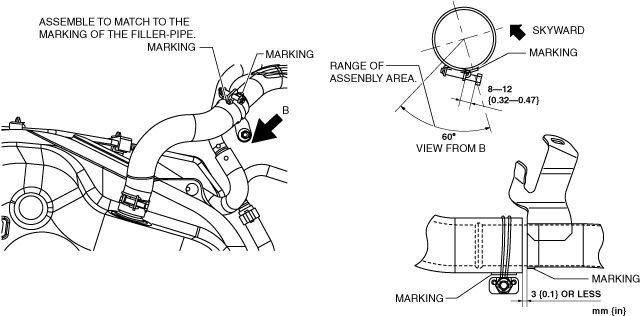

Fuel-filler pipe side

ac5wzw00013080

4WD

1. Level the vehicle.

2. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3. Drain the fuel. (See FUEL DRAINING PROCEDURE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

4. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

5. Remove the service hole cover.

Main side

ac5uuw00000394

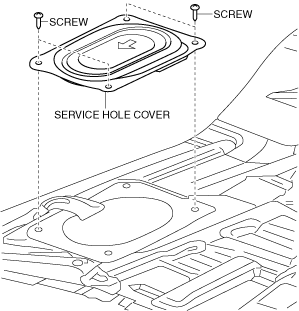

Sub side

ac5uuw00000402

6. Disconnect the following parts:

Main side

• Fuel pump unit connector

• Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Sub side

• Fuel gauge sender unit (sub) connector

7. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

8. Disconnect the HO2S connector.

9. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

10. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

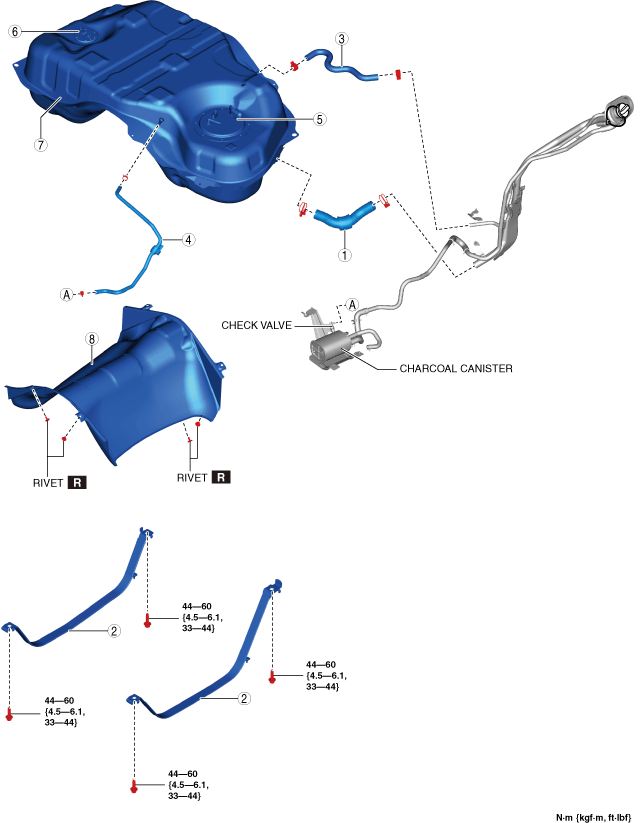

11. Remove in the order indicated in the table.

12. Install in the reverse order of removal.

13. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

ac5wzw00013591

1

Joint hose

(See Joint hose installation note (4WD).)

2

Fuel tank strap

3

Breather hose

(See Breather hose installation note (4WD).)

4

Evaporative hose

(See Evaporative hose installation note (4WD).)

5

Fuel pump unit

(See FUEL PUMP UNIT REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

6

Fuel gauge sender unit (sub)

(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

7

Fuel tank

(See Fuel tank removal note (4WD).)

8

Fuel tank insulator

(See Fuel tank insulator removal note (4WD).)

Fuel tank insulator removal note (4WD)

Note

• The fuel tank insulator are installed using rivets.

1. Push out the mandrel using a hammer and punch (2—2.8 mm {0.08—0.11 in} diameter).

ac5wzw00002710

2. Remove the flange using a drill (5 mm {0.20 in} drill bit).

ar8uuw00001479

Fuel tank removal note (4WD)

1. Disconnect the breather hose from the fuel-filler pipe.

2. Disconnect the evaporative hose from the check valve.

3. Remove the following parts as single unit.

• Breather hose

• Evaporative hose

• Fuel pump unit

• Fuel tank

4. Remove the fuel tank.

Evaporative hose installation note (4WD)

1. Install the evaporative hose as shown in the figure.

ac5uuw00003208

Breather hose installation note (4WD)

1. Install the breather hose as shown in the figure.

Fuel tank side

ac5uuw00003206

Fuel-filler pipe side

ac5wzw00013704

Joint hose installation note (4WD)

1. Install the joint hose as shown in the figure.

Fuel tank side

ac5uuw00000398

Fuel-filler pipe side

ac5wzw00013080
