EMISSION SYSTEM [SKYACTIV-G 2.5T]

id0116q4110100


Outline

•  Purifies contaminants (CO, HC, NOx) in the exhaust gas, blow-by gas, and evaporative gas exhausted from the vehicle.

Structural

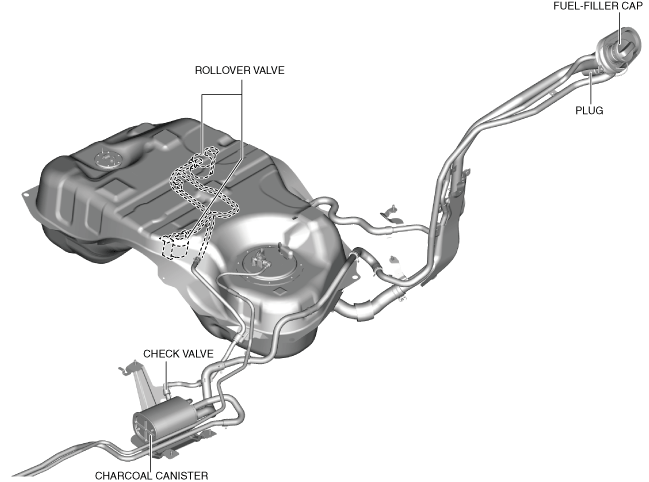

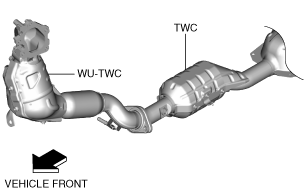

Structural view

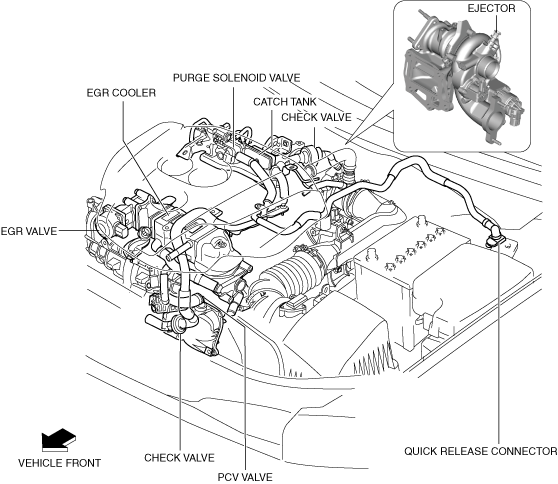

Engine compartment side

ac9uun00002819
ac9uun00002821
ac5wzn00005272

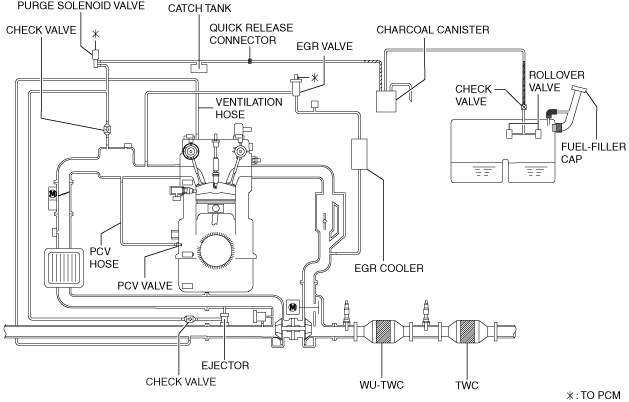

System diagram

ac5wzn00005273


Vacuum hose routing diagram

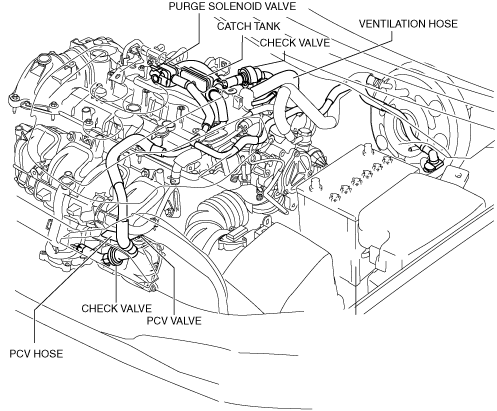

L.H.D.

ac9uun00002828

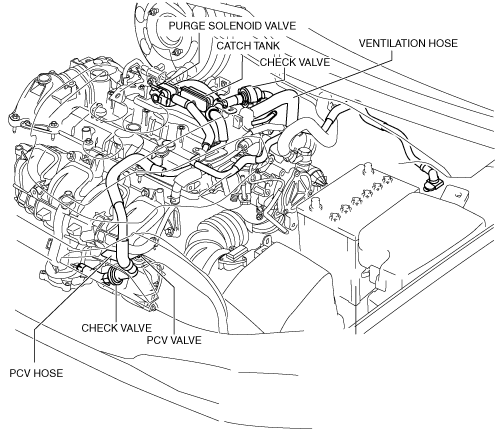

R.H.D.

ac9wzn00001726

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5T].)
Catalytic converter
(See CATALYTIC CONVERTER [SKYACTIV-G 2.5T].)
Exhaust gas recirculation system
(See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-G 2.5T].)
EGR cooler
(See EGR COOLER [SKYACTIV-G 2.5T].)
EGR valve
(See EGR VALVE [SKYACTIV-G 2.5T].)
Exhaust gas pressure sensor
(See EXHAUST GAS PRESSURE SENSOR [SKYACTIV-G 2.5T].)
Positive crankcase ventilation system
(See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.5T].)
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.5T].)
Evaporative emission control system
(See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.5T].)

Ejector
(See EJECTOR [SKYACTIV-G 2.5T].)
Purge solenoid valve
(See PURGE SOLENOID VALVE [SKYACTIV-G 2.5T].)
Catch tank
(See CATCH TANK [SKYACTIV-G 2.5T].)
Charcoal canister
(See CHARCOAL CANISTER [SKYACTIV-G 2.5T].)
Fuel-filler cap
(See FUEL-FILLER CAP [SKYACTIV-G 2.5T].)
Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 2.5T].)
Check valve (emission system)
(See CHECK VALVE (EMISSION SYSTEM) [SKYACTIV-G 2.5T].)
Quick release connector (emission system)
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.5T].)
