EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0116q4803700

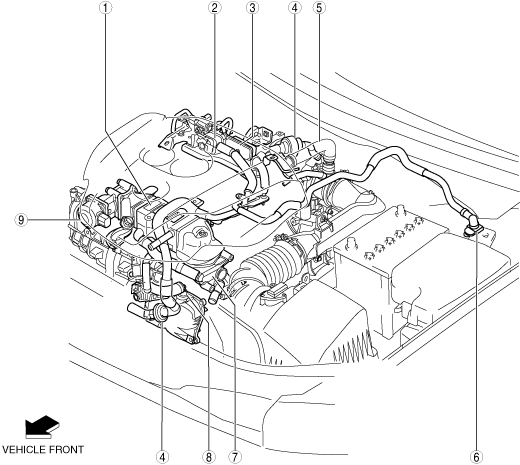

Engine Compartment Side

ac9uuw00009297

1	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See EGR COOLER INSPECTION [SKYACTIV-G 2.5T].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T].)
3	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CATCH TANK INSPECTION [SKYACTIV-G 2.5T].)
4	Check valve (See CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CHECK VALVE (EMISSION SYSTEM) INSPECTION [SKYACTIV-G 2.5T].)
5	Ventilation hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7	EGR pipe (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
8	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 2.5T].)
9	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See EGR VALVE INSPECTION [SKYACTIV-G 2.5T].)

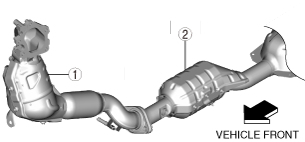

Exhaust System Side

ac5uuw00010515

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Fuel Tank Side

ac5uuw00007002

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5T].)
2	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
3	Plug (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5T].)
5	Check valve (See CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CHECK VALVE (EMISSION SYSTEM) INSPECTION [SKYACTIV-G 2.5T].)
