SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R]

id0516cb160900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(3)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

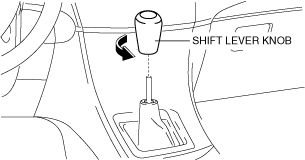

(4)  Shift lever knob

ac5wzw00004633

(5)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(6)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Disconnect the wiring harness clip from the shift lever.

ac5uuw00006546

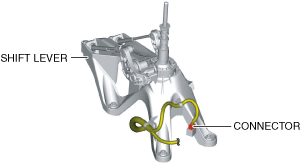

4.  Disconnect the connector from shift lever as shown in the figure.

ac5uuw00006547

5.  Disconnect the control cable end from the shift lever. (See CONTROL CABLE REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

6.  Remove the nuts.

ac5uuw00006548

7.  Remove the shift lever.

8.  Install in the reverse order of removal.
