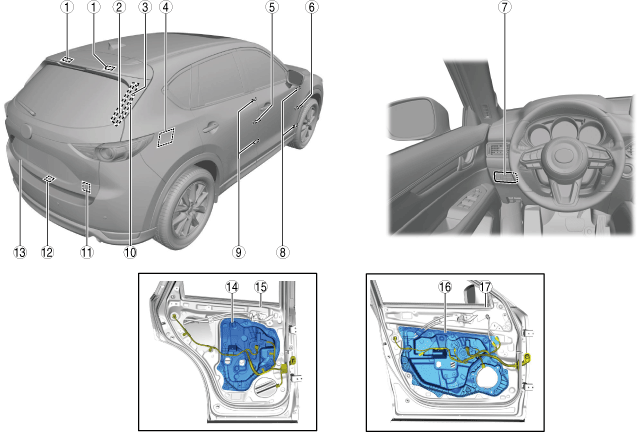

DOOR AND LIFTGATE LOCATION INDEX

id091100520000

ac5wzw00011794

1	Liftgate hinge (See LIFTGATE HINGE REMOVAL/INSTALLATION.)
2	Stay damper (without power liftgate (PLG)) (See STAY DAMPER DISPOSAL.)
3	Power liftgate (PLG) drive unit (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) DRIVE UNIT REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) DRIVE UNIT INSPECTION.) (See STAY DAMPER DISPOSAL.)
4	Power liftgate (PLG) control module (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) CONTROL MODULE INSPECTION.) (See DOOR AND LIFTGATE PERSONALIZATION FEATURES SETTING PROCEDURE.) (See POWER LIFTGATE (PLG) INITIALIZATION PROCEDURE.) (See POWER LIFTGATE (PLG) OPERATION RECORD.)
5	Rear door checker (See REAR DOOR CHECKER REMOVAL/INSTALLATION.)
6	Front door checker (See FRONT DOOR CHECKER REMOVAL/INSTALLATION.)
7	Power liftgate (PLG) front switch (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) FRONT SWITCH REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) FRONT SWITCH INSPECTION.)
8	Front door hinge (See FRONT DOOR HINGE REMOVAL/INSTALLATION.)
9	Rear door hinge (See REAR DOOR HINGE REMOVAL/INSTALLATION.)
10	Power liftgate (PLG) touch sensor (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) TOUCH SENSOR REMOVAL/INSTALLATION.)
11	Power liftgate (PLG) buzzer (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) BUZZER REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) BUZZER INSPECTION.)
12	Power liftgate (PLG) rear switch (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) REAR SWITCH INSPECTION.)
13	Liftgate (See LIFTGATE REMOVAL/INSTALLATION.) (See LIFTGATE ADJUSTMENT.)
14	Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION.)
15	Rear door (See REAR DOOR REMOVAL/INSTALLATION.) (See DOOR ADJUSTMENT.)
16	Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
17	Front door (See FRONT DOOR REMOVAL/INSTALLATION.) (See DOOR ADJUSTMENT.)
