REAR COMBINATION LIGHT SHORT-CORD INSPECTION

id091800025200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

1.  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

2.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Bass-box (with Bose®)(See BASS-BOX REMOVAL/INSTALLATION.)

4.  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

5.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

6.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear combination light short-cord. (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.)

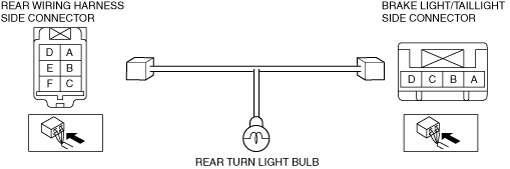

5.  Verify that the continuity between the rear combination light short-cord terminals is as indicated in the table.

ac5wzw00011003

ac5wzw00011004

•  If not as indicated in the table, replace the rear turn light bulb or the rear combination light short-cord. (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
