TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION
id092000014300
L.H.D.
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (3) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (4) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (5) Tuner and amp unit (TAU) component (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)
-

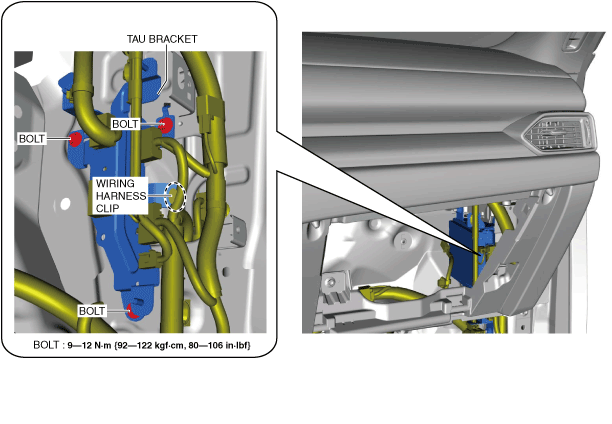

3. Detach the wiring harness clip.
4. Remove the bolts.
5. Remove the TAU bracket.
6. Install in the reverse order of removal.
R.H.D.
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (3) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (4) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (5) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (6) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (7) Tuner and amp unit (TAU) component (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)
-
3. Detach the wiring harness clip.
4. Remove the bolts.
5. Remove the TAU bracket.
6. Install in the reverse order of removal.
