CENTER ROOF ANTENNA INSPECTION

id092000801700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Tonneau cover (with tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(4)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  Assist handle (rear) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(10)  Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.)

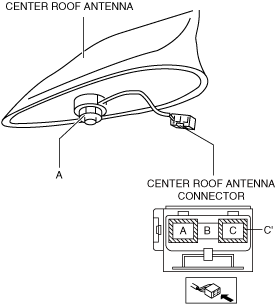

3.  Verify that the continuity between the center roof antenna terminals is as indicated in the table.

ac5wzw00010236

•  If the continuity is not as indicated in the table, verify the installation condition of the center roof antenna installation nut.

ac9wzw00004312

•  If the installation condition of the center roof antenna installation nut is normal, replace the center roof antenna. (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.)
