ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION

id092000812900

Replacement part

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Tonneau cover (with tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(4)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  Assist handle (rear) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

3.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

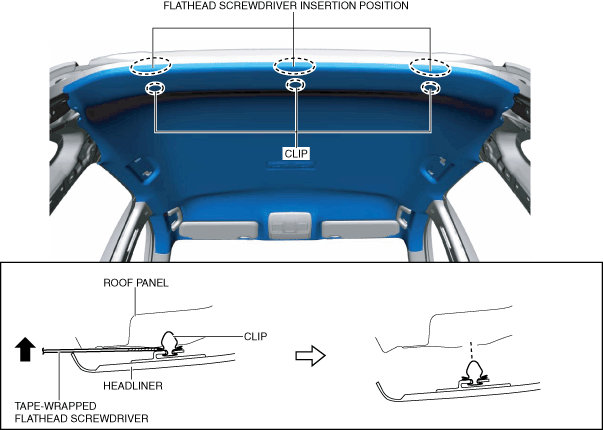

ac5wzw00009607

4.  Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and detach the clips from the roof panel.

5.  Partially peel back the headliner.

Caution

•  Peeling back the headliner without supporting it may cause the headliner to bend excessively and crease. Peel back the headliner while supporting it.

6.  Disconnect the connector.

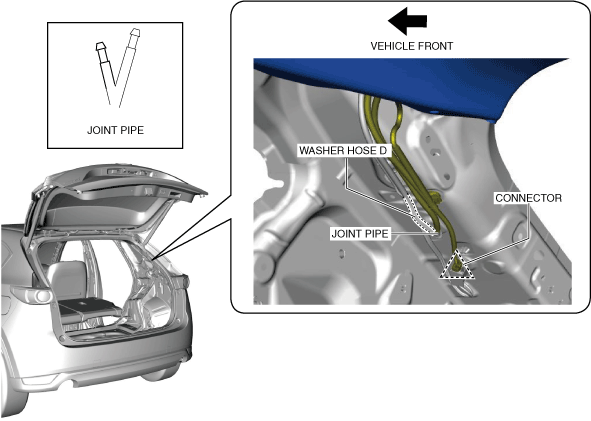

ac5wzw00012845

7.  Disconnect rear washer hose D from the joint pipe.

8.  Disconnect the connector.

ac5wzw00010502

9.  Remove the bolt.

10.  Remove the wiring harness clips.

11.  Disconnect rear washer hose D.

ac5uuw00006631

12.  Partially peel the liftgate grommets in the direction of the arrows shown in the figures, and remove the liftgate grommets from the inner liftgate grommets.

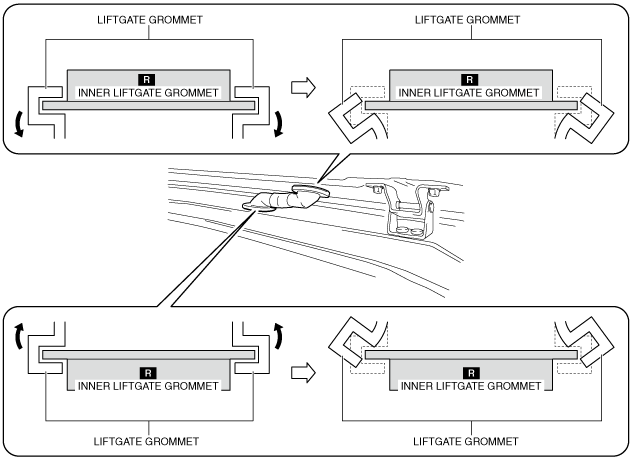

ac5wzw00009590

13.  While pressing the inner liftgate grommet tab in the order of arrows (1) and (2) using the remover tool, remove each inner liftgate grommet from the liftgate and the body. (See Liftgate Grommet Installation Note.)

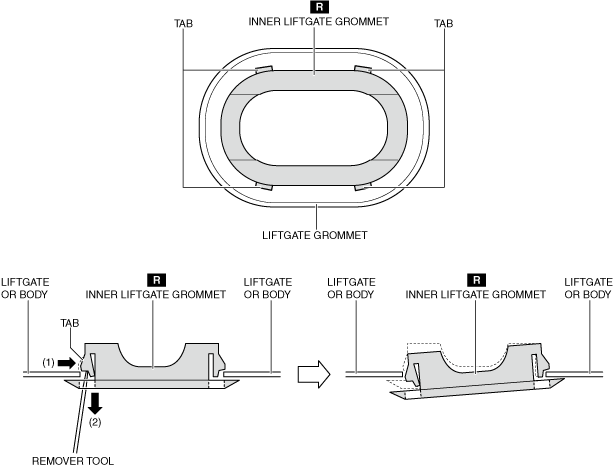

ac5uuw00006633

14.  Remove antenna feeder No.2.

15.  Install in the reverse order of removal.

Liftgate Grommet Installation Note

1.  Install the liftgate grommet using the following procedure.

(1)  Engage a new inner liftgate grommet as shown in the figure.

Caution

•  If the inner liftgate grommet is removed once the attaching ability of the tabs weaken and it may cause leakage. Always replace it with a new one if it is removed once.

ac5uuw00006634

(2)  Install the inner liftgate grommet to the liftgate grommet.

Caution

•  Install the inner liftgate grommet so that there is no gap between the liftgate grommet and the inner liftgate grommet. Otherwise, it may cause water leakage.

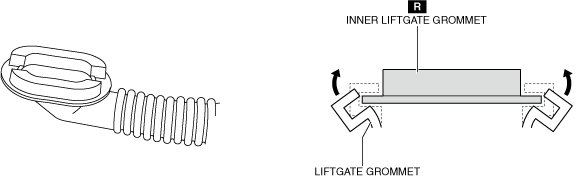

ac5uuw00006635

(3)  Move the inner liftgate grommet in the direction of the arrow shown in the figure and engage the tabs of the inner liftgate grommet on the liftgate side.

Caution

•  After installing the liftgate grommet, shake the inner liftgate grommet to verify that the tabs are securely engaged.

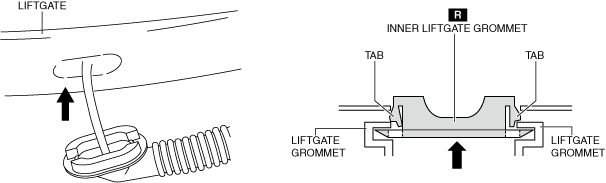

ac5uuw00006636
