DTC B10FD:11/B10FD:13/B10FD:87/B10FD:96 [SAS CONTROL MODULE]

id0802g6847100

System malfunction location	•  B10FD:11: Driver-side side air bag sensor circuit short to body ground or power supply •  B10FD:13: Driver-side side air bag sensor circuit open circuit •  B10FD:87: Signal reception error from driver-side side air bag sensor •  B10FD:96: Driver-side side air bag sensor internal malfunction
Detection condition	Warning •  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. •  Wiring harness between the driver-side side air bag sensor and SAS control module has a malfunction •  Driver-side side air bag sensor has a malfunction
Fail-safe	—
Possible cause	•  Driver-side side air bag sensor connector malfunction •  Short circuit to power supply or body ground in the wiring harness between the driver-side side air bag sensor and SAS control module •  Open circuit in the wiring harness between the driver-side side air bag sensor and SAS control module •  Driver-side side air bag sensor malfunction •  SAS control module malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR CONNECTOR Warning •  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Remove the driver-side B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver-side side air bag sensor connector. (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.) •  Inspect the driver-side side air bag sensor connector. (Corrosion, damage, and disconnected pins) •  Is there any malfunction of the driver-side side air bag sensor connector?	Yes	Replace the malfunctioning part, then go to Step 5.
		No	Go to the next step.
2	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR CIRCUIT FOR SHORT TO GROUND •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION.) •  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side front seat connector. (See FRONT SEAT REMOVAL/INSTALLATION.) •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side curtain air bag module connector. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) •  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side pre-tensioner seat belt connector. (See FRONT SEAT BELT REMOVAL/INSTALLATION.) •  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) •  Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.) •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  SAS control module terminal 1AD ―  SAS control module terminal 1AF Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and driver-side side air bag sensor. •  Is there continuity?	Yes	Replace the wiring harness for a possible short to ground, then go to Step 5.
		No	Go to the next step.

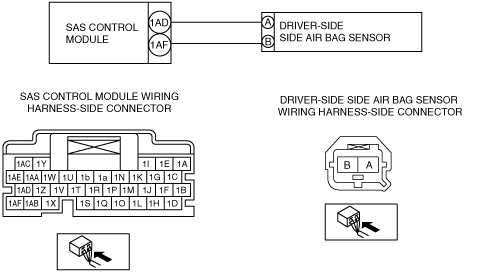

3	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR CIRCUIT FOR OPEN CIRCUIT •  Driver-side side air bag sensor and SAS control module connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side): ―  Driver-side side air bag sensor terminal A—SAS control module terminal 1AD ―  Driver-side side air bag sensor terminal B—SAS control module terminal 1AF Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and driver-side side air bag sensor. •  Is there continuity?	Yes	Go to the next step.
		No	Replace the wiring harness for a possible open circuit, then go to Step 5.
4	INSPECT DRIVER-SIDE SIDE AIR BAG SENSOR CIRCUIT FOR SHORT TO POWER SUPPLY •  Driver-side side air bag sensor and SAS control module connectors are disconnected. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off or on). •  Measure the voltage at the following terminals (wiring harness-side): ―  SAS control module terminal 1AD ―  SAS control module terminal 1AF Note •  Measure the voltage while shaking the wiring harness between the SAS control module and driver-side side air bag sensor. •  Is the voltage 0V?	Yes	Replace the driver-side side air bag sensor, then go to the next step. (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.)
		No	Replace the wiring harness for a possible short to power supply, then go to the next step.
5	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Switch the ignition to off. •  Disconnect the negative battery cable and wait for 1min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Connect the SAS control module connectors. •  Reconnect all disconnected connectors. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off or on). •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE].) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE].) •  Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
		No	DTC troubleshooting completed.
