ROOF CARRIER BRACKET REMOVAL/INSTALLATION
id091600801700
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (8) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (9) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (11) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (12) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (13) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (14) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (15) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (16) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (17) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

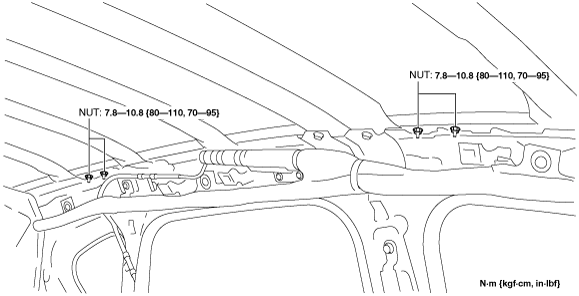

3. Remove nuts.
4. Remove the roof carrier brackets.
5. Install in the reverse order of removal.
-
Note
-
• Install the roof carrier bracket so that the arrow on it faces inward.
