FLOOR COVERING REMOVAL/INSTALLATION

id091700803000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(6)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(7)  Audio amplifier (with Bose^®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)

(8)  Lower anchor of the front seat belt (without lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(11)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(12)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(13)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(14)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(15)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(16)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(17)  Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)

(18)  SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

(19)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

3.  Disconnect the service plug. (with i-ELOOP) (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

4.  Remove the DC-DC converter (i-ELOOP) (with i-ELOOP) (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)

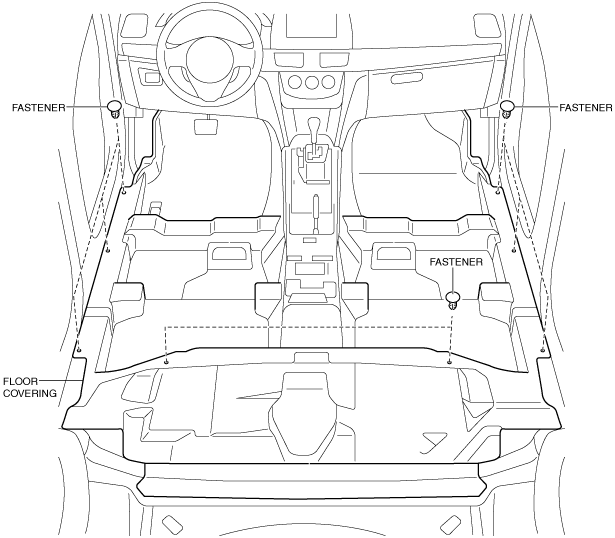

5.  Remove fasteners.

ac5uuw00003749

6.  Take the floor covering out from the opened door.

7.  Install in the reverse order of removal. (See Floor Covering Installation Note.)

Floor Covering Installation Note

Caution

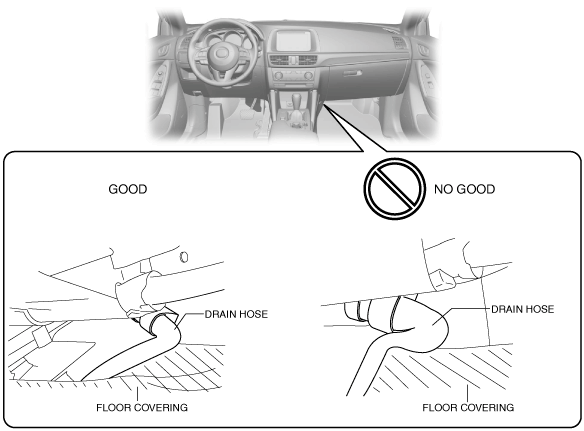

•  When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.

1.  Place the floor covering with it aligned to the body.

2.  Before installing the side wall, verify that the A/C unit drain hose is not deformed.

ac5uuw00003689
