SEATS LOCATION INDEX

id091300800100

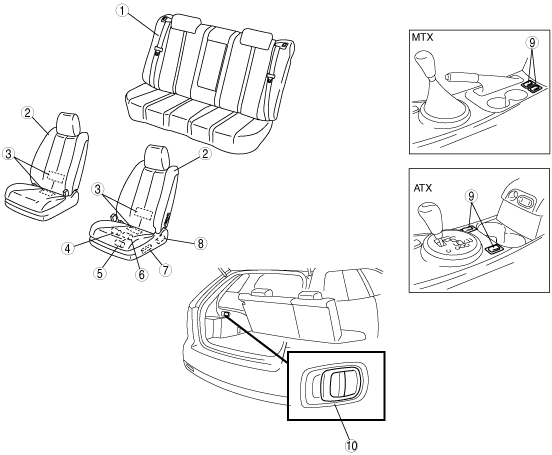

L.H.D.

acxaaw00001356

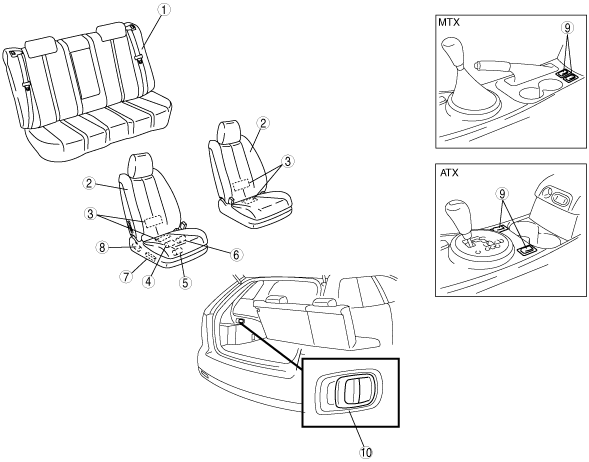

R.H.D.

acxaaw00001357

1	Rear seat (See REAR SEAT REMOVAL/INSTALLATION.) (See REAR SEAT DISASSEMBLY/ASSEMBLY.)
2	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.) (See FRONT SEAT DISASSEMBLY/ASSEMBLY.)
3	Seat warmer unit (See SEAT WARMER UNIT INSPECTION.)
4	Rear tilt motor (See REAR TILT MOTOR INSPECTION.)
5	Slide motor (See SLIDE MOTOR INSPECTION.)
6	Front tilt motor (See FRONT TILT MOTOR INSPECTION.)
7	Power seat switch (See POWER SEAT SWITCH INSPECTION.)
8	Recliner motor (See RECLINER MOTOR INSPECTION.)
9	Seat warmer switch (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.) (See SEAT WARMER SWITCH INSPECTION.)
10	Remote handle (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION.)
