DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.5]

id0121a1100200

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

4. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

5. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

ac5uuw00006352

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

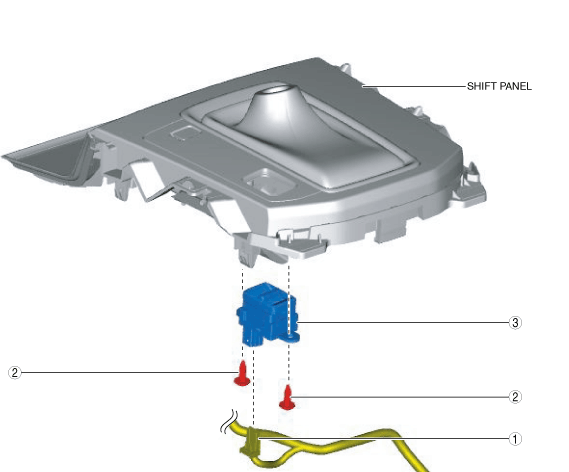

ac5uuw00006353

1

Connector

2

Screw

3

Drive selection switch
