AIRFLOW MODE MAIN LINK REMOVAL

id071100811000

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Detach the clip.

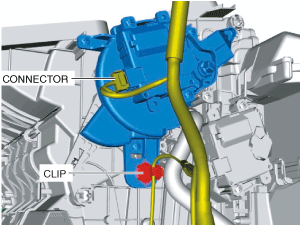

ac8wzw00003410

4.  Disconnect the connector.

5.  Remove the screws.

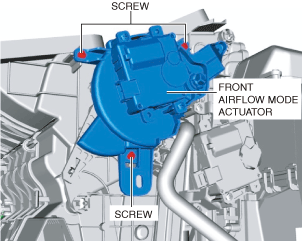

ac8wzw00003411

6.  Remove the front airflow mode actuator.

7.  Remove the airflow mode main link.

ac8wzw00003412

8.  Remove the screws.

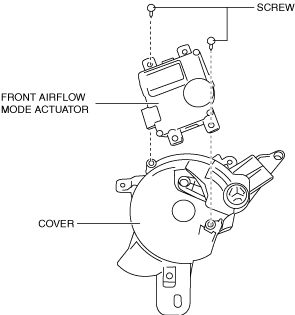

ac8wzw00003413

9.  Remove the front airflow mode actuator from the cover.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Detach the clip.

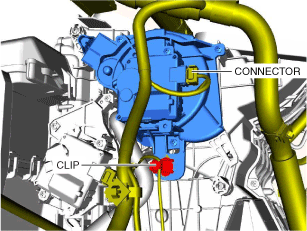

ac9wzw00003685

4.  Disconnect the connector.

5.  Remove the screws.

ac9wzw00003686

6.  Remove the front airflow mode actuator.

7.  Remove the airflow mode main link.

ac9wzw00003687

8.  Remove the screws.

ac9wzw00003688

9.  Remove the front airflow mode actuator from the cover.
