AIRFLOW MODE MAIN LINK INSTALLATION


id071100811100


L.H.D.

1.  Move the front airflow mode links to the positions shown in the figure.

ac8wzw00003414

2.  Install the airflow mode main link in the direction shown in the figure. (See Airflow mode main link installation note.)

ac8wzw00003415

3.  Move the airflow mode main link in the direction shown in the figure and verify that it rotates smoothly.

ac8wzw00003416

4.  Align airflow mode link tab A of the cover with the link groove on the airflow mode main link side, airflow mode link tab B of the cover with the link groove on the front A/C unit side as shown in the figure, and install the cover.

Note
•  The airflow mode main link is not secured, therefore hold it with your hand so that it does not detach.
ac8wzw00003417

5.  Verify that the airflow mode link tabs are engaged with the link grooves.

6.  Install the screws.

ac8wzw00003418

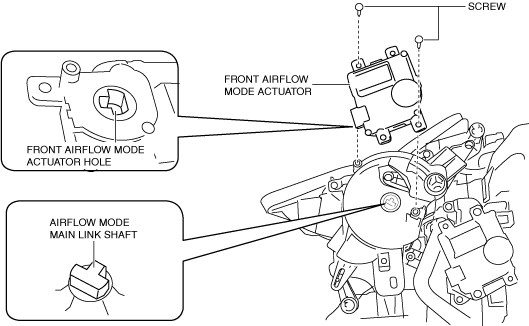

7.  Align the airflow mode main link shaft with the shape of the front airflow mode actuator hole, and install the front airflow mode actuator.

ac8wzw00003419

8.  Install the screws.

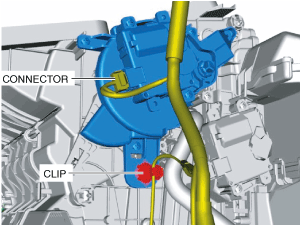

9.  Connect the connector.

ac8wzw00003420

10.  Install the clip.

11.  Install the following parts:

(1)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
(2)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(5)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(7)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

12.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

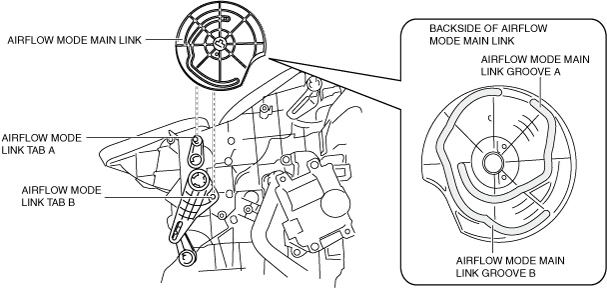

Airflow mode main link installation note

1.  When installing the airflow mode main link, verify that airflow mode link tab A is installed in airflow mode main link groove A and airflow mode link tab B is installed in airflow mode main link groove B.

ac8wzw00003421


R.H.D.

1.  Move the front airflow mode links to the positions shown in the figure.

ac9wzw00003689

2.  Install the airflow mode main link in the direction shown in the figure. (See Airflow mode main link installation note.)

ac9wzw00003690

3.  Move the airflow mode main link in the direction shown in the figure and verify that it rotates smoothly.

ac8wzw00003222

4.  Align airflow mode link tab A of the cover with the link groove on the airflow mode main link side, airflow mode link tab B of the cover with the link groove on the front A/C unit side as shown in the figure, and install the cover.

Note
•  The airflow mode main link is not secured, therefore hold it with your hand so that it does not detach.
ac9wzw00003692

5.  Verify that the airflow mode link tabs are engaged with the link grooves.

6.  Install the screws.

ac9wzw00003693

7.  Align the airflow mode main link shaft with the shape of the front airflow mode actuator hole, and install the front airflow mode actuator.

ac9wzw00003694

8.  Install the screws.

9.  Connect the connector.

ac9wzw00003695

10.  Install the clip.

11.  Install the following parts:

(1)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
(2)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(5)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(7)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

12.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)


Airflow mode main link installation note

1.  When installing the airflow mode main link, verify that airflow mode link tab A is installed in airflow mode main link groove A and airflow mode link tab B is installed in airflow mode main link groove B.

ac9wzw00004336
