CABIN TEMPERATURE SENSOR INSPECTION

id074000807700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(5)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

4.  Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminals A and B.

am3zzw00015132

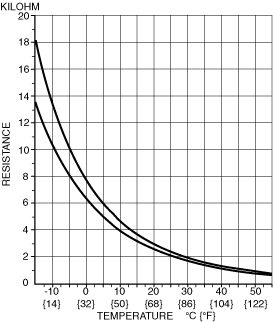

•  If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

ac9wzw00004092
