KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400514300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

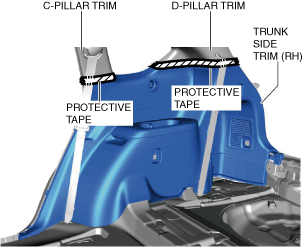

2.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00001039

3.  Remove the following parts.

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket(RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4.  Remove the cover.

ac8wzw00001040

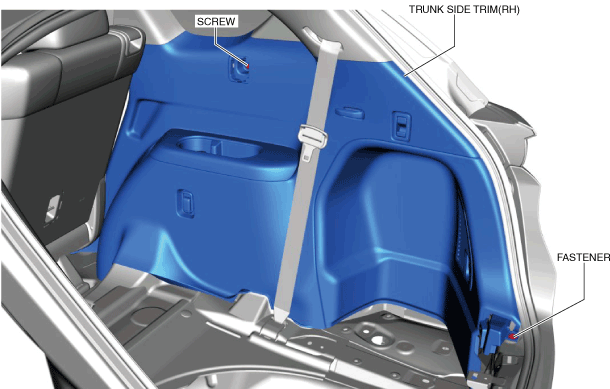

5.  Remove the screw.

ac8wzw00001041

6.  Remove the fastener.

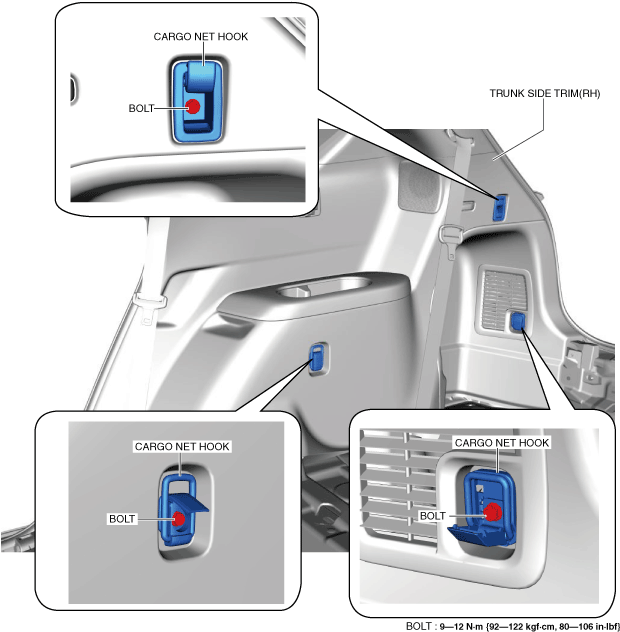

7.  Open the cargo net hook cover and remove the bolt.

ac8wzw00001042

8.  Remove the cargo net hooks.

9.  Peel back the seaming welt and weatherstrip.

ac8wzw00001043

10.  Move the trunk side trim (RH) in the order of arrows (1), (2), shown in the figure to detach the body panel from the hooks.

ac8wzw00001044

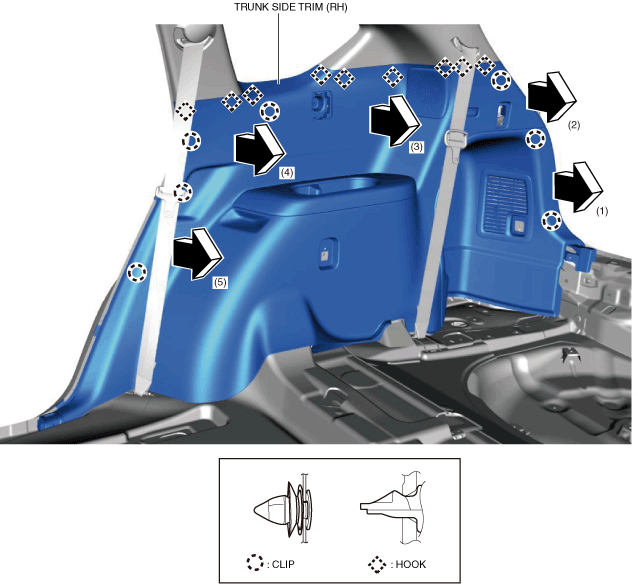

11.  Move the trunk side trim (RH) in the order of arrows (1), (2), (3), (4), and (5) shown in the figure while detaching the clips and hooks.

ac8wzw00001045

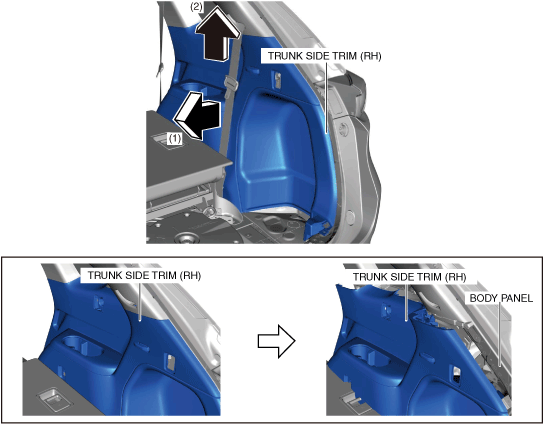

12.  Move the trunk side trim (RH) in the order of arrows (1) and (2) shown in the figure, pull away the trunk side trim (RH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (RH).

ac8wzw00001046

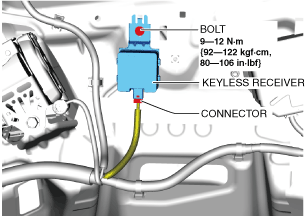

13.  Disconnect the connector.

ac8wzw00000058

14.  Remove the bolt.

15.  Remove the keyless receiver.

16.  Install in the reverse order of removal.
