REQUEST SWITCH REMOVAL/INSTALLATION


id091400515200


Driver's Door/Passenger's Door

Note

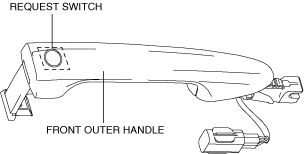

•  The request switch cannot be removed as a single unit because it is built into the front outer handle. If the request switch is replaced, replace the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
ac5wzw00000263

Liftgate

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
(4)  Power liftgate (PLG) rear switch (with power liftgate) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)
(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac8wzw00000065

4.  Using a rope, attach a guide line to the connector.

Note
•  Leave the guide line in the liftgate until the request switch is installed because it is used to install the request switch.
ac8wzw00000313

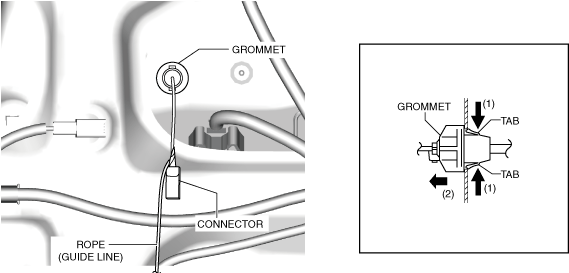

5.  While pressing the grommet tabs in the directions of arrows (1) shown in the figure, press them out in the direction of arrow (2) to detach them from the liftgate, and remove the grommet from the liftgate.

6.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac8wzw00000066

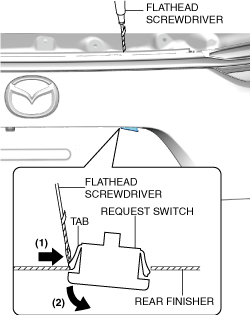

7.  While moving a tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and pressing the request switch tab, pull it in the direction of arrow (2) to detach it from the rear finisher.

8.  While moving a tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and pressing the request switch tab, pull it in the direction of arrow (2) to detach it from the rear finisher.

ac8wzw00000067

9.  Remove the request switch.

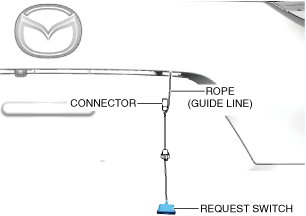

10.  Remove the guide line from the request switch.

ac8wzw00000314

11.  Install in the reverse order of removal.
