LIFTGATE LOWER TRIM REMOVAL/INSTALLATION

id091700803800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (with power liftgate system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

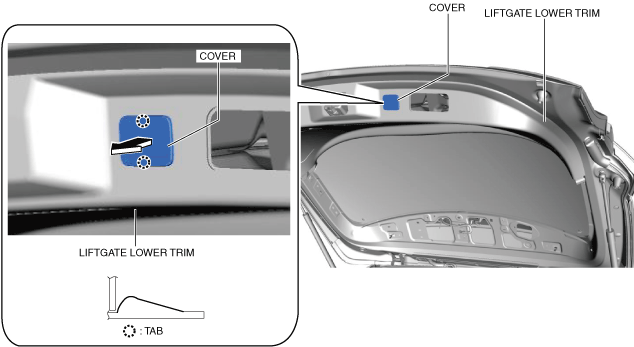

3.  Remove the cover in the direction of the arrow shown in the figure while detaching the tabs using a remover tool. (without power liftgate system)

ac8wzw00001758

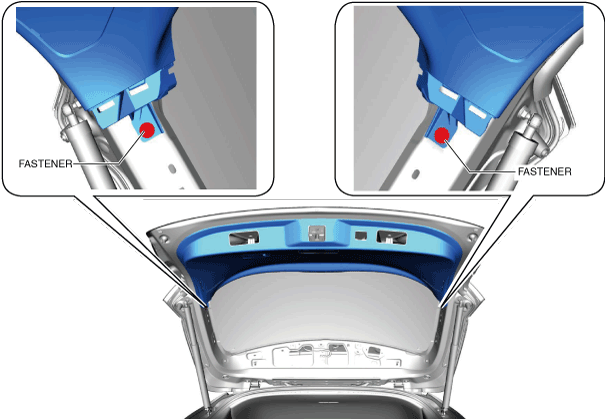

4.  Remove the fasteners.

ac8wzw00001759

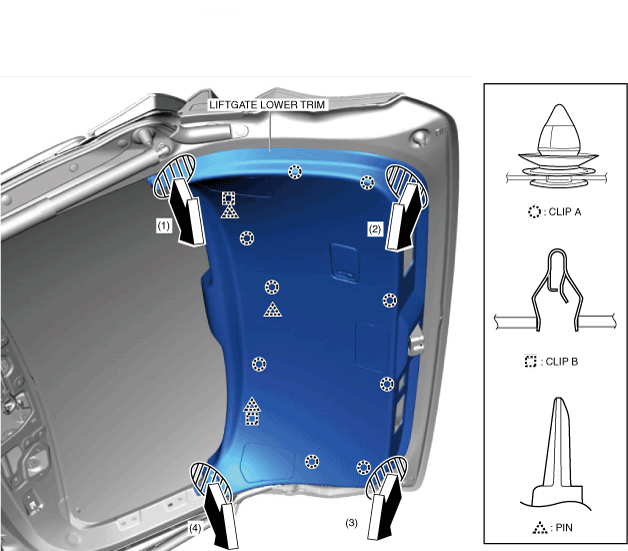

5.  Hold each shaded area and pull the liftgate lower trim in the order of arrows (1), (2), (3), and (4), and remove it while detaching clips A and B, and the pins.

ac8wzw00001760

6.  Disconnect the cargo compartment light connector.

Note

•  When replacing the liftgate lower trim, remove the cargo compartment light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.)

7.  Install in the reverse order of removal.
