THEFT-DETERRENT HORN REMOVAL/INSTALLATION

id091400517500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8ccw00000108

3.  Remove the following parts.

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket(RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4.  Remove the cover.

ac8ccw00000109

5.  Remove the screw.

ac8ccw00000110

6.  Remove the fastener.

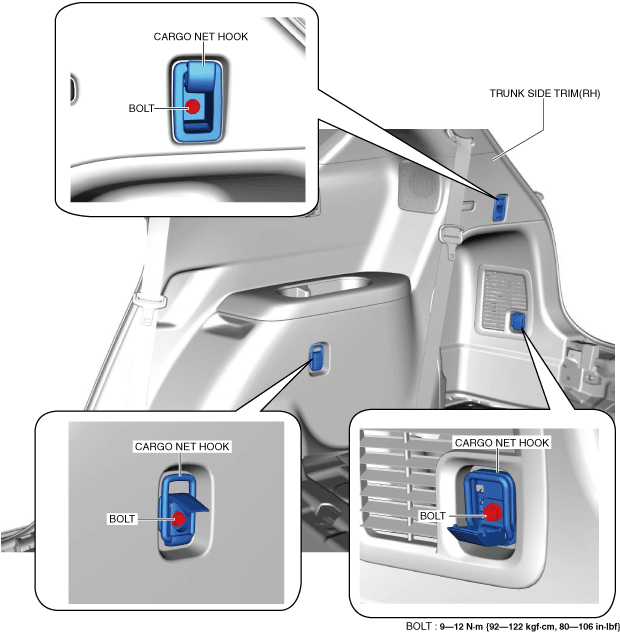

7.  Open the cargo net hook cover and remove the bolt.

ac8ccw00000111

8.  Remove the cargo net hooks.

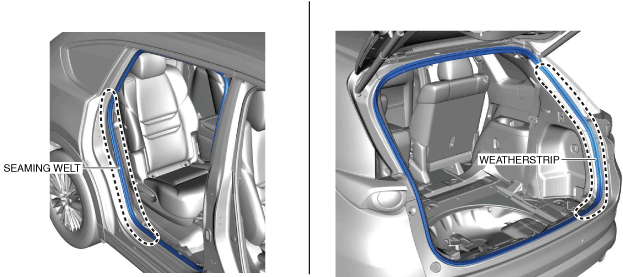

9.  Peel back the seaming welt and weatherstrip.

ac8ccw00000112

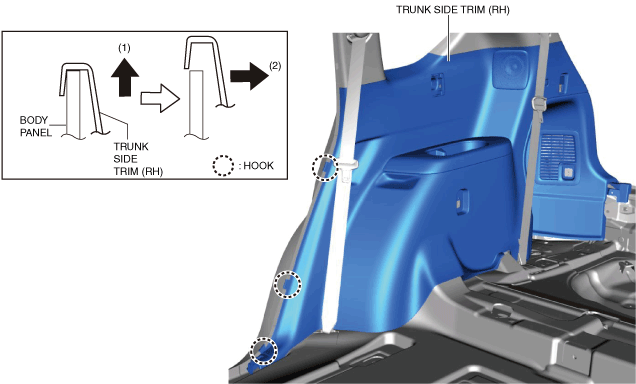

10.  Move the trunk side trim (RH) in the order of arrows (1), (2), shown in the figure to detach the body panel from the hooks.

ac8ccw00000113

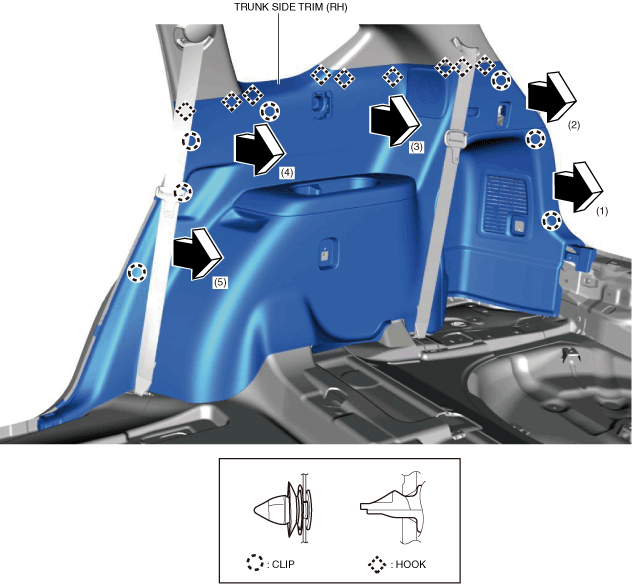

11.  Move the trunk side trim (RH) in the order of arrows (1), (2), (3), (4), and (5) shown in the figure while detaching the clips and hooks.

ac8ccw00000114

12.  Move the trunk side trim (RH) in the order of arrows (1) and (2) shown in the figure, pull away the trunk side trim (RH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (RH).

ac8ccw00000115

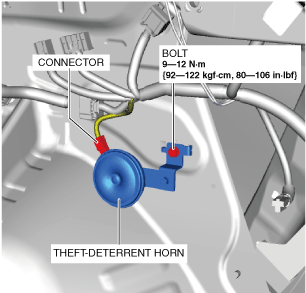

13.  Disconnect the connector.

ac8ccw00000116

14.  Remove the bolt.

15.  Remove the theft-deterrent horn.

16.  Install in the reverse order of removal.
