RADIATOR GRILLE REMOVAL/INSTALLATION

id091600468000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Active bonnet sensor wiring harness (See ACTIVE BONNET SENSOR WIRING HARNESS REMOVAL/INSTALLATION)

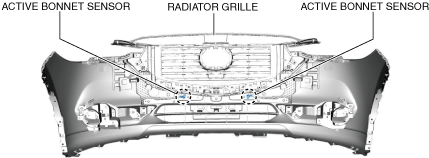

3.  Remove the active bonnet sensors. (See ACTIVE BONNET SENSOR REMOVAL/INSTALLATION)

ac8wzw00002162

4.  Remove the fasteners.

ac8wzw00002163

5.  Remove the screws.

6.  Detach the tabs.

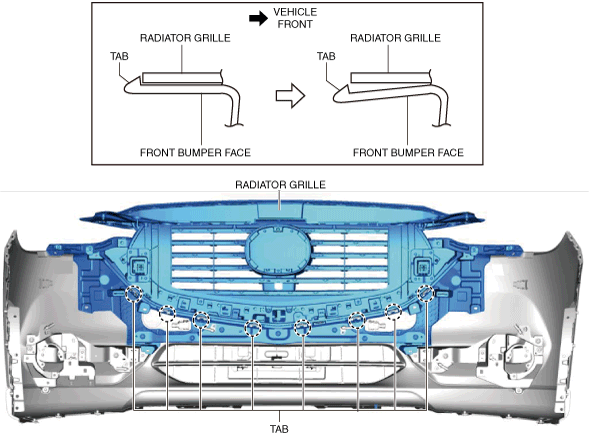

ac8wzw00002164

7.  Remove the radiator grille.

8.  Install in the reverse order of removal.

9.  Perform 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
