FRONT FOG LIGHT INSPECTION [LED TYPE]

id091800115525

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Partially peel back the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

3.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

4.  Remove the front fog light. (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

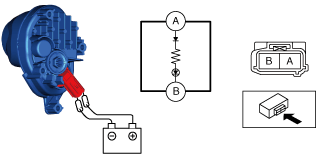

5.  Apply battery voltage to front fog light terminal A, and connect terminal B to ground.

ac5uuw00005577

6.  Verify that the front fog light is turned on.

•  If a front fog light does not turn on, replace it. (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)
